7.5KW Hydraulic-Driven External Clamp Cutting Bevel Machine

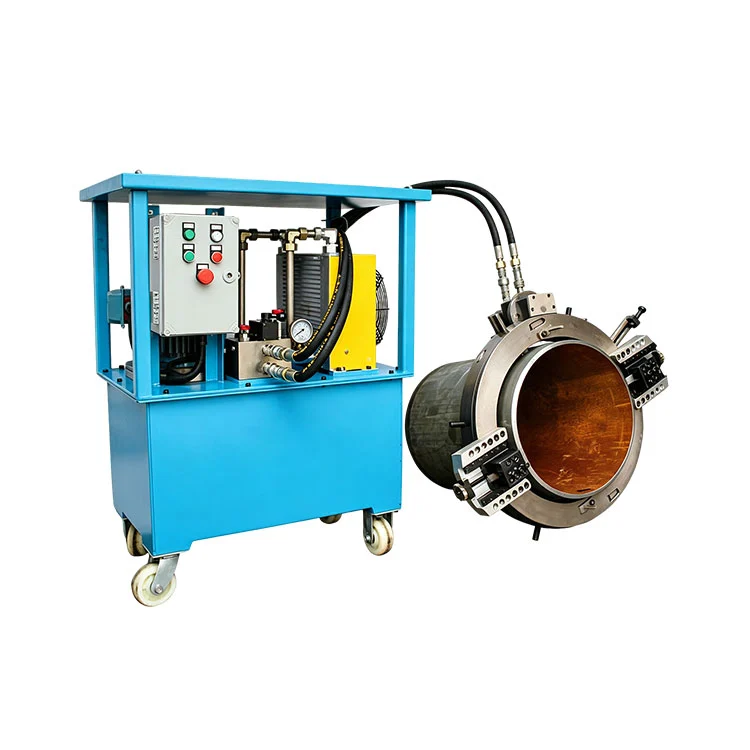

Combined with the HB-7.5 standard hydraulic power cart, the 7.5KW Hydraulic-Driven External Clamp Cutting Bevel Machine forms a complete pipe cutting and beveling system. Fitted with a 7.5 kW motor, Yuken fixed-displacement vane pump and a durable, highly-responsive cartridge valve control unit, this system is purpose-built for hydraulic pipe cutters and compatible with pipe-cutting equipment from domestic and international brands including WACHS, Hytek and Tritoo.

Product Features

Split Quick-Mount, Multi-Point Clamping

Built with a two-piece split-ring structure, the 7.5KW Hydraulic-Driven External Clamp Cutting Bevel Machine clamps directly to pipe outer surfaces. One single setup performs both cutting and beveling. Fast on-site installation and removal permits operation anywhere along the pipeline. Only one standard wrench is required for adjustment and secure locking.

Cold Machining, Versatile Bevel Profiles

Pure cold-cutting process retains the pipe's original material properties. The tool rotates against a stationary pipe, yielding distortion-free, burr-free cuts ideal for high-spec welding. Custom bevel geometries are supported for diverse pipe materials.

Wide-Range Compatibility, Broad-Spectrum Applications

Covers pipe diameters Φ10-2500 mm; select proper model according to pipe dimension. Processes pipelines, pressure vessels and steam-generator components. Fit for petrochemical, nuclear, pharmaceutical, boiler, food-processing, construction and emergency-repair projects, including off-grid field service.

High-Efficiency & Portable, Dependable Power Solutions

Automatic feed eliminates manual tuning for high throughput. Light-weight construction excels for large-bore on-site machining. Heavy-duty adjustable bearings together with reinforced base races ensure robust mechanical stability. Power choices: electric motor or combustion engine. Servo motor with plug-and-play quick connectors adapts to varied site conditions worldwide.

Technical Specifications

Introduction to 7.5 kW High-Efficiency Power Cart

The HB-7.5 Standard Hydraulic Power Cart is a cost-effective power unit for pipe cutters, carefully designed and manufactured based on years of market research and comprehensive user feedback.

Powered by a 7.5 kW motor, the system adopts a Yuken fixed-displacement vane pump and durable, highly-responsive cartridge valves for control.

Developed specifically for hydraulic pipe cutters, the HB-7.5 Standard Hydraulic Power Cart is compatible with pipe-cutting machines from domestic and international brands including WACHS, Hytek and Tritoo (USA).

Technical Parameters of 7.5KW High-Efficiency Power Vehicle

Cutting Range Selection Table

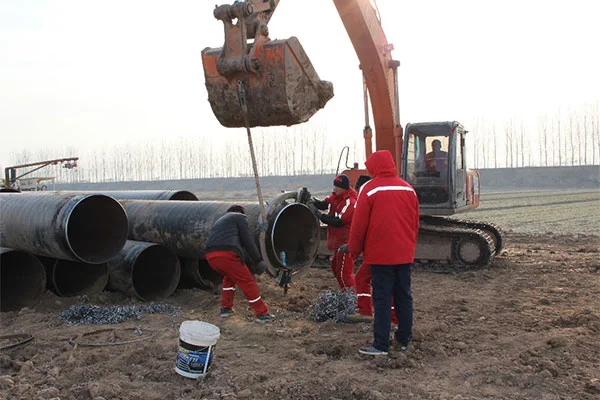

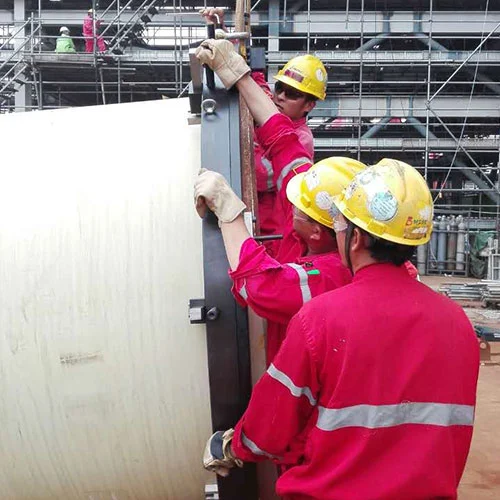

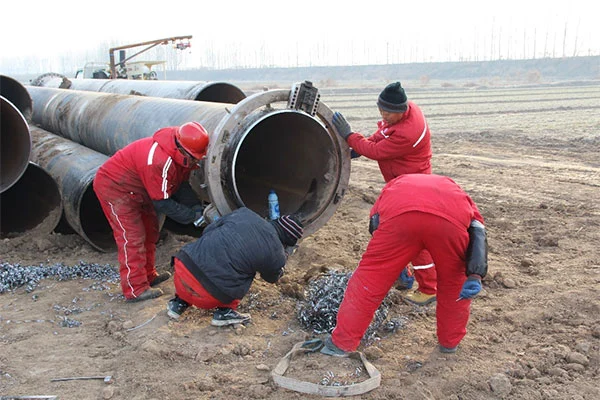

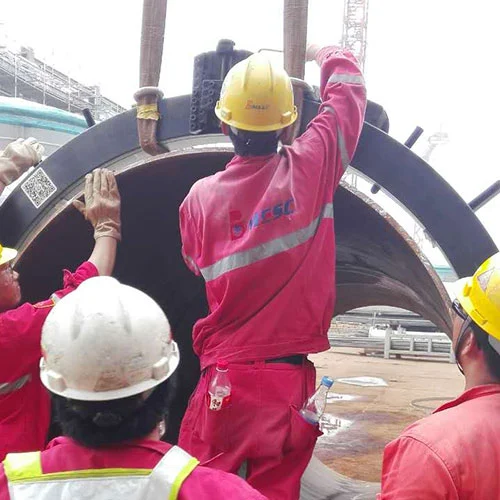

Engineering Case

FAQ

Q: What does the complete system consist of?

A: The full system comprises the 7.5KW Hydraulic-Driven External Clamp Cutting Bevel Machine main unit, HB-7.5 standard hydraulic power cart, together with high-pressure hoses and quick-coupling assemblies. The main machine performs pipe clamping, cutting and beveling, while the HB-7.5 hydraulic power cart acts as a standalone hydraulic power source to supply hydraulic power for the main unit.

Q: What pipe sizes and materials can be processed?

A: It covers pipe diameters from Φ10mm to 2500mm with model selection according to actual pipe size. Compatible with carbon steel, stainless steel, alloy steel, copper, aluminum, titanium and certain plastic pipes. The cold-working process will not alter the original material properties.

Q: What level types are available? Is custom service offered?

A: It supports U-bevel, single-V, double-V and J-bevel profiles. Non-standard dimensions and special bevel geometries can be custom-made upon request. Burr-free and distortion-free pipe ends are produced and ready for direct welding.

Q: Can the HB-7.5 hydraulic power cart work with other-brand pipe-cutting equipment?

A: Yes. Purpose-built for hydraulic pipe cutters, the HB-7.5 standard hydraulic power cart is compatible with mainstream domestic and international hydraulic pipe cutter brands including WACHS, Hytek and Tritoo (USA).

Q: What are the typical application scenarios?

A: As an external-clamp on-site machining unit, it is widely used in petrochemical, nuclear power, pharmaceutical, boiler, water-treatment, shipbuilding, power-generation, construction and emergency repair projects, and can operate under off-grid field conditions.

Operating Environment Adaptability

The 7.5KW Hydraulic-Driven External Clamp Cutting Bevel Machine features excellent environmental adaptability and can operate stably under various normal working conditions. It can withstand certain fluctuations in temperature and humidity as well as minor vibrations, ensuring that external factors will not impair its performance and service life under normal operating conditions. Meanwhile, its structural design, material selection and protection measures are compatible with on-site installation conditions to guarantee safe and reliable long-term operation.

Power Supply: 380V, 50Hz

Altitude: < 1000m

Ambient Temperature: 0-45°C (indoor operation)

Relative Humidity: Maximum daily average relative humidity 90%

Seismic Intensity: No higher than Grade VII
