15KW Hydraulic Driven External Cutting Beveling Machine

The 15KW hydraulic driven external cutting beveling machine provides pre-weld processing for multi-industry pipes, with a max wall thickness of 120mm. Fitted with the HB-15 high-efficiency hydraulic power unit, it is easy-to-use: set speed at startup and run without extra adjustments. Boasting strong power, potentiometer stepless speed control and built-in flow-pressure feedback ensure stable system performance. It yields smooth cuts for high-quality welding.

Product Features

1. High-Efficiency Combined Machining, One-Setup Forming

Mounted on the outer pipe wall with multi-point clamping. The 15KW hydraulic driven external cutting beveling machine completes cutting and beveling simultaneously in a single setup. Fully cold-working process keeps pipe material properties unchanged. Automatic feed eliminates manual adjustment for high throughput and superior quality. Multiple bevel profiles (U-shape, single-V, double-V, J-shape) are available with customized cutters. Burr-free, distortion-free cuts meet strict high-quality welding requirements.

2. Wide Compatibility & Flexible Selection

Covers pipe diameters from 10mm to 2500mm for flexible model selection. Processes carbon steel, stainless steel, alloy steel, copper, aluminum, titanium and plastic pipes. Suitable for pipes, pressure vessels and steam generators. Supports non-standard sizes and custom bevels for oil & gas, nuclear power, pharmaceutical, shipbuilding, metallurgy and emergency repair projects.

3. Field-Oriented Operation for Outdoor Sites

Lightweight split hinged ring structure enables fast installation at any position along the pipeline. Adjustment only requires one wrench for simple operation. Safe working mode: tool rotates while pipe remains static. Multiple power options: multi-voltage motors or engine drives for off-grid field conditions. Servo motors connect via quick-connect couplings for plug-and-play convenience.

4. Robust Construction for Stable Durable Performance

Fabricated from high-density high-strength alloy. Combined neck-loaded adjustable bearings and reinforced bottom bearing races maximize reliability. Servo drive is optional to deliver strong, consistent power. Designed for on-site pipeline machining to sustain stable cutting performance under heavy-duty cycles.

Technical Specifications

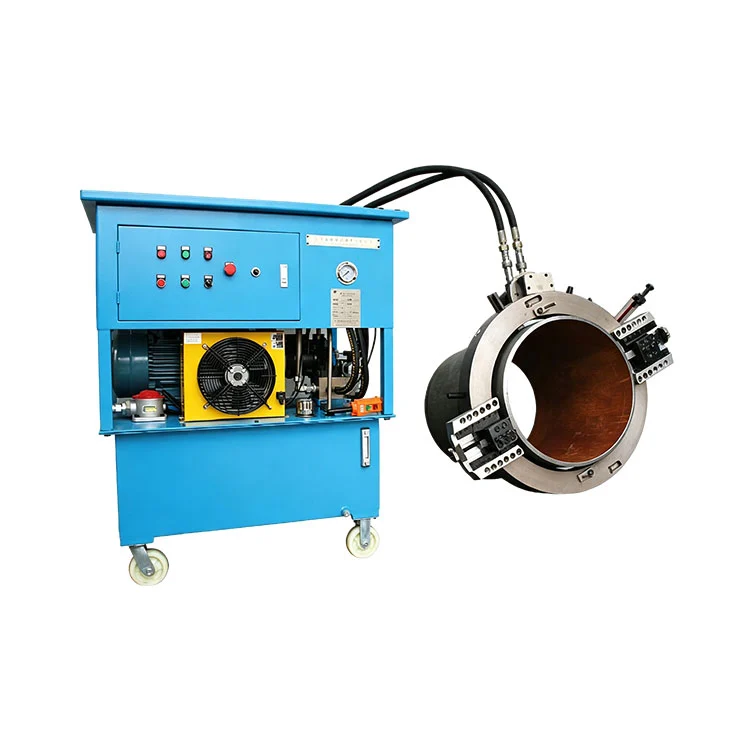

Introduction to 15KW High-Efficiency Power Trolley

HB-15 "High-Efficiency Hydraulic Power Trolley" is a high-performance power unit specially developed for 15KW hydraulic driven external cutting beveling machine. It is compatible with mainstream domestic and international pipe-cutting equipment brands including WACHS, Hydratight and Tritoo.

Adopting a variable high-pressure piston pump and load-proportional control, the system adjusts pressure and flow according to working conditions. Its pressure response lag to load is approximately 10 ms. It improves tool shock resistance, extends tool service life, reduces costs and boosts efficiency. Meanwhile, it cuts down system power consumption and hydraulic-system heat generation, lowering system power loss by around 30%.

Main Features

● Simple operation: Select the speed after startup for immediate use. Optimal cutting performance is achieved without additional adjustments.

● Powerful output: Stepless speed regulation via potentiometer. Built-in flow and pressure feedback control ensures smooth, shock-free operation, delivers consistent cutting results and reduces tool wear.

● Multiple control modes available for convenient field operation.

● High-precision load-sensing proportional control reduces energy consumption and heat generation, suitable for harsh working conditions.

● High-temperature resistant sealing materials enable normal system operation at temperatures up to 75°C.

● Key components are imported to ensure long service life and high system stability.

15kW High-Efficiency Power Unit Technical Parameters

Cutting Range Selection Table

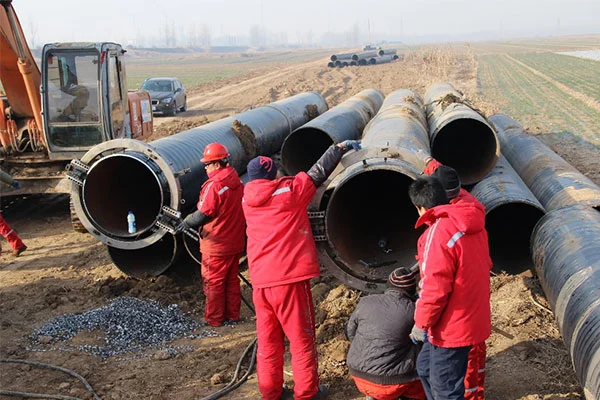

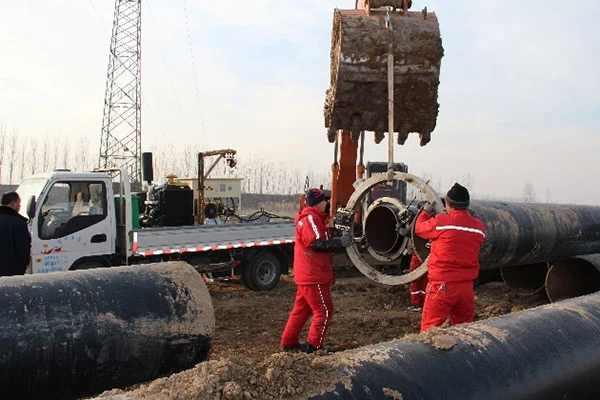

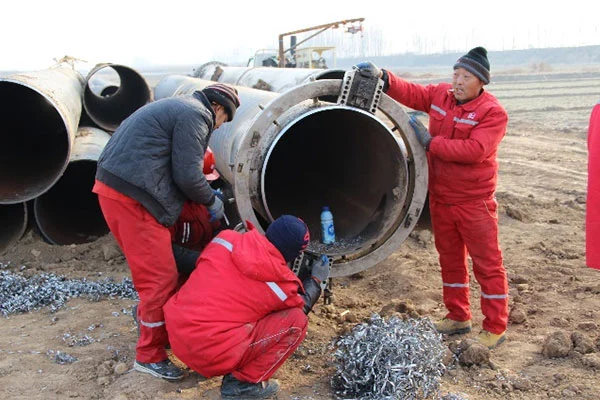

Engineering Case

FAQ

Q: How does the machine work?

A: The 15KW hydraulic driven external cutting beveling machine is clamped on pipe outer wall for cold-processing. The pipe stays static while cutters rotate around it. Cutting and beveling are finished in one setup without altering material properties. Custom cutters produce U, single-V, double-V and J-bevels.

Q: What pipe size and materials can it process?

A: Pipe diameter: 10-2500 mm, max wall thickness 120 mm. Works for carbon steel, stainless steel, alloy steel, copper, aluminum, titanium and plastic. Custom non-standard sizes & bevels are available.

Q: Can it work at job sites without power supply?

A: Yes. Interchangeable power modules support multi-voltage motors or engine drives for off-grid field operation. Servo motor adopts quick-connect plug-and-play design.

Q: Is installation difficult?

A: Split hinged-ring design allows fast mounting anywhere on pipeline. Only one wrench is needed for clamping. Set speed on startup and no extra adjustment required.

Q: About equipment durability?

A: High-density high-strength alloy body. Combined adjustable bearings and reinforced races improve reliability. Optional servo drive delivers stable heavy-duty performance for field work.
