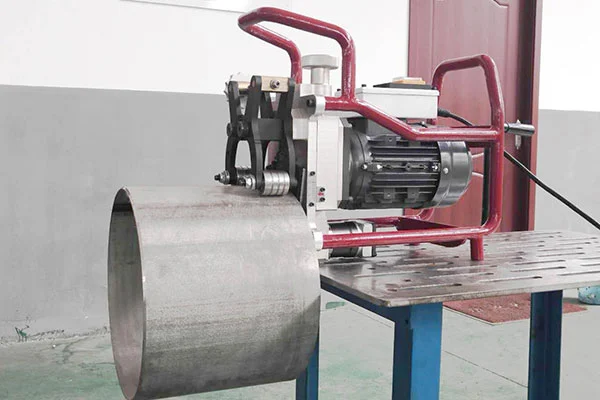

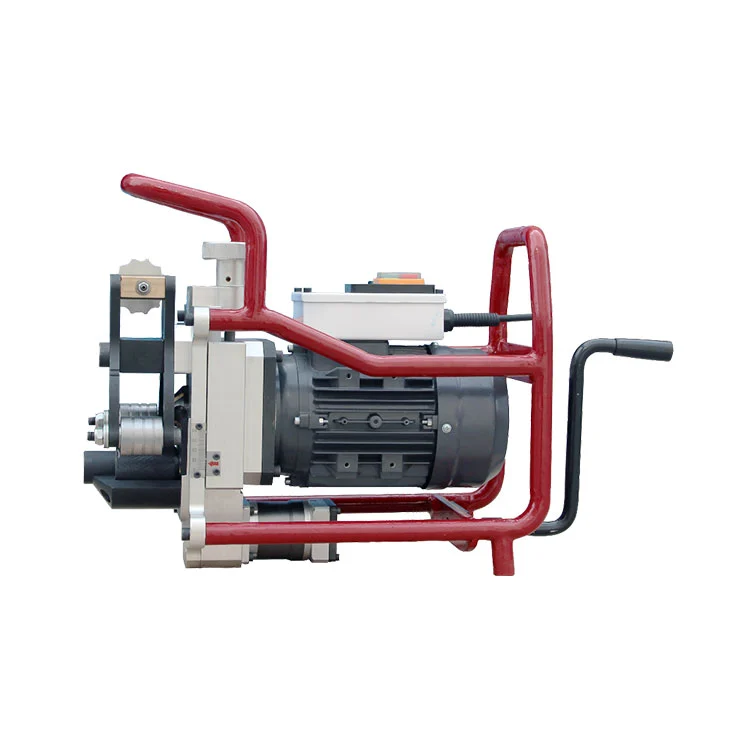

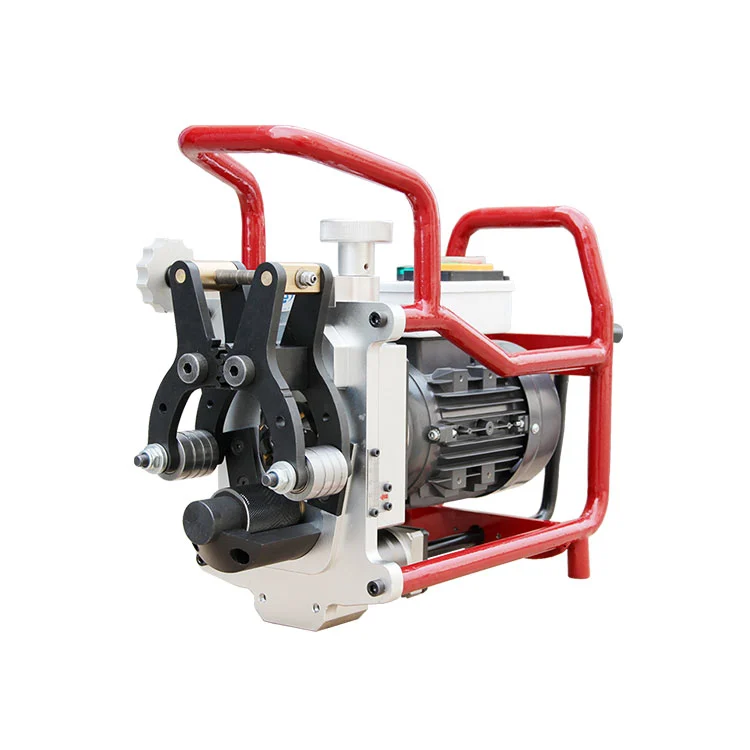

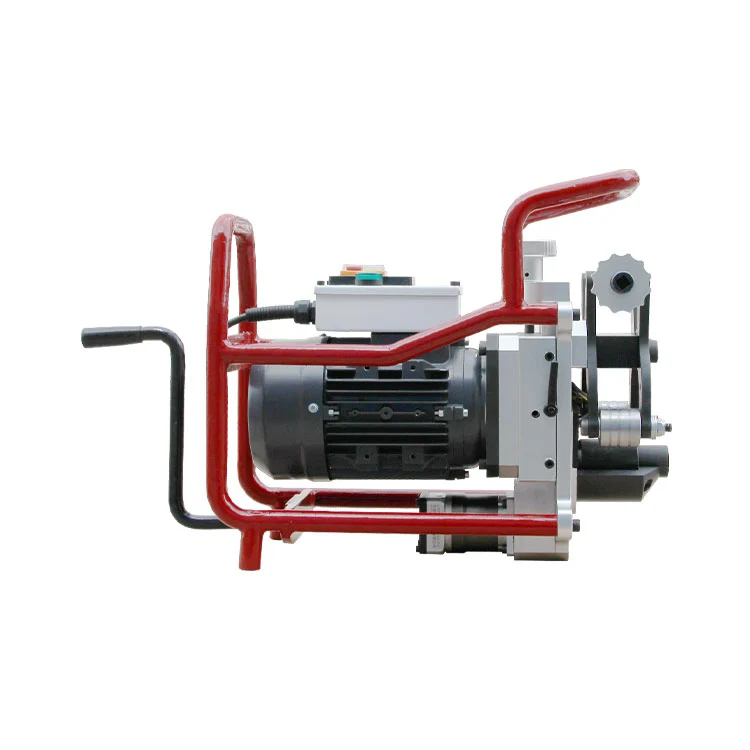

Developed by Xianjin, the Manual full-size beveling machine is a compact portable beveler. It handles pipes from 114mm diameter with no maximum limit, delivers a max bevel depth of 15mm, and works on plates up to 15mm thick. Fitted with four high-precision replaceable-tip blades, it accurately creates 30°, 37.5° and 45° bevels for superior machining quality.
Quick-mount design with user-friendly operation. Adopting milling-type machining, the Manual full-size beveling machine keeps the base material of pipe ends intact and produces minimal iron chips, serving as an alternative to conventional beveling methods.
Minimum applicable pipe diameter: 114mm, with no upper limit for maximum diameter. Max bevel depth reaches 15mm; it can also process plates up to 15mm thick. Compatible with stainless steel, carbon steel, alloy steel and other materials. Widely used in petrochemical, power, shipbuilding, beverage, dairy, pharmaceutical and other industries.
Fitted with commercially-available standard cutting tools. Spare parts are easy to source, effectively lowering overall operating costs.
Delivers outstanding processing efficiency. Beveling for 219×8mm pipes can be finished within 1 minute, efficiently meeting pre-weld bevel preparation requirements.
| Project | Parameter | Project |
| Pipe processing range | >Φ114mm | No upper limit for pipelines |
| Thickness of processed sheet material | ≤15mm | |
| Voltage | 380V | |
| Machining bevel width | ≤15mm（C15） | |
| Motor speed | 2000(r/min) | |
| Motor power | 2KW | |
| Cutter head angle | 30° / 37.5° / 45° | The device comes standard with a 30°tilt. |
| Number of blades | 4 pieces/set | Standard 8 pieces |
| Processed materials | Carbon steel/stainless steel/alloy steel, etc | |
| Wall thickness processing | ＞3mm | |
| Equipment weight | 25Kg | |
| Device dimensions | 485X404X286mm |

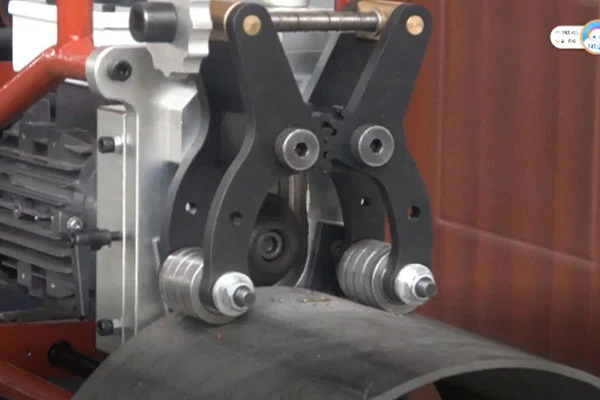

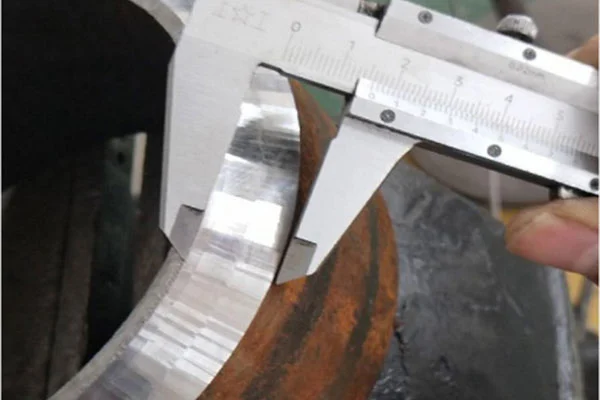

A: The Manual full-size beveling machine is compact and portable for easy carrying, with convenient mounting and dismounting on pipe ends. It generates no sparks during machining, leaves the pipe-end base material undamaged and produces minimal iron chips, serving as an alternative to traditional beveling processes such as grinding. Equipped with four high-precision blades, it delivers excellent bevel forming quality and enables efficient processing for both pipes and plates.

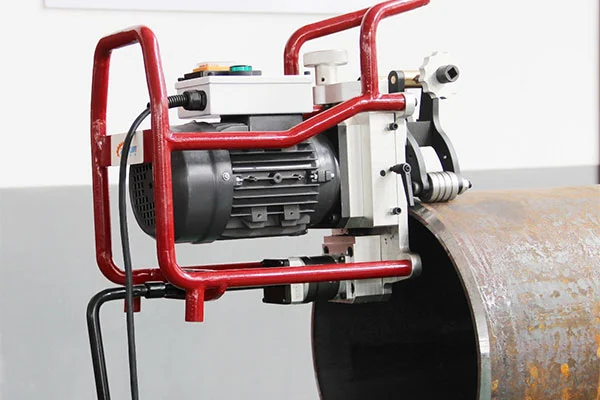

A: The machine features fast installation and simple operation. Once securely clamped, it completes high-quality beveling on a 12-inch standard steel pipe in only 45 seconds, realizing rapid pre-weld bevel preparation.
A: The minimum processable pipe diameter is 114mm with no upper diameter limit. Its maximum bevel depth is 15mm and it can also process plates up to 15mm in thickness.
A: It adopts replaceable tool heads and can precisely produce bevel angles of 30°, 37.5° and 45°, meeting angle requirements for various welding procedures.
A: The Manual full-size beveling machine is widely used in semiconductor, electronic equipment, brewery, pharmaceutical, biotechnology, beverage, dairy, pressure vessel, oil & gas, chemical, aerospace, shipbuilding, power construction, boiler and water-treatment industries. It is an ideal piece of equipment for direct welding after pipe cutting.
This Manual full size beveling machine (design, manufacturing) and its spare parts comply with the latest versions of national standards (GB), industry standards (JB, DL...), and international standards (SI, ANSI, ASME, AWS, API, DIN, ISO), except for the technical parameters and requirements specified in the specifications. The standards for product design and manufacturing execution are as follows:
• General Code for Construction and Acceptance of Mechanical Equipment Installation Engineering GB50231-98
• Guidelines for Safety Design of Electrical Equipment GB4064-1983
• Mechanical Safety - Mechanical Electrical Equipment GB 5226.1-2002
• Marking of Insulated Conductors GB4884-85
• Code for Acceptance of Construction Quality of Steel Structures GB 50205-2002
• Code for Design of Steel Structures GB 50017-2003
• The manufacturing standard for process pipelines is ASTM B31.3.
• International standards (SI, ANSI, AWS, API, DIN, ISO)
