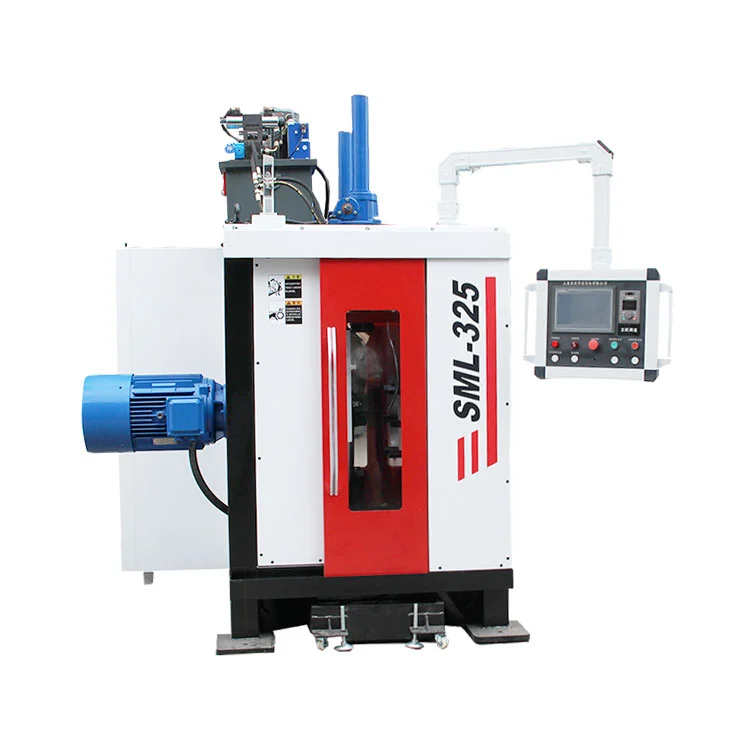

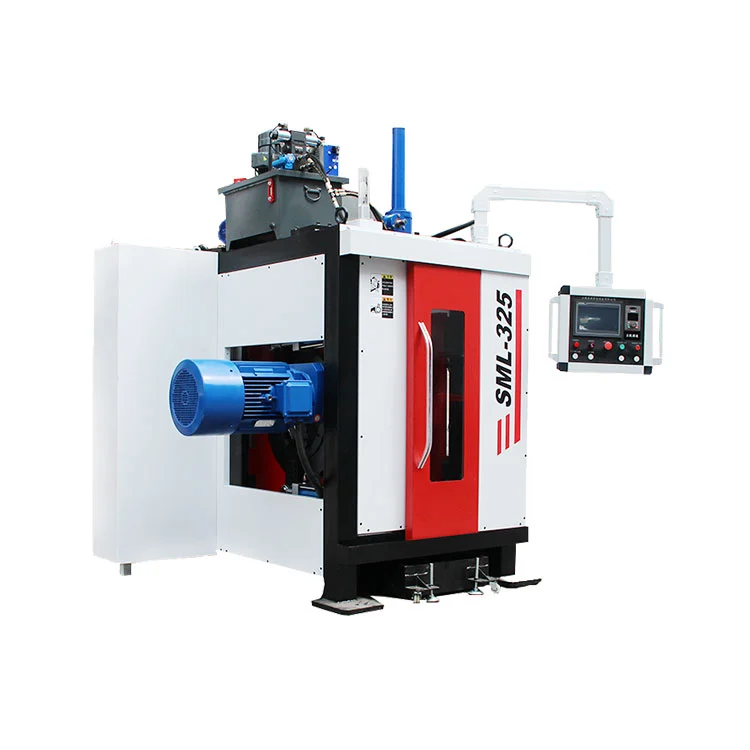

CNC Cutting and Beveling Machine

As a leading manufacturer from China of pipeline cutting and beveling equipment, Xianjin Pipeline launches the CNC cutting and beveling machine. It supports standard end beveling, mid-pipe cutting and double-sided beveling. Featuring innovative PLC servo feed technology, it delivers high efficiency for oil, petrochemical, pharmaceutical, metallurgical, water treatment, shipbuilding and power industries.

Send Inquiry

Product Description

CNC cutting and beveling machine is engineered from years of market research. It features self-developed cam rotary clamping system, PLC servo feed technology and rotary cutting process with user-friendly controls for high efficiency. This integrated unit comes with a 380V variable frequency motor and stable feeding mechanism. Tools rotate around the pipe for burr-free, distortion-free cutting and beveling; different bevel angles are available via tool replacement. The liftable main body adjusts machining center height for various pipe diameters, enabling easy operation.

Product Features

This machine performs standard end beveling on pipes, and can also cut pipe mid-sections or machine double-sided bevels.

Cut surfaces are burr-free, distortion-free and ready for direct welding.

PLC-controlled automatic feed and retract.

Large-capacity chip collection device.

Rotary cold cutting: rotating blades cut around the pipe circumference for impeccable results with 100% square pipe ends.

Works with all pipe materials including carbon steel, stainless steel and alloy steel.

Multi-point circumferential clamping effectively prevents pipe deformation during clamping.

The CNC cutting and beveling machine features a liftable main unit to adjust center height for various pipe diameters, ensuring simple and convenient operation.

Main Functions

Automatic multi-jaw clamping · PLC automatic feed · PLC automatic retract · Hydraulic single-side or double-side clamping · Circulating water cooling · Four-point automatic lifting · Main unit variable frequency speed regulation · Split-type safety doors (left & right opening) · Large-capacity chip collection trough · Simultaneous cutting & beveling / double-sided bevel machining · Automatic lubrication pump system · LED lighting system · Laser alignment system · Machine operation indicator light · PLC parameter setting

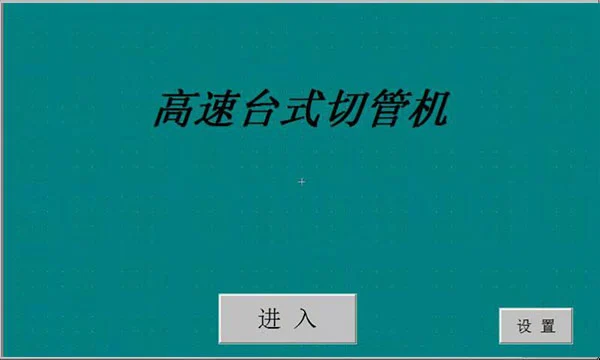

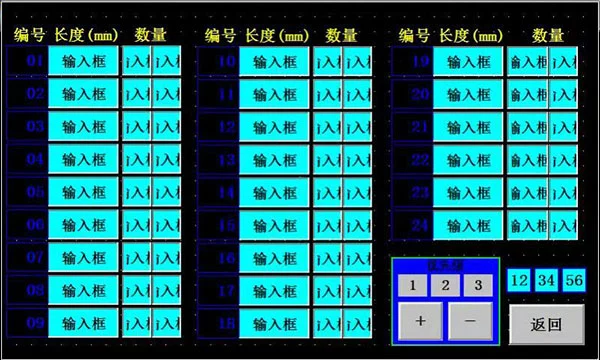

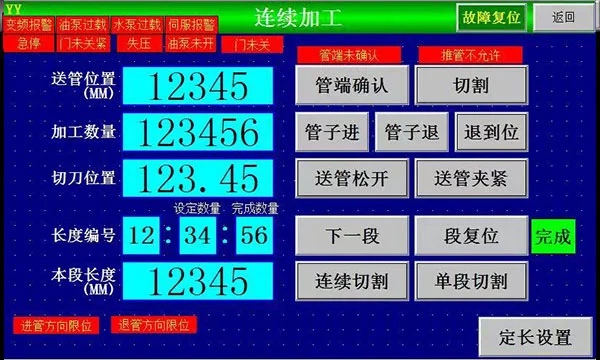

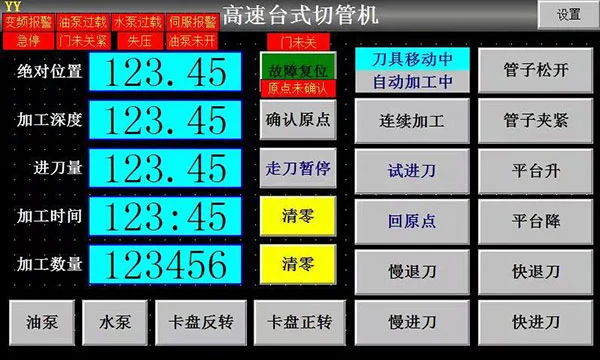

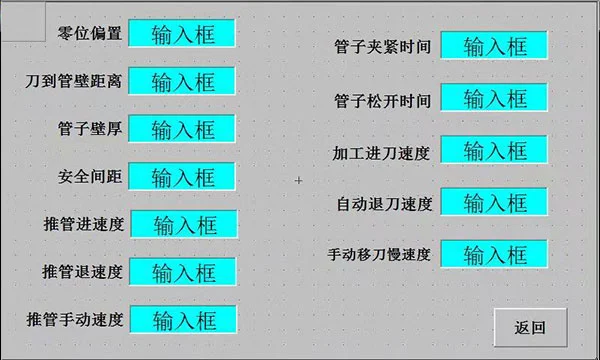

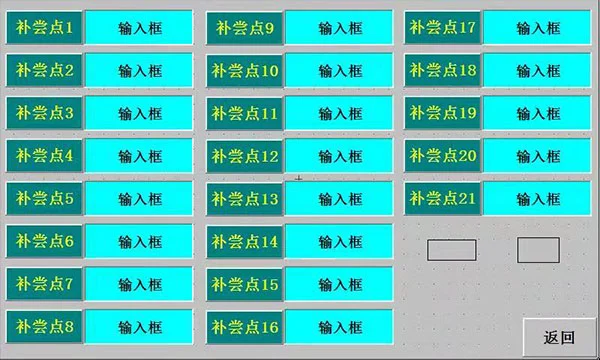

Operating Interface

Product Details

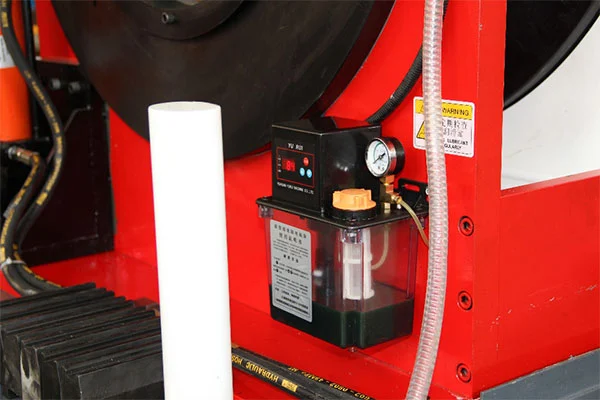

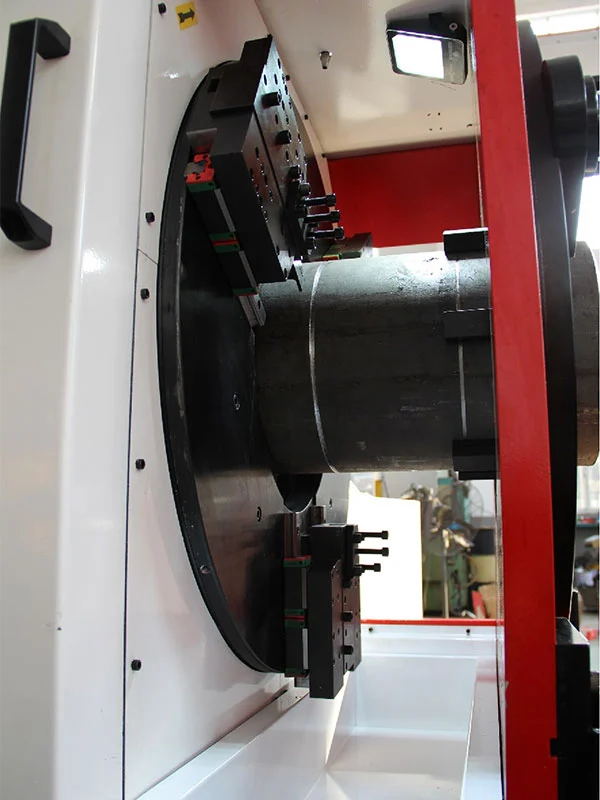

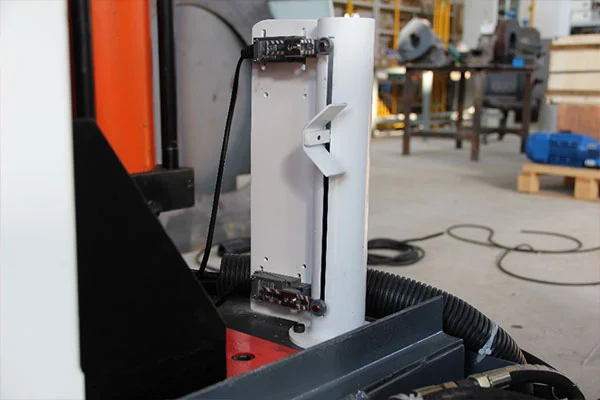

CNC Cutting and Beveling Machine Product Detail

Technical Parameter

Selection parameters

Model	Description	Machining Range	Wall Thickness Range	Clamping Method	Remarks
SML-168	CNC cutting and beveling machine	30-168mm	≤18	4-jaw hydraulic single / double-side clamping	Servo feed and retract
SML-325		80-325mm	≤18	6-jaw hydraulic single / double-side clamping
SML-426		126-426mm	≤18	6-jaw hydraulic single / double-side clamping
SML-530		230-530mm	≤18	8-jaw hydraulic single / double-side clamping
SML-630		480-630mm	≤18
SML-762		426-762mm	≤18
SML-914	CNC cutting and beveling machine	610-914mm	≤18	8-jaw hydraulic single / double-side clamping	Servo feed and retract

Technical Specifications

Parameter	SML-168	SML-325	SML-426	SML-530	SML-630	SML-762	SML-914
Main Motor Power	3KW	7.5KW	7.5KW	11KW	15KW	15KW	20KW
Lifting Method	4-point automatic lifting
Clamping Method	4-jaw hydraulic self-centering / hydraulic clamping		6-jaw hydraulic self-centering / hydraulic clamping		8-jaw hydraulic self-centering / hydraulic clamping
Water Pump Power	0.25KW
Voltage / Frequency	380V/50HZ
Cutting Range	30-168mm	80-325mm	126-426mm	230-530mm	480-630mm	426-762mm	610-914mm
Cutter Head Speed	0-40r/min	0-35r/min	0-35r/min	0-35r/min	0r/min	0r/min	0-25r/min
Feed Method	Servo Feed
Retract Method	Servo Retract
Machining Capacity	Single-pass cut & single bevel
Bevel Type	V/I/U/Single-V (30° V standard)
Number of Simultaneous Cutters	1/2/3
Hydraulic System Power	2.2KW
Feed Depth	0-0.2 mm/r
Servo Motor Power	0.75KW	0.75KW	1KW	1.5KW	2KW	2KW	3KW
Lighting	Equipped

Field Application Cases

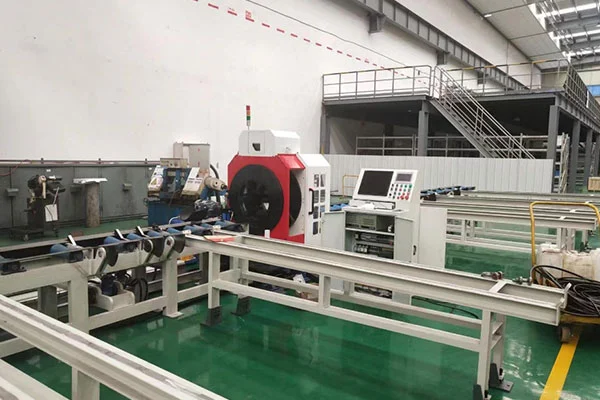

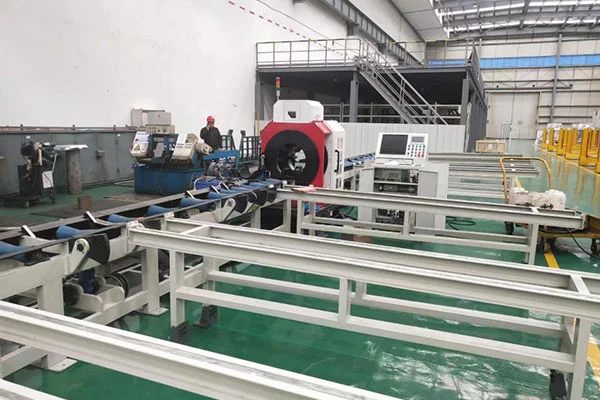

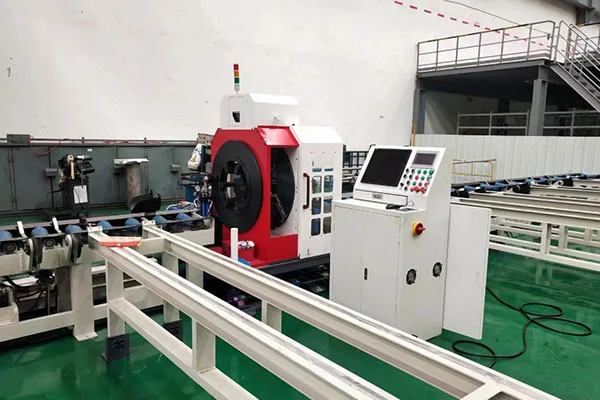

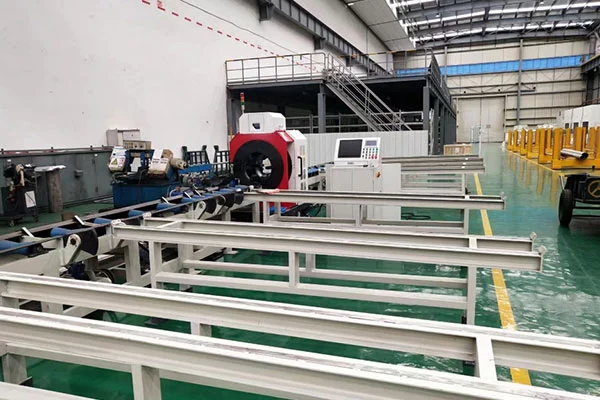

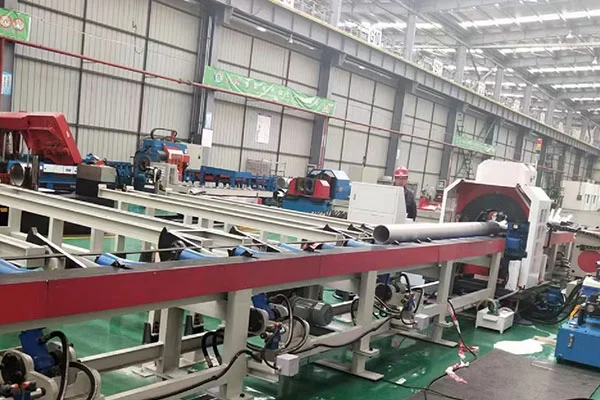

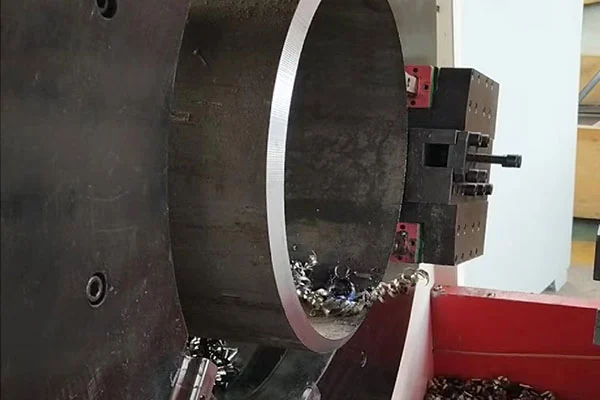

CNC Cutting and Beveling Machine Application

FAQ

Q: What pipe machining can the SML machine perform?

A: The CNC cutting and beveling machine can machine standard end bevels, cut pipe mid-sections and produce double-sided bevels. Single-pass cutting + single beveling is available.

Q: What pipe materials can be processed? What about cutting quality?

A: Carbon steel, stainless steel and alloy steel. Adopting rotary cold cutting, pipe ends are 100% square. Cut surfaces are burr-free and distortion-free, ready for direct welding.

Q: What bevel types are supported?

A: V, I, U and single-V bevel. 30° V bevel as standard. Bevel profiles can be changed by replacing cutters.

Q: What auxiliary systems are equipped?

A: Circulating water cooling, large-capacity chip collection trough, automatic lubrication pump system, LED lighting, laser alignment system, left & right split safety doors, machine operation indicator light.

Q: What is the clamping structure? Will it cause pipe deformation?

A: It adopts hydraulic self-centering clamping with optional single-side or double-side hydraulic clamping. Multi-point circumferential clamping effectively prevents pipe deformation during clamping.

After-sales Service

Free Warranty Period: The warranty period for CNC cutting and beveling machine shall be 12 months from the date of acceptance.
Services within Warranty: Free technical consultation and repair shall be provided for equipment failure or damage. Response to inquiries: telephone reply within 2 hours, written reply within 8 hours. If on-site service is required, experienced engineers will be dispatched within 24 hours for locations within 800km, or within 48 hours for locations over 800km. Engineers shall remain on-site until the fault is rectified and customer satisfaction is achieved.
Services after Warranty Expiry: Telephone response within 2 hours upon receipt of service request. If the fault cannot be resolved via telephone guidance, engineers will be dispatched within 24 hours (within 800km) or 48 hours (over 800km) to provide on-site repair assistance.
The company adheres to its service philosophy and operation-support service commitment to resolve after-sales issues promptly and efficiently.
