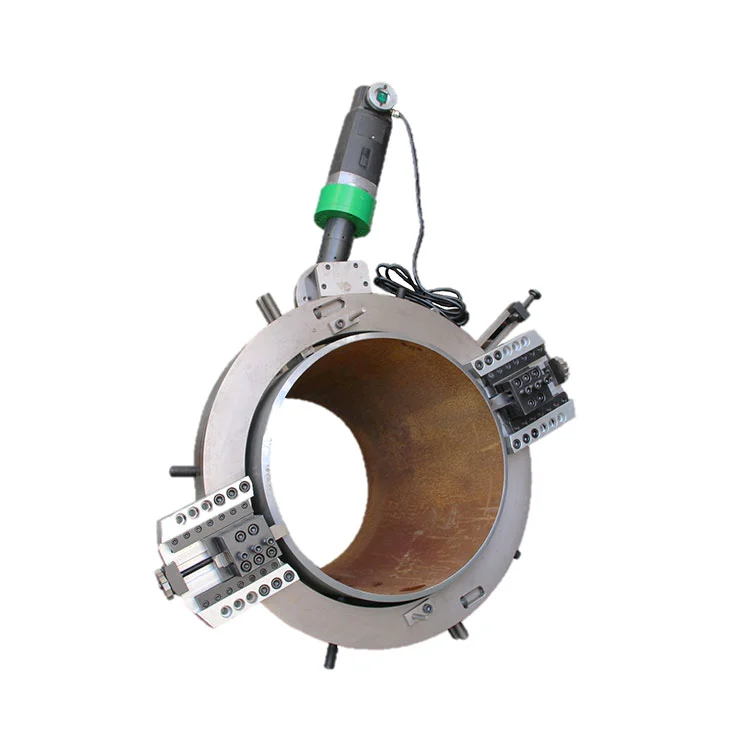

Electric External Clamp Cutting Beveling Machine

This electric external clamp cutting beveling machine is made of high strength, high density alloy material. Servo drive is optional, enabling integrated pipe cutting and beveling processing. It delivers stable and powerful power with automatic orbital cutting for outstanding efficiency. The cut surface is smooth, burr-free and free of deformation, completing cutting and beveling in one pass. Suitable for pre-weld pipe processing across multiple industries, it supports non-standard sizes and custom special bevel profiles.

Product Features

1. Multi-point External Clamping

Mounted externally on the pipe wall, the machine secures the pipe firmly via multi-point clamping structure. Cutting and beveling can be completed simultaneously with a single clamping operation.

2. Fully Automatic Feed Adjustment

Designed with automatic feed to eliminate manual adjustment, delivering higher processing efficiency and superior pipe end finish. The entire process adopts cold machining, which preserves the physical properties of pipe materials.

3. Wide Pipe Diameter Range & Versatile Application

It accommodates pipe diameters ranging from 10mm to 2500mm. Optional accessories are available for special size requirements. In addition to standard metal pipes, it is suitable for cutting and beveling work on various pipelines, pressure vessels and steam generators.

4. Versatile Across Industries

This electric external clamp cutting beveling machine serves a wide array of industries including oil & gas, petrochemicals, food processing, boiler manufacturing, pharmaceuticals, nuclear power, venue construction and general civil engineering. It is widely applied to on-site pipeline installation, maintenance and renovation projects.

Technical Specifications

Cutting Range Selection Table

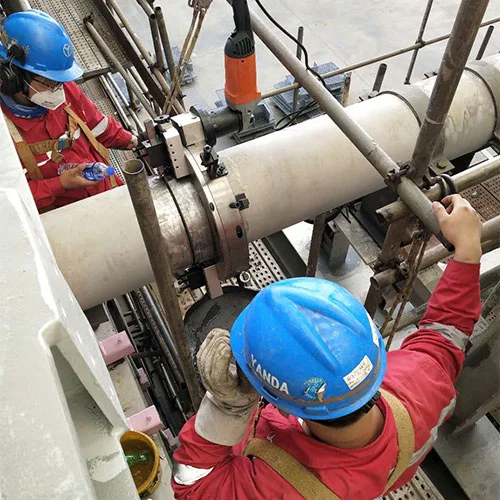

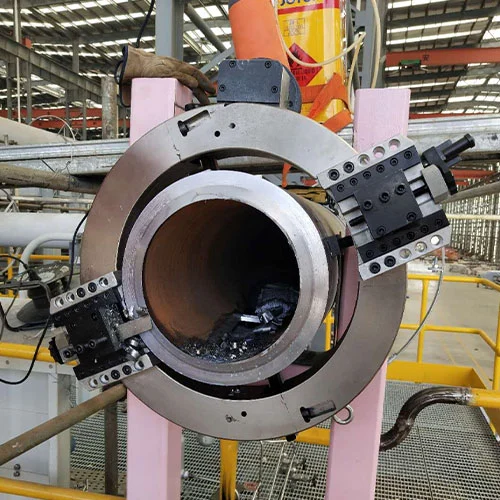

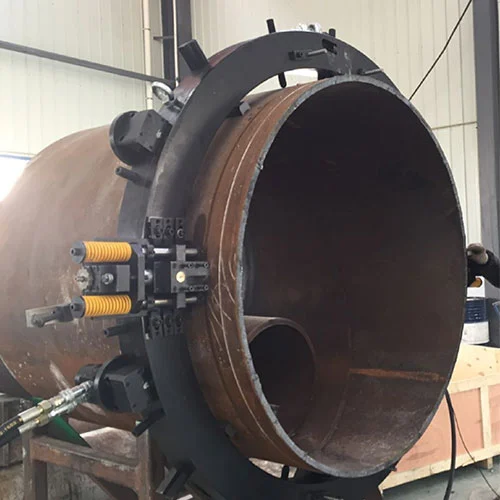

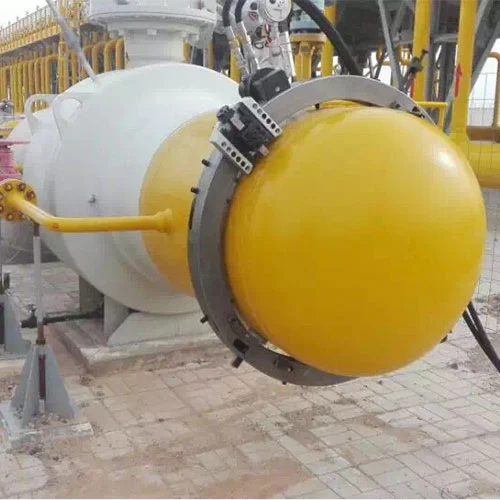

Engineering Case

FAQ

Q: What pipe materials can be processed?

A: The electric external clamp cutting beveling machine supports a wide range of materials. It can process plastic pipes, copper, brass, iron, carbon steel, aluminum, high-grade steel, premium stainless steel, titanium and other pipe materials.

Q: What are the major on-site operation advantages of this equipment?

A: The complete machine is lightweight and portable, offering outstanding performance for large-diameter field processing. The pipe remains stationary while the cutting tool rotates, ensuring high operational safety. Clamping and adjustment can be completed with only one wrench. The fixing system fastens pipes quickly for easy on-site assembly, disassembly and commissioning.

Q: What power options are available? Can it work at field sites without electricity supply?

A: Multiple power solutions are available to adapt to diverse regions and environments. Motors with different voltages or engine drive are optional for off-grid field operations. Servo drive is also supported. The servo motor is equipped with quick-connect connectors for plug-and-play and convenient disassembly.

Q: How about the quality of the machined pipe end? Is direct welding feasible?

A: Orbital tool cutting delivers burr-free, deformation-free and clean pipe ends with consistent machining quality. It meets high-standard welding requirements, and pipes are ready for direct welding after processing.

Complete Customization Process

1. Submit Custom Requirements

Provide core information including pipe parameters, bevel standards, working conditions and power requirements. Relevant drawings are supported for accurate evaluation.

2. Technical Review & Quotation

Our team conducts professional technical review, confirms optimal adaptation solutions, calculates production cycle and cost, and provides exclusive customized plans and formal quotations.

3. Proposal Confirmation & Contract Signing

Customers verify the customized plan, technical parameters, price and delivery time. Formal contracts and technical agreements are signed to lock all non-standard specifications and avoid delivery errors.

4. Production & Component Modification

We complete machine refitting, custom fixture and tool manufacturing, as well as power and electrical system adjustment in strict accordance with the customized plan. Production progress can be updated in real time.

5. Factory Inspection & Testing

Trial cutting tests are performed with matched pipe samples. We strictly inspect clamping stability, cutting accuracy, bevel size and pipe end quality to ensure full compliance with customization standards before delivery.

6. Packaging & Delivery

The complete set of the electric external clamp cutting beveling machine, including custom fixtures, special tools, operation manuals and professional technical documents, is well packaged and delivered to the site.

7. On-site Commissioning & Acceptance

We complete on-site installation, commissioning and actual pipe trial cutting. The final cutting and beveling quality is verified to complete project acceptance.
