Delivering high processing efficiency, it completes high-precision beveling for 600×8mm pipes in just 10 minutes. It shortens construction time and perfectly suits batch processing of large-diameter pipelines.
Fitted with universal standard tools, this beveling machine features easy spare part replacement and low operational and maintenance costs. It is widely used in petrochemical, power, shipbuilding, beverage, dairy, pharmaceutical and other industries, ideal for pre-weld pipe beveling.
Featuring fast installation and user-friendly operation, the Automatic full-size beveling machine adopts precision milling technology. It leaves pipe end base materials intact with minimal chip production, delivering more stable and safer beveling than traditional grinding processes.
It supports pipe processing from 600mm diameter with no upper size limit, and achieves a maximum bevel depth and plate processing thickness of 50mm. Compatible with stainless steel, carbon steel, alloy steel and more, it offers excellent versatility for diverse applications.
Delivering high processing efficiency, it completes high-precision beveling for 600×8mm pipes in just 10 minutes. It shortens construction time and perfectly suits batch processing of large-diameter pipelines.
Fitted with universal standard tools, this beveling machine features easy spare part replacement and low operational and maintenance costs. It is widely used in petrochemical, power, shipbuilding, beverage, dairy, pharmaceutical and other industries, ideal for pre-weld pipe beveling.

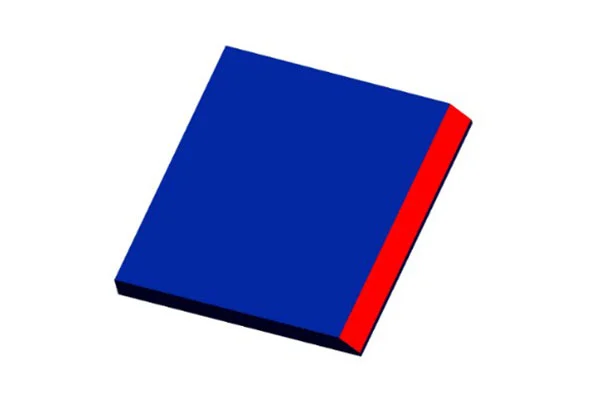

Steel plate straight edge groove

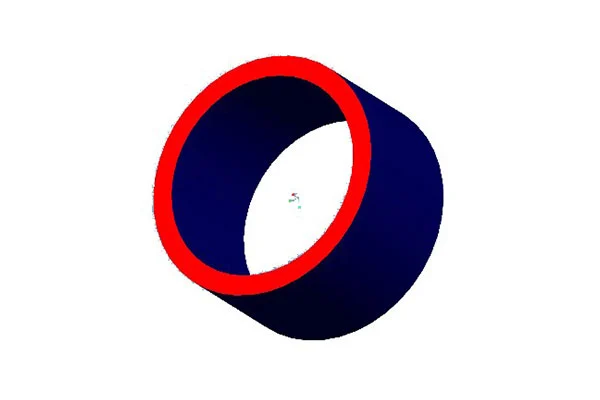

Steel pipe 0° plain end

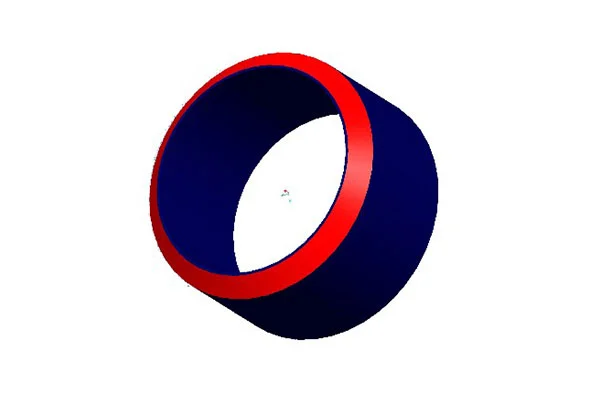

Round hole V-shaped groove

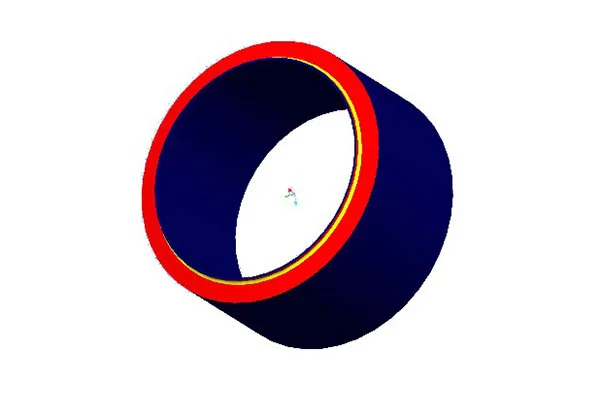

Round hole J-shaped groove
| Project | Parameter | Project | Parameter |
| Pipe processing range | >Φ600mm | No upper limit for pipelines | — |
| Thickness of processed sheet material | ≤50mm | Voltage | 380V |
| Cutterhead diameter | 63mm | — | — |

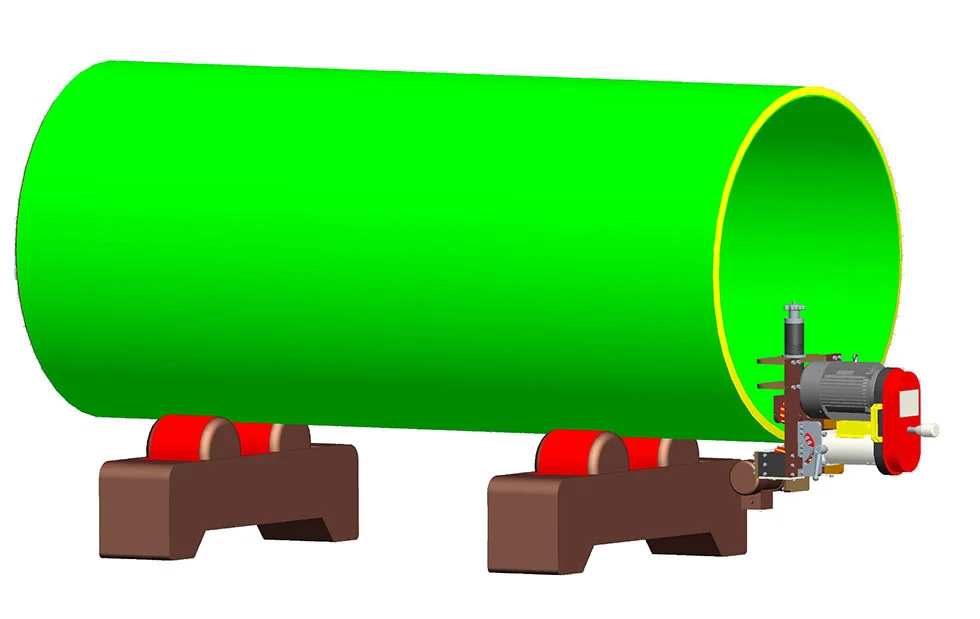

For horizontal operation, the Automatic full-size beveling machine must be equipped with an adjustable-speed roller frame. The roller frame and the beveling machine shall maintain a consistent rotating speed during operation.
Roller frame
For horizontal operation, the equipment requires a straight pipe clamping length of 130mm.

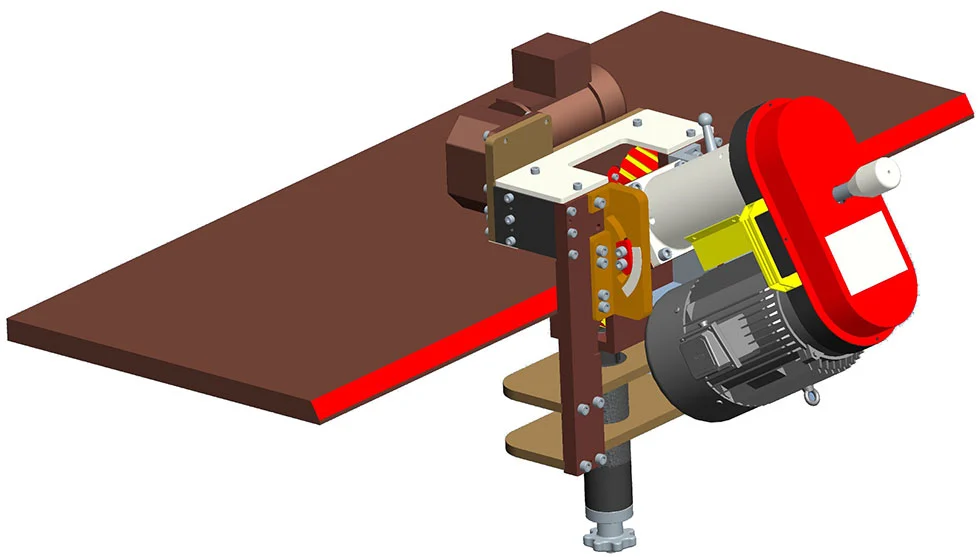

A 200mm clearance is required at both the front and rear sides when the equipment processes steel plates.
A: The automatic full-size beveling machine can be installed quickly and operated easily with no complex commissioning required. Even new operators can get started quickly, making it ideal for fast on-site construction.
A: It adopts widely available standard cutting tools featured with high universality, easy procurement and low replacement cost, effectively reducing long-term operation and maintenance expenses.
A: This automatic full-size beveling machine features a wide processing range. It processes pipes with a minimum diameter of 600mm without upper diameter limit. The maximum bevel depth reaches 50mm, and it can machine plates up to 50mm in thickness, fully meeting the processing requirements of various large-diameter workpieces.
A: It delivers excellent processing efficiency. High-precision beveling on 600×8mm steel pipes can be finished within 10 minutes, greatly shortening construction time and improving pre-weld processing efficiency.
A: Adopting milling processing technology, this beveling machine causes no damage to pipe end base materials and produces minimal iron scraps, which is superior to traditional beveling methods. It is suitable for processing stainless steel, carbon steel, alloy steel and other materials, and is widely applied in petrochemical, power, shipbuilding, beverage, dairy, pharmaceutical and other industries.
