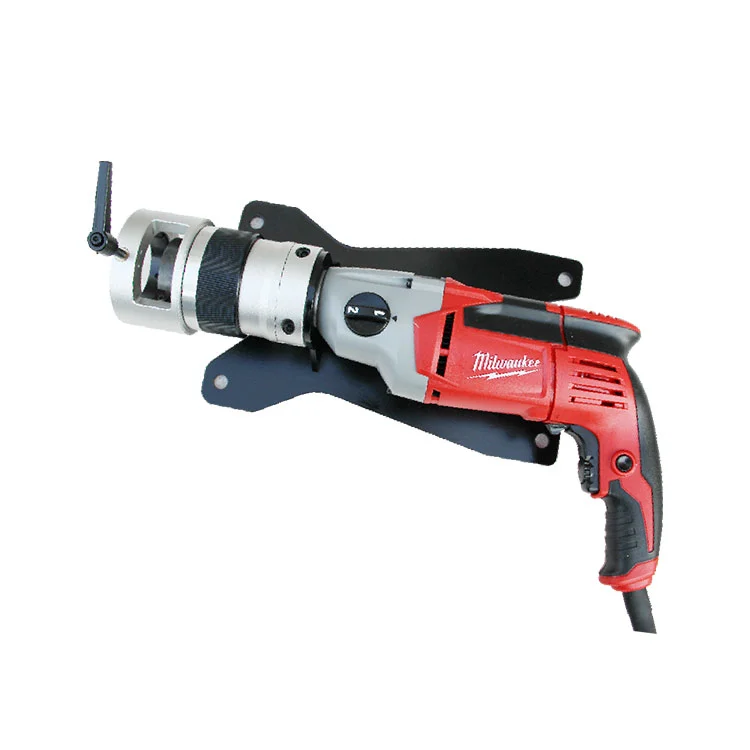

As a professional pipeline equipment manufacturer and supplier from China, Xianjin Pipeline offers this High-precision flat-mouth machine for thin-wall tube end trimming. Powered by 220V plug-in supply, it produces pipes ready for high-precision tube-to-tube welding and pipe component fabrication. Widely used for ultra-pure stainless steel welding in electronics, pharmaceutical and biochemical industries.

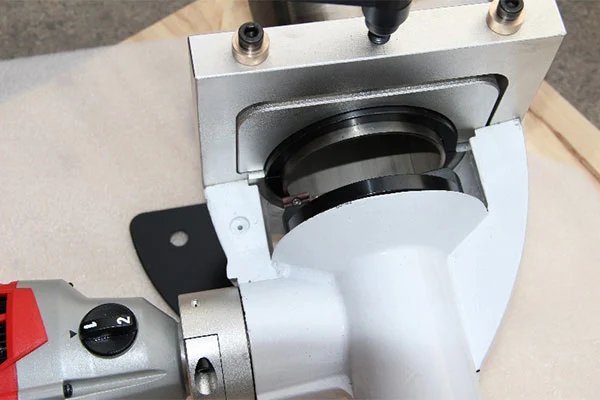

This High-precision flat-mouth machine is dedicated to high-precision end facing of thin-wall stainless steel tubes. Machined tube ends are burr-free and 100% perpendicular to the tube axis. It covers a processing range of 6.35-101.6 mm. Fitted with an imported motor, it delivers stable performance and long service life. Featuring a compact structure, the machine enables easy mounting of clamps, cutters and tubes for simple operation.
This High-precision flat-mouth machine enables high-precision end-facing for thin-walled stainless steel pipes, with a machining range of 6.35-101.6 mm. It meets the end-facing requirements for various ultra-pure thin-walled stainless steel pipes.

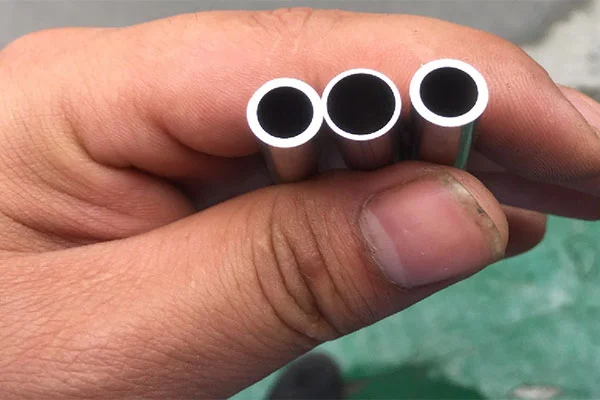

After facing processing, no burrs remain on the pipe end. The perpendicularity between the pipe end and pipe axis reaches 100%.

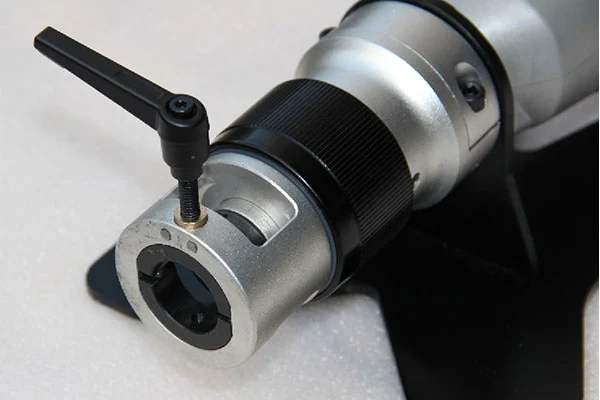

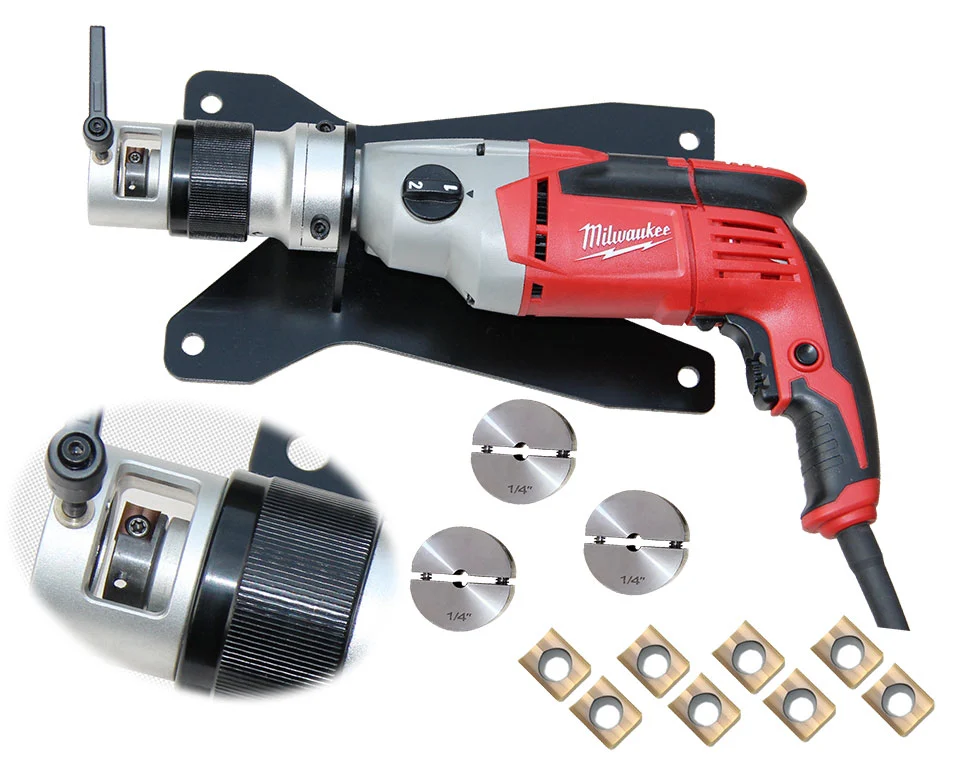

Featuring a compact and sophisticated overall structure, the equipment allows convenient clamping of fixtures, cutting tools and pipes, delivering a simple and controllable machining workflow.
Fitted with an imported drive motor, it ensures stable operation and long service life.

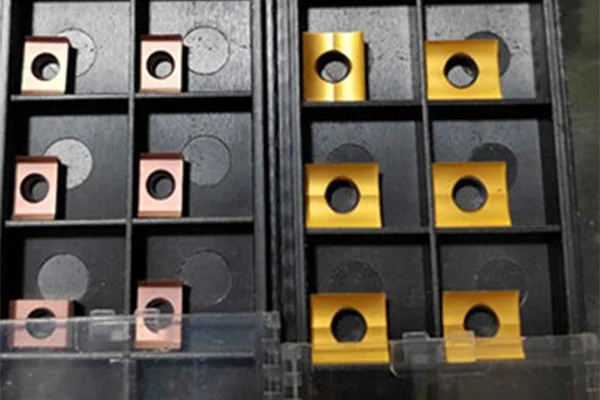

Equipped with specially-coated cutting tools, it guarantees supreme end-face machining accuracy while offering high durability and low wear-and-tear.

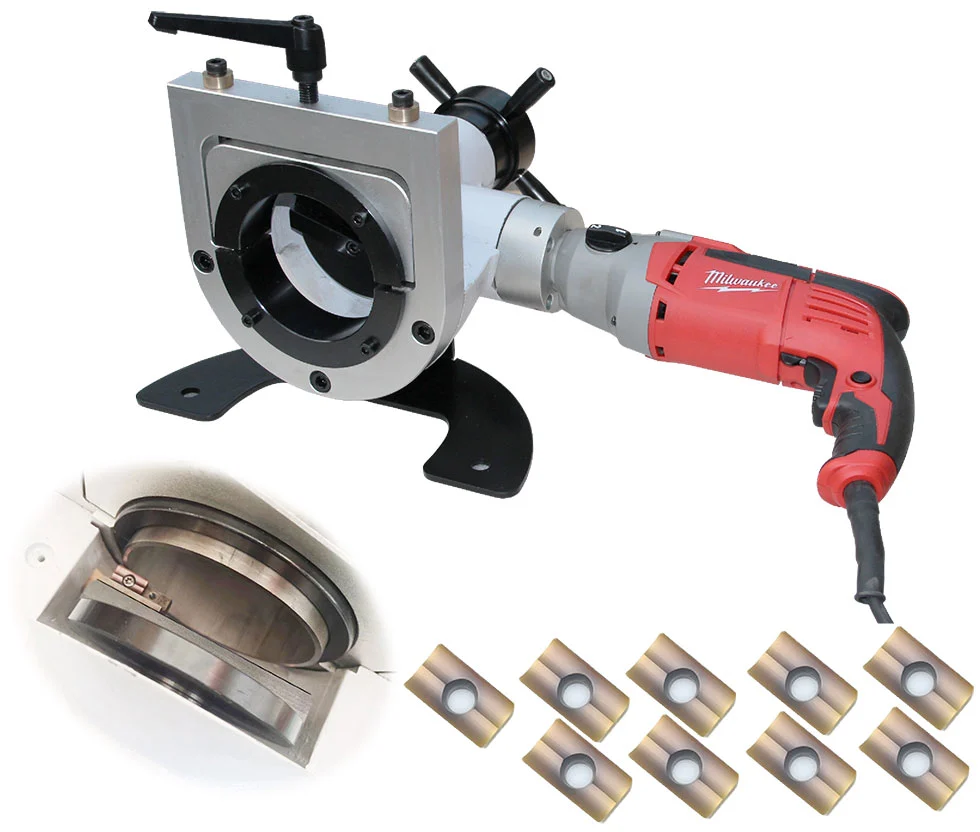

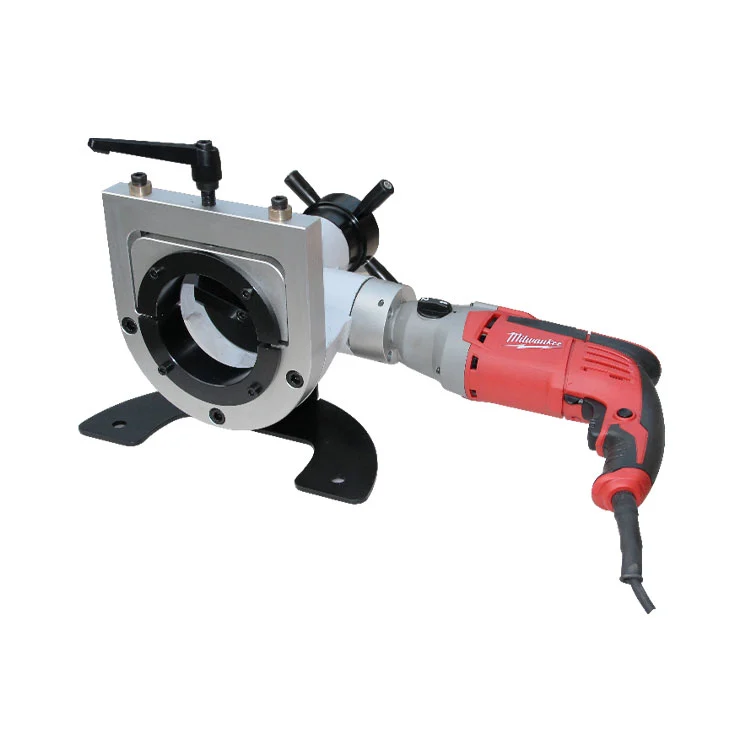

High-precision flat-mouth machine PM-4 (6.35-101.6mm)
| Item | Specification |
| Applicable bevel type | I |
| Machining range | 6.35-101.6mm / 1/4in-4in |
| Machining wall thickness | ≤3mm |
| Motor power | 1.1KW |
| Equipment weight | 5 KG |
| Cutter head speed | 350R/min |
| Axial feed depth | 5mm |
| Voltage | 220V 50HZ |
| Optional fixture sizes | 1/4, 3/8, 1/2, 2/3, 1.0 (6.35 / 9.525 / 12.7 / 16.76 / 25.4). 3 sets are provided as standard; non-standard sizes can be custom-made. |

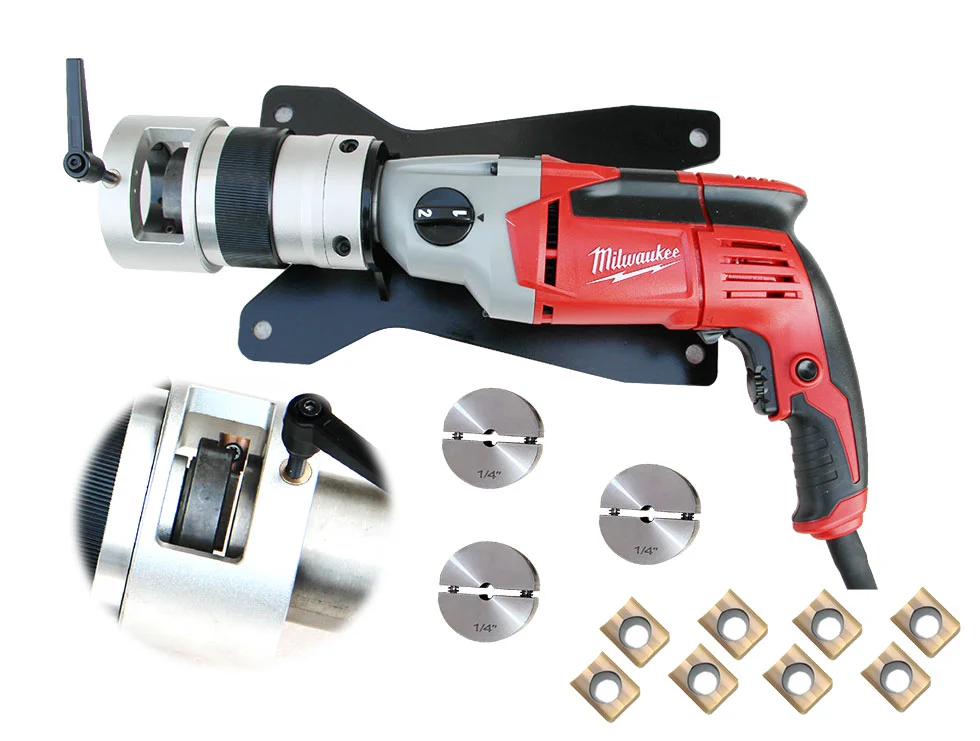

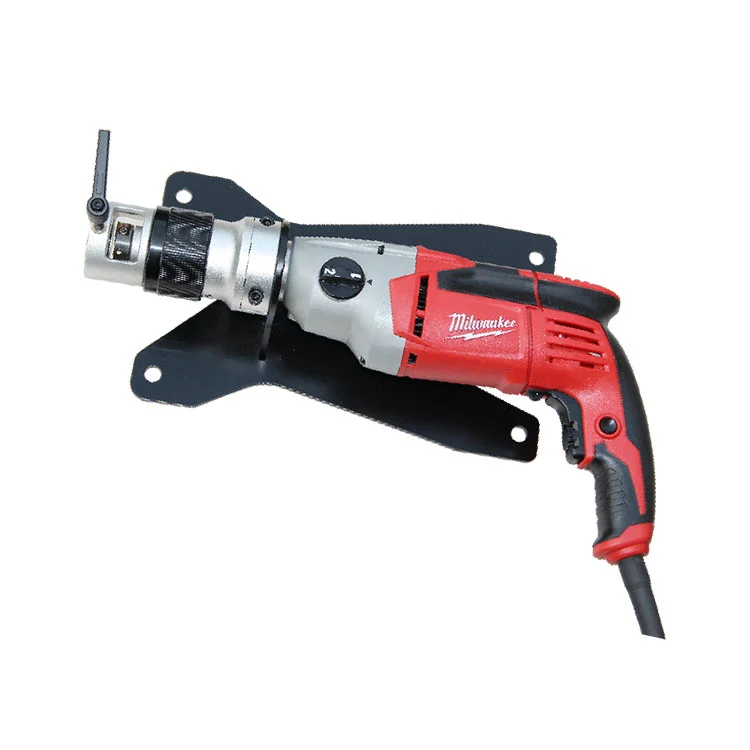

High-precision flat-mouth machine PM-1.0（6.35-25.4mm）
| Item | Specification |
| Applicable bevel type | I |
| Machining range | 6.35-25.4mm / 1/4in-1in |
| Machining wall thickness | ≤3mm |
| Motor power | 1.1KW |
| Equipment weight | 5 GK |
| Cutter head speed | 350R/min |
| Axial feed depth | 5mm |
| Voltage | 220V 50HZ |
| Optional fixture sizes | 1/4, 3/8, 1/2, 2/3, 1.0 (6.35 / 9.525 / 12.7 / 16.76 / 25.4). 3 sets are provided as standard; non-standard sizes can be custom-made. |
High-precision flat-mouth machine PM-2 （6.35mm-50.8mm）
| Applicable bevel type | Facing |
| Machining range | 6.35-50.8mm / 1/4in-2in |
| Machining wall thickness | ≤3mm |
| Motor power | 1.1KW |
| Equipment weight | 5.75GK |
| Cutter head speed | 350R/min |
| Axial feed depth | 5mm |
| Voltage | 220V 50HZ |
| Optional fixture sizes | 1/4, 3/8, 1/2, 2/3, 1.0 / 2.0 (6.35 / 9.525 / 12.7 / 16.76 / 25.4 / 50.8). 3 sets are supplied as standard; non-standard sizes are available for custom manufacturing. |
Established in 2012 and headquartered in the core region of the Yangtze River Delta, Xianjin Pipeline is a professional technology-based enterprise integrating R&D, production, sales and after-sales services. Our products are available nationwide and exported to many countries including Russia, Malaysia, Singapore and Kazakhstan. Supported by stable and reliable product quality, we have earned wide recognition and an excellent reputation among domestic and overseas customers.
We provide a full lineup of pipeline processing equipment, including pipe beveling machines, pipe cutting machines and High-precision flat-mouth machine with complete specifications. Our independently developed high-end internal-expansion servo electric beveling machine has received consistent positive market feedback. Our equipment caters to high-precision pipeline construction demands in aerospace, nuclear power, petrochemical, pharmaceutical, food and other industries. Custom non-standard equipment solutions are also available to meet personalized working condition requirements.
Backed by an experienced team of senior and intermediate technical engineers, we integrate international advanced technologies with independent innovative craftsmanship to deliver top-tier quality equipment. We optimize and upgrade product performance every year to adapt to evolving process standards for diverse construction scenarios, ensuring superior equipment precision, stability and durability.
With mature large-scale manufacturing capabilities, sufficient annual output and abundant spare parts inventory, we guarantee efficient order delivery and prompt after-sales maintenance response. Leveraging years of on-site experience in pipeline installation, maintenance and beveling construction, we deliver one-stop integrated services including equipment supply, on-site construction and after-sales support to fully resolve customers' engineering challenges.
A: This High-precision flat-mouth machine is specially designed for high-precision facing of thin-wall stainless steel tube ends, suitable for end facing of various ultra-pure thin-wall stainless steel tubes.
A: Processing diameter range: 6.35-101.6 mm.
A: No burrs remain on the machined end face, and the tube end is perfectly perpendicular to the tube axis.
A: Equipped with imported motor, it features stable operation and long service life.
● The High-precision flat-mouth machine is covered by a 12-month free warranty from the date of acceptance, implementing Xianjin Pipeline's long-standing service philosophy and operation-guarantee service commitment.
● In case of equipment failure within the warranty period, the Seller provides free technical consultation and maintenance services. Telephone reply shall be given within 2 hours for inquiries, and written reply within 8 hours. On-site service personnel will be dispatched as required: arrive on-site within 24 hours for distances under 800km and within 48 hours for distances over 800km. Service staff will not leave the site until the fault is resolved and the customer is satisfied.
● After the warranty expires, telephone response will be made within 2 hours upon receipt of service notice. If the fault cannot be eliminated via telephone guidance, technicians will be dispatched to site for maintenance and troubleshooting in accordance with the above time limits.
