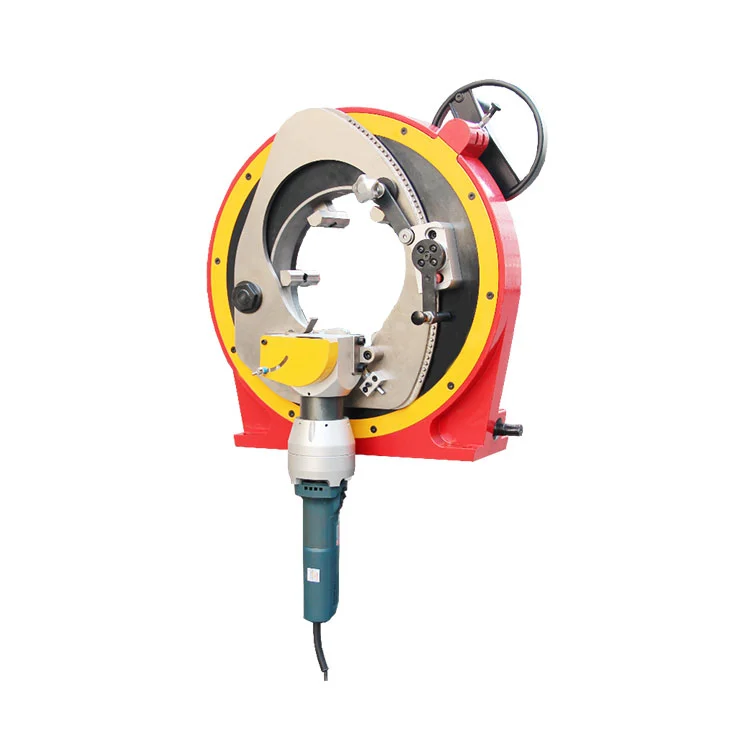

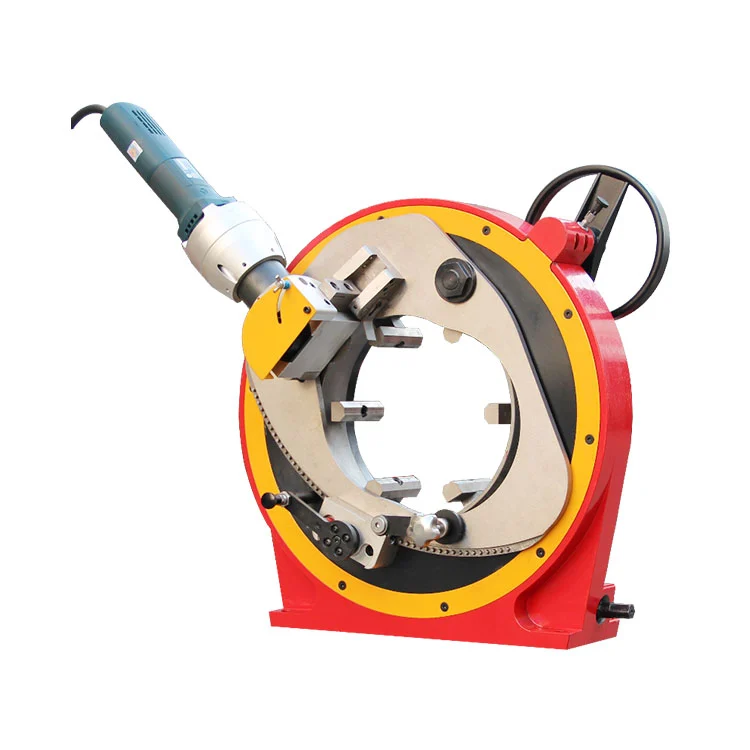

Powered by a 1050W motor, the lightweight planetary pipe cutting machine delivers strong power and produces highly perpendicular cutting surfaces that meet automatic welding standards. It is applicable for pipe wall thickness ranging from 1 mm to 8 mm. Equipped with dedicated HSS series blades, which are also compatible with German +GF+ and French AxxAIR pipe cutters. Manufactured from premium tool steel and cobalt-alloy steel via special processes, the blades can cut various standard metallic materials.

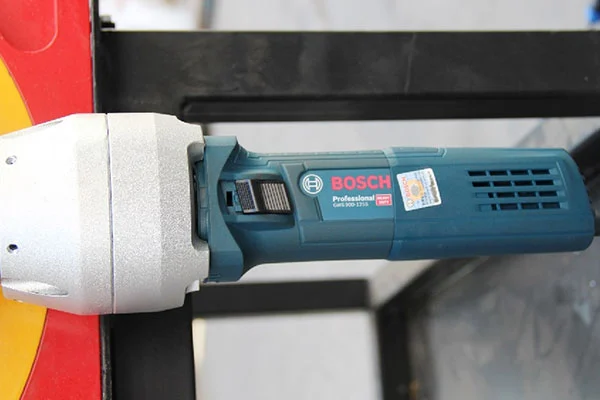

Motor Configuration: Variable motor speed to match different pipe wall thicknesses. Equipped with air cooling and temperature control protection for long service life.

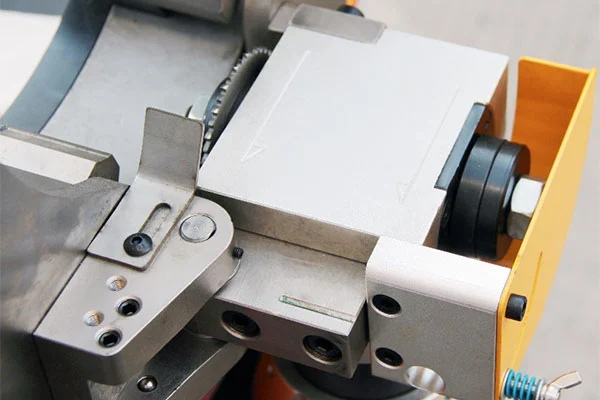

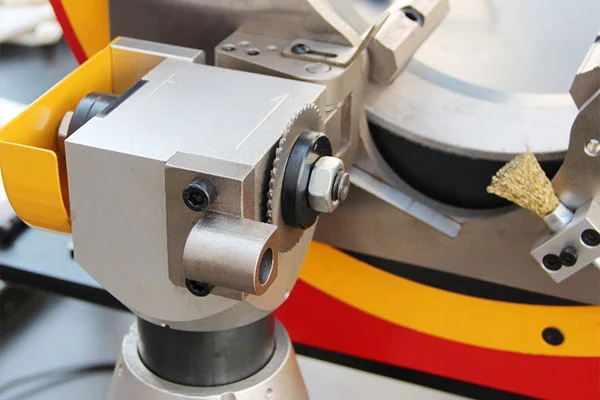

Cutting & Beveling Process: The blade cuts inward-outward at one optimal point. Mount the machine on the workbench, clamp the pipe, then rotate the cutting/beveling tool once to finish cutting or beveling. Special planetary bevel tools are available for pipe beveling.

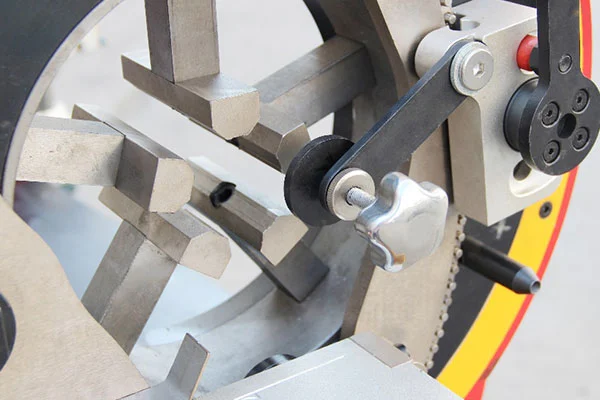

Clamping & Adjustment: Multi-point clamping prevents pipe deformation. Pipe diameter can be adjusted quickly within seconds.
Cutting Quality: High perpendicularity of cut ends, meeting requirements for automatic welding.

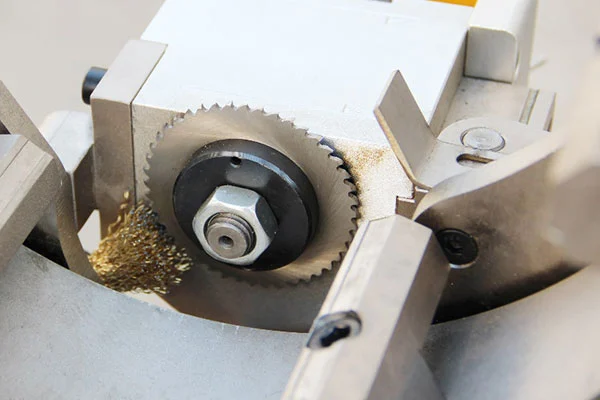

Blade Specifications: Blades are replaceable quickly. HSS blades are compatible with German GF+ and French AXXAIR CC120 pipe cutters. Made of premium tool steel and cobalt alloy steel via special processes, suitable for all standard metal materials.

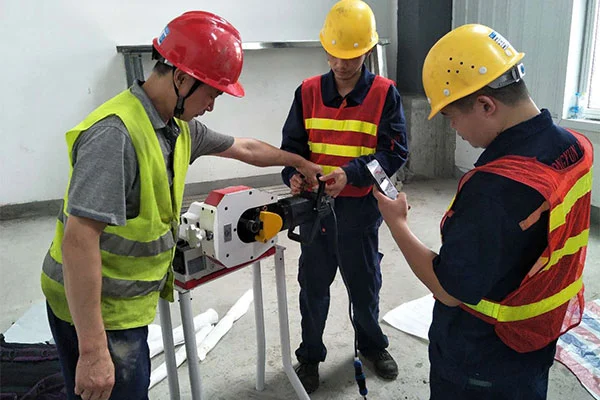

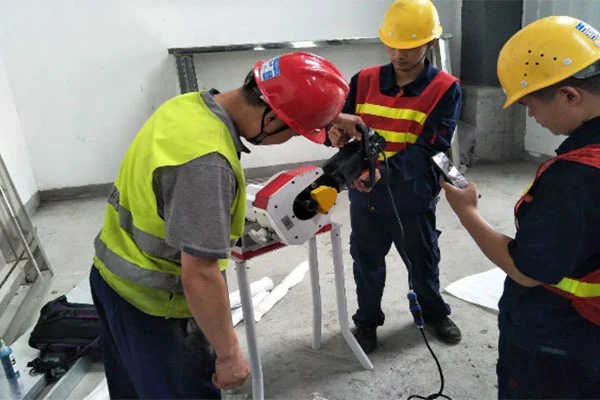

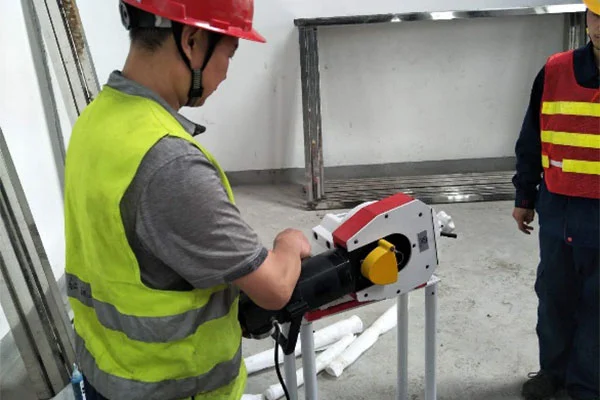

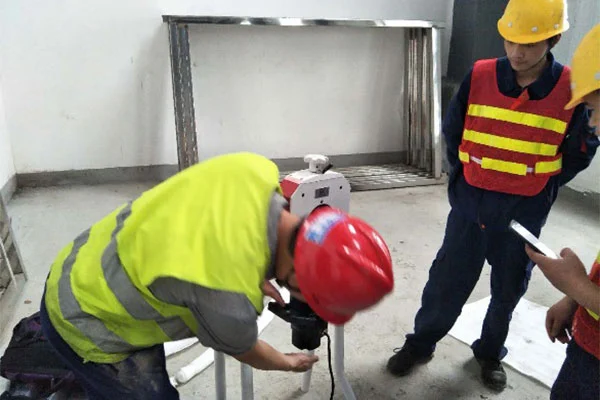

Application Scope: This lightweight planetary pipe cutting machine processes stainless steel, carbon steel, alloy steel and other metals. It is widely applied in petrochemical, power, shipbuilding, water treatment, brewery, beverage, dairy and pharmaceutical industries.
Lightweight planetary pipe cutting machine (X-120T)
| Machining Range | 13-120mm |
| Machining Wall Thickness | 1-8mm |
| Motor Power | 1050W |
| Packing Dimension | 143*366*383 |
| Machine Weight | 47KG |
| Voltage | 220V |
| Number of Jaws | 4 |
| Blade Options | 1.5-2.5 6872 2.5-5 6844 |
| Applicable Materials | Thin-walled stainless steel pipes, stainless steel pipes, low-alloy and alloy steels, high-alloy pipes, cast iron, non-ferrous metals (copper, aluminum), plastics, etc. |
Lightweight planetary pipe cutting machine (X-170T)
| Machining Range | 20-170mm |
| Machining Wall Thickness | 1-8mm |
| Motor Power | 1050W |
| Bevel Angle | 30° |
| Packing Dimension | 143*366*383 |
| Machine Weight | 66 KG |
| Voltage | 220V |
| Number of Jaws | 6 |
| Blade Options | 1.5-2.5 6872 2.5-5 6844 |
| Applicable Materials | Thin-walled stainless steel pipes, stainless steel pipes, low-alloy and alloy steels, high-alloy pipes, cast iron, non-ferrous metals (copper, aluminum), plastics, etc. |
| Machining Range | 60-220mm |
| Machining Wall Thickness | 1-8mm |
| Motor Power | 1050W |
| Bevel Angle | 30° |
| Packing Dimension | 143*366*383 |
| Machine Weight | 77 KG |
| Voltage | 220V |
| Frequency | 50Hz |
| Blade Speed | 150-250 RPM |
| Number of Jaws | 8 |
| Blade Options | 1.5-2.5 6872 2.5-5 6844 |
| Applicable Materials | Thin-walled stainless steel pipes, stainless steel pipes, low-alloy and alloy steels, high-alloy pipes, cast iron, non-ferrous metals (copper, aluminum), plastics, etc. |

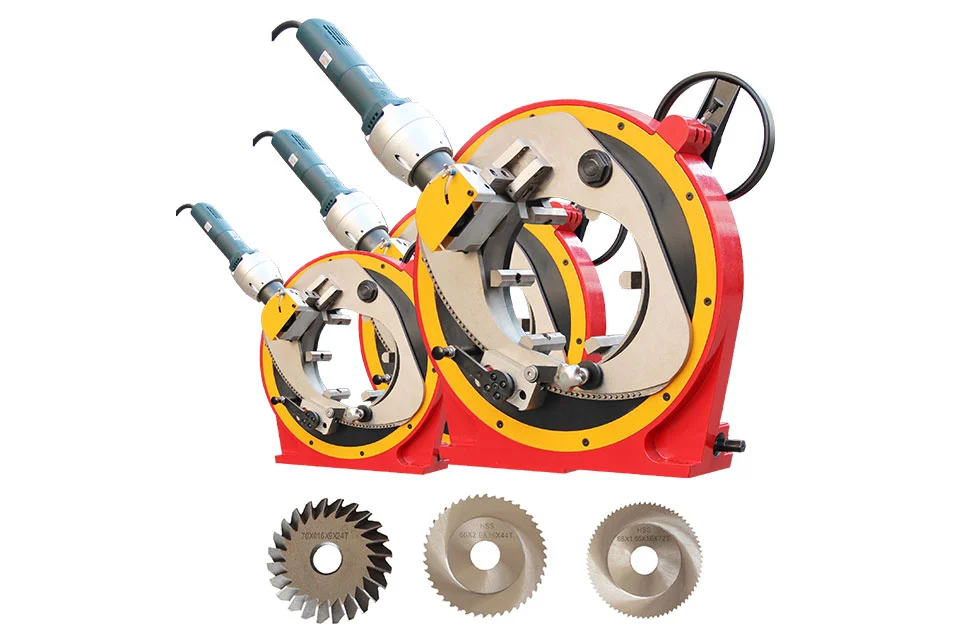

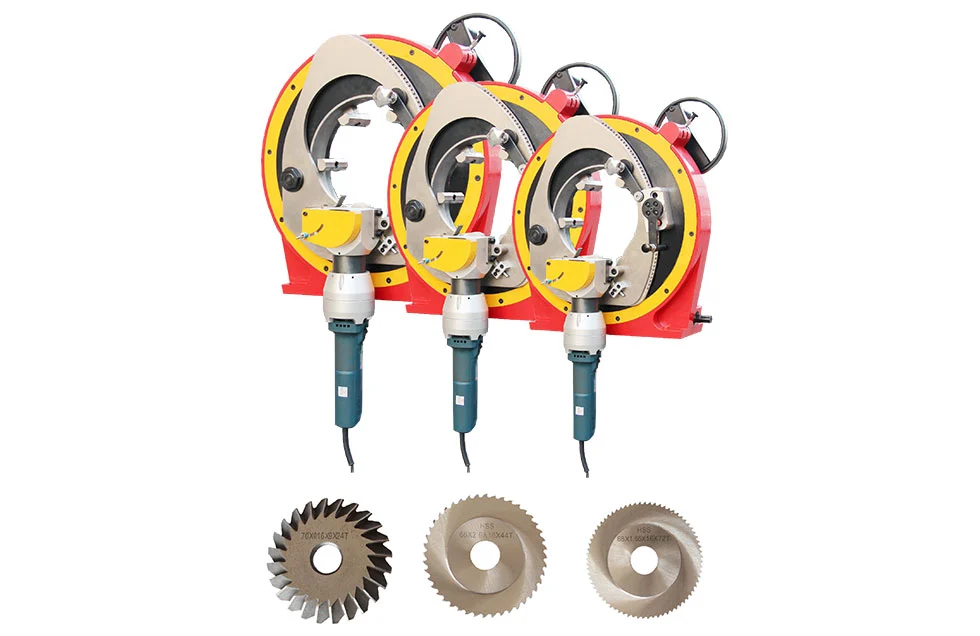

A: This lightweight planetary pipe cutting machine covers a wide pipe diameter range. Model X-120T works for pipe diameters from 13mm to 120mm; X-170T from 20mm to 170mm; X-220T from 60mm to 220mm.

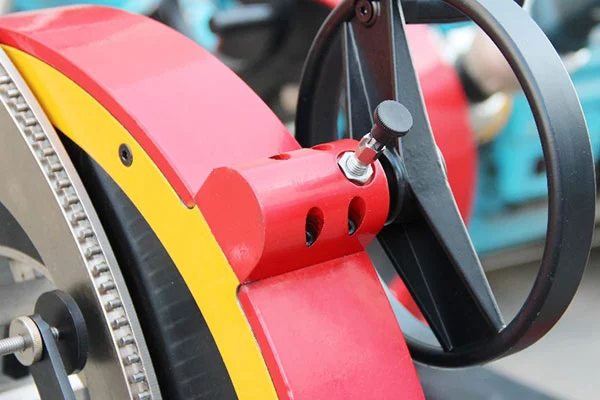

A: The lightweight planetary pipe cutting machine has a wide clamping range with no auxiliary clamping required. The main rotating mechanism adopts maintenance-free oil-free bearings for long service life. Multi-jaw clamping prevents pipe deformation. Blades can be replaced quickly. The blade sits close to the cutting point to process short pipes, and the dual-head blade design enables elbow cutting. Fitted with an imported variable-speed motor, it features a roller feed structure that resists iron chip jamming, and a large handwheel for flexible operation.
A: It adopts planetary single-point inside-out cutting, delivering highly perpendicular, burr-free cut surfaces. Multi-point clamping keeps the pipe from deforming. The machined pipe ends fully meet the requirements for automatic welding.
A: Standard equipped with dedicated HSS series blades compatible with German +GF+ and French AxxAIR pipe cutters. Made of premium tool steel and cobalt alloy steel via special processing, these blades can cut all types of standard metallic materials.
