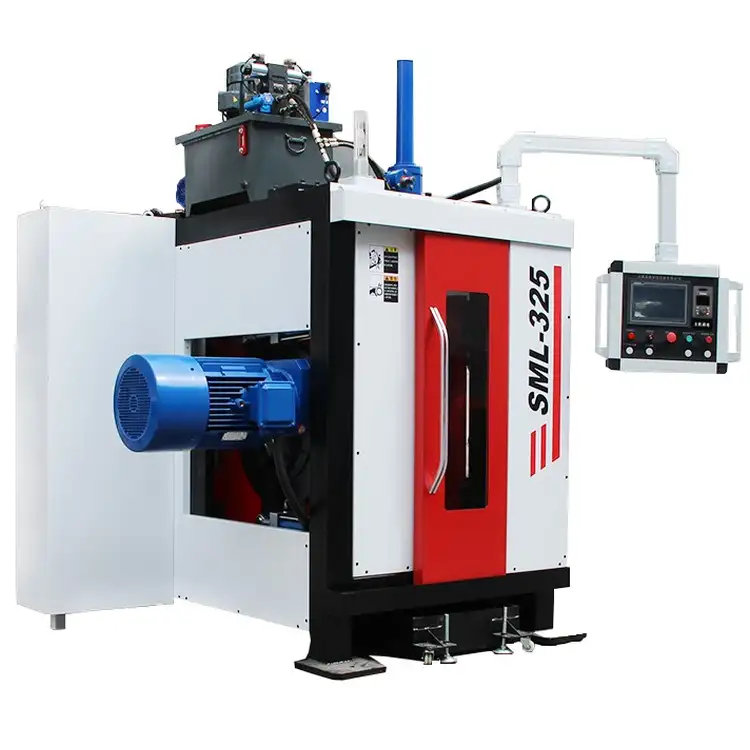

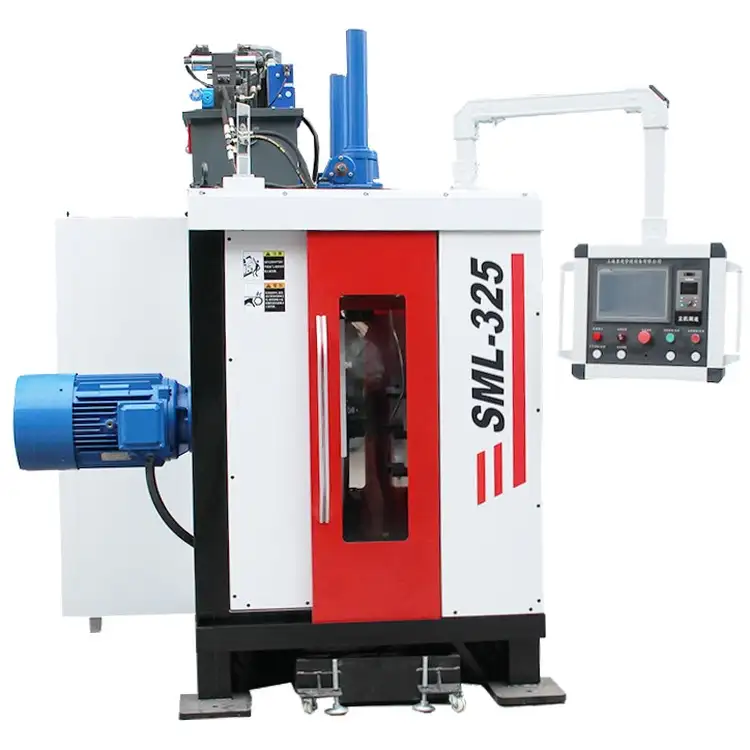

SML CNC Pipe Cutting Machine

The SML CNC pipe cutting machine relies on an integrated PLC automatic control system. The PLC coordinates all machine processes to enable seamless operation of feeding, length setting, cutting, double-sided beveling, laser marking, discharging and short material sorting. This reduces manual intervention and avoids operational errors and safety risks. Changeover parameters can be saved and retrieved with one tap on the touchscreen for stable and reliable production. Suited for high-volume continuous processing of pipes and profiles, it helps increase output, lower costs and improve yield.

Product Features

PLC Full-process Automatic Interlock Control

The SML CNC pipe cutting machine is equipped with an integrated PLC automatic control system. Multiple processes including feeding, length setting, cutting, beveling, marking, discharging and sorting work in linkage. Minimal manual intervention is required to realize automated pipeline operation for pipes and profiles.

Automatic Feeding & High-precision Servo Length Setting

Fitted with an automatic feeding mechanism for bulk loading and feeding to avoid material collision. Servo positioning delivers stable and accurate length control. Product specifications can be switched quickly without manual measuring and marking.

Simultaneous Cutting & Double-sided Beveling in One Clamping

Cutting and double-end beveling can be completed in a single clamping setup. It eliminates positioning errors caused by re-clamping, ensures consistent bevel angle and surface finish, and simplifies subsequent welding preparation.

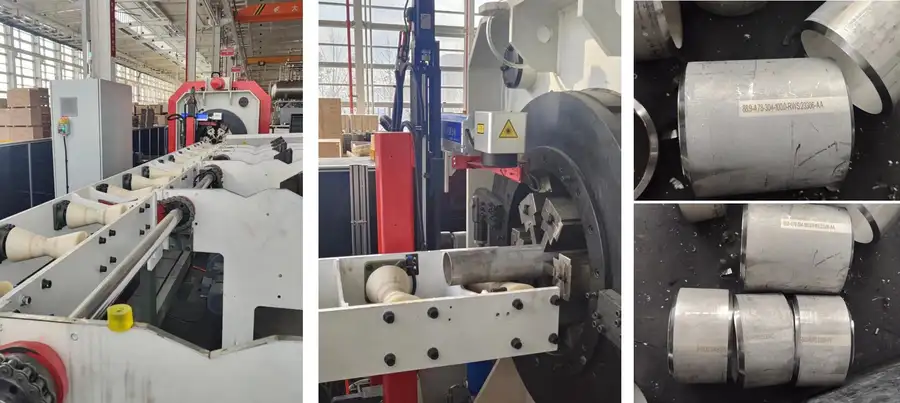

Automatic Laser Marking & Intelligent Sorting Discharge

Integrated with a laser marking unit to automatically engrave batch numbers, specifications and serial numbers for product traceability. It features short-length material identification and rejection. Qualified products and scraps are discharged into separate zones automatically with no manual sorting needed.

One-click Product Changeover for Mass Continuous Production

Process parameters can be saved and recalled with one tap on the touchscreen. It reduces human errors and safety hazards, steadily boosts production capacity, cuts labor costs and improves the yield rate.

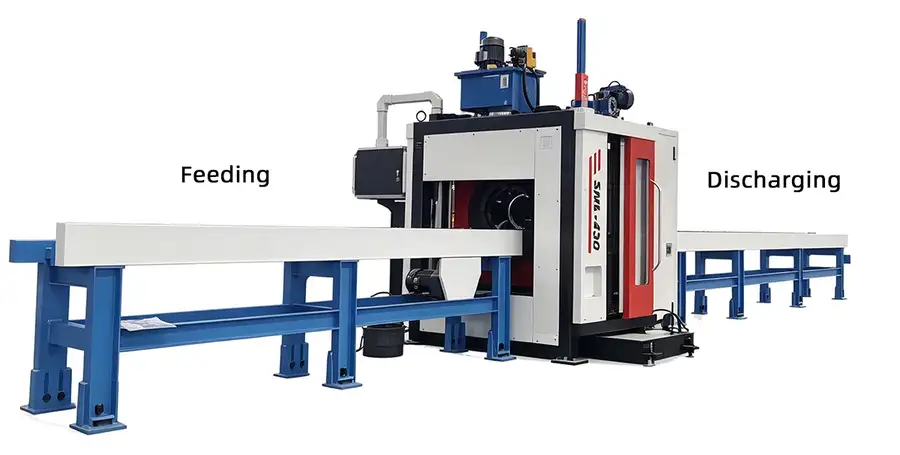

SML Series Main Unit Drawing(Feeding & Discharging Optional)

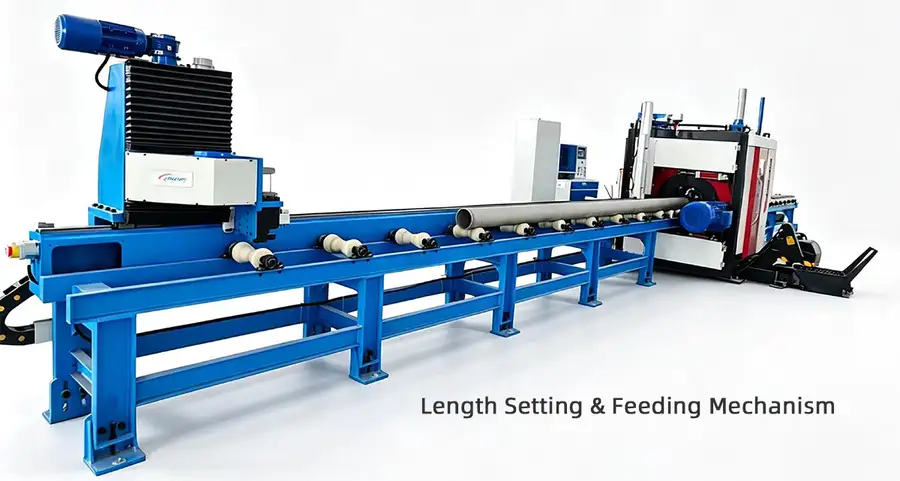

SML Series Length Setting Mechanism (Optional)

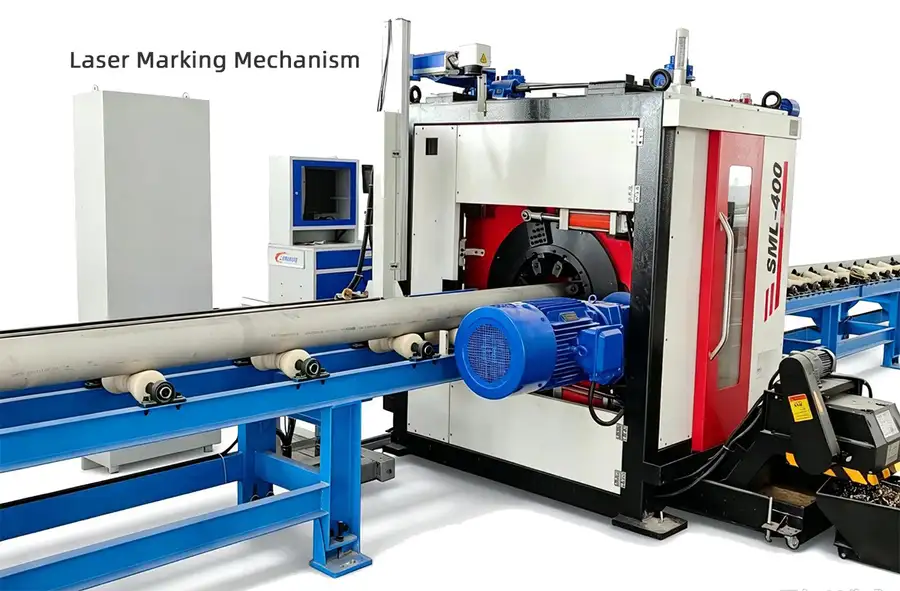

SML Series Laser Marking (Optional)

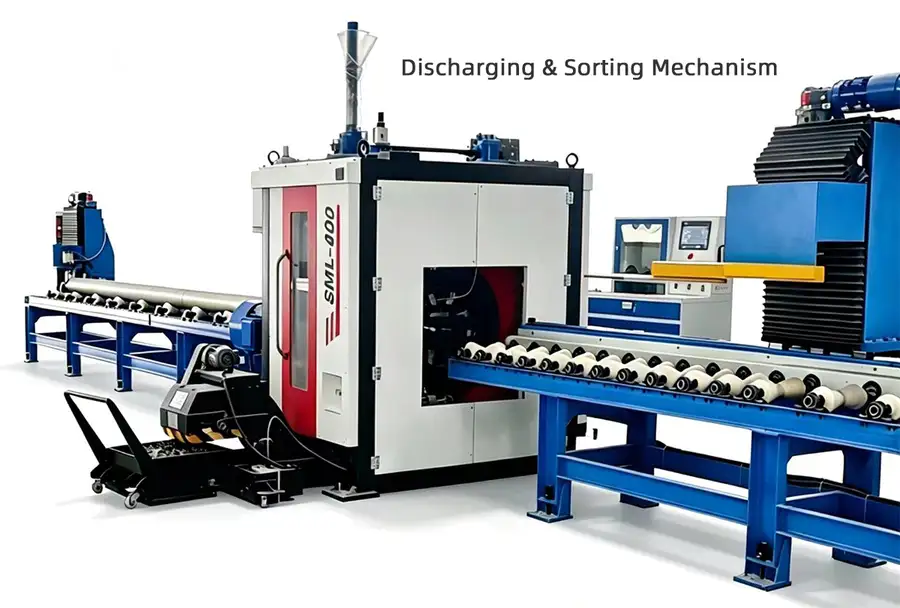

SML Series Discharging & Sorting Mechanism (Optional)

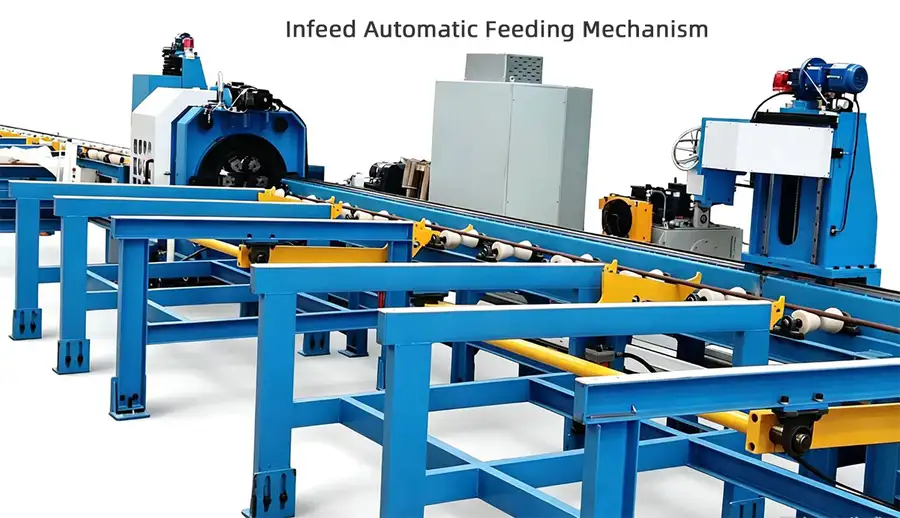

SML Series Automatic Feeding Mechanism (Optional)

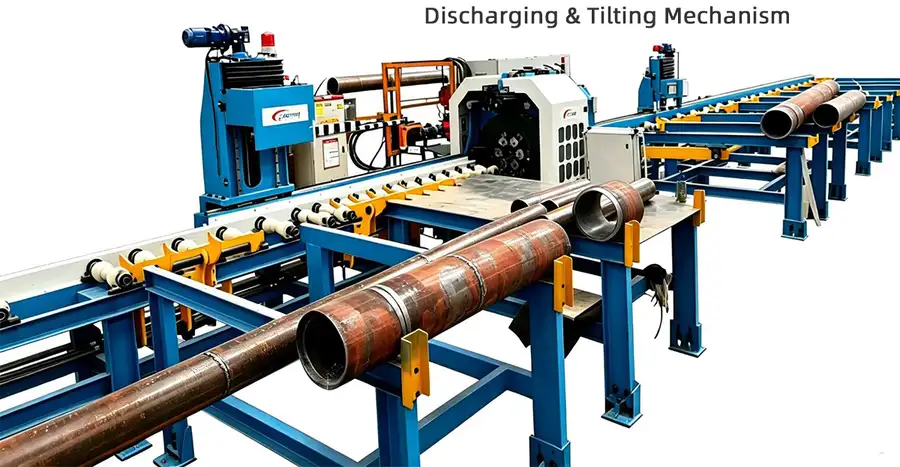

SML Series Discharging & Tilting Mechanism (Optional)

Technical Parameters

Selection Parameters

Recommended Machining Wall Thickness

Carbon steel: Cutting + double-sided bevel up to 18 mm / Single bevel up to 20 mm

Stainless steel: Cutting + bevel up to 15 mm / Single bevel up to 18 mm

Technical Parameters

SML Series Complete Line Layout

SML Complete Layout (Discharging System)

Discharging System Selection Notes

1. Discharge length is optional

2. Whether anti-carbonization treatment is required on the surface of transport wheels

SML Equipment Complete Layout Drawing (Feeding System + Length Setting System)

Feeding System Selection Notes

1. Raw material feeding length

2. Anti-carbonization treatment for wheels

3. Feeding mode

4. Single length-setting dimension

SML Equipment Complete Layout Drawing (Laser Marking System)

Feeding System Rack Selection Notes

1. Raw material feeding length

2. Anti-carbonization treatment for wheels

3. Feeding mode

4. Single length-setting dimension

SML Equipment Complete Layout Drawing (Infeed & Outfeed Storage System)

Infeed & Outfeed Storage System Selection Notes

1. Raw material length

2. Max. and min. discharge length

SML Equipment Complete Layout Drawing (Infeed & Outfeed Tilting and Sorting System)

Infeed & Outfeed Tilting and Sorting System Selection Notes

1. Raw material length

2. Maximum and minimum discharge length

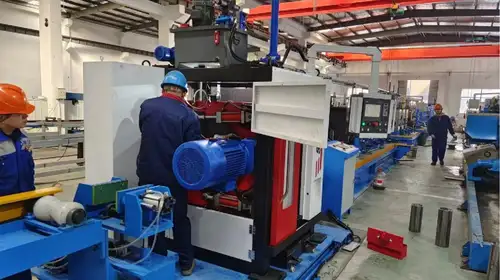

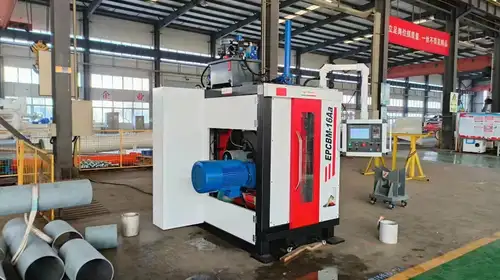

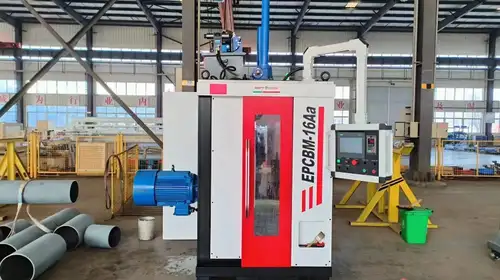

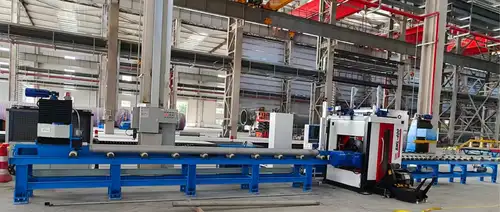

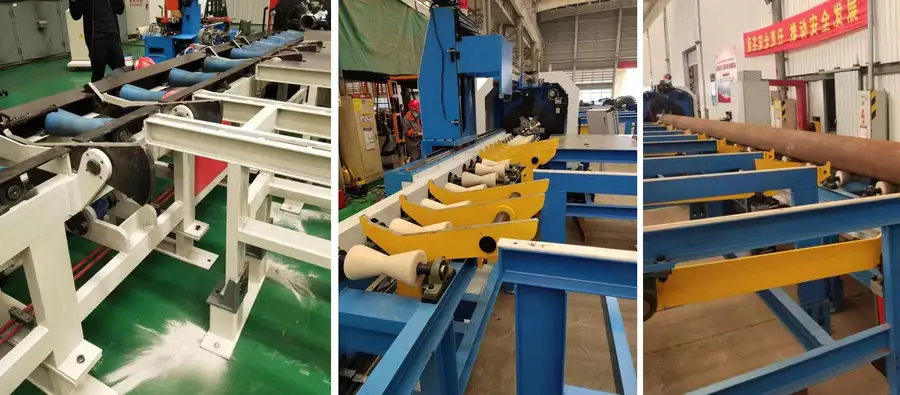

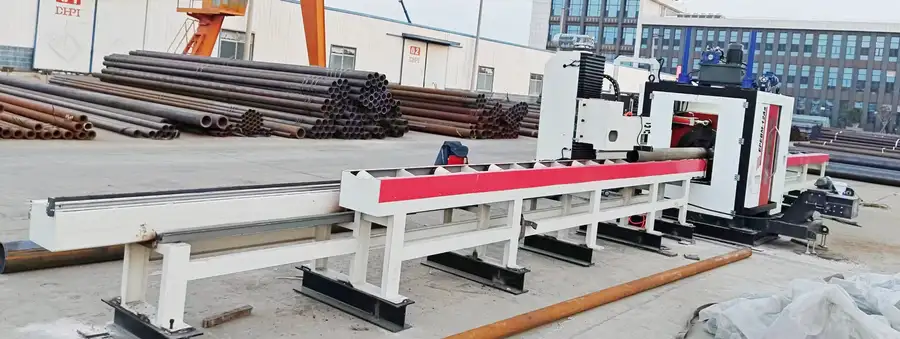

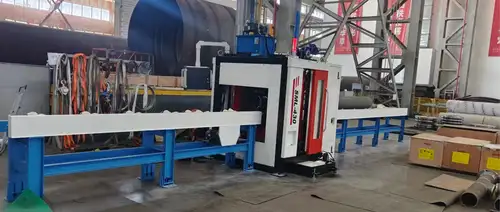

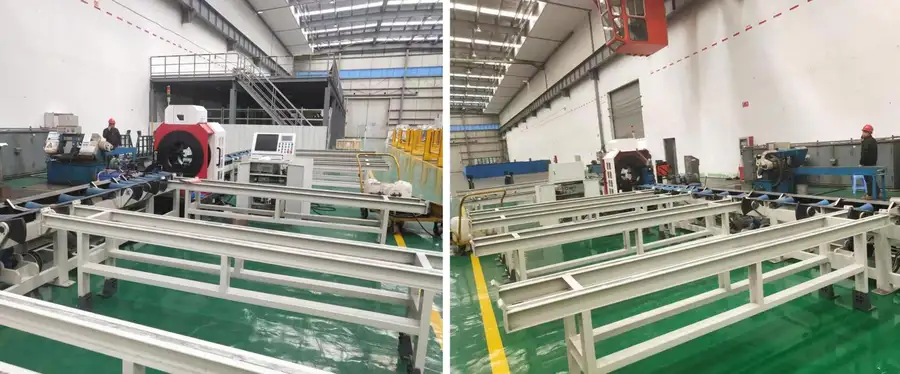

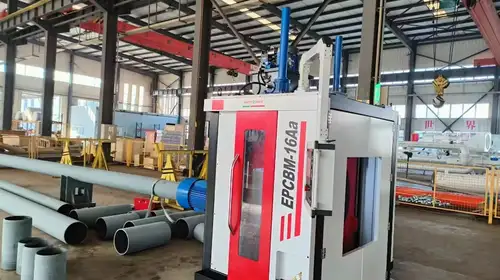

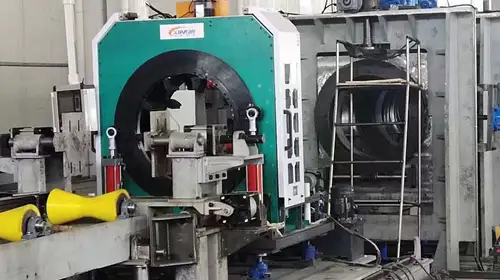

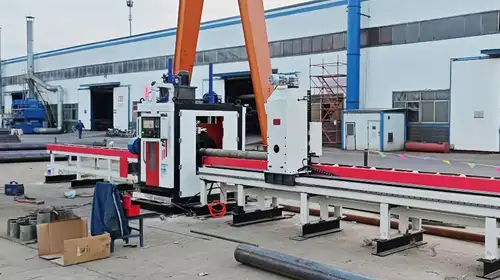

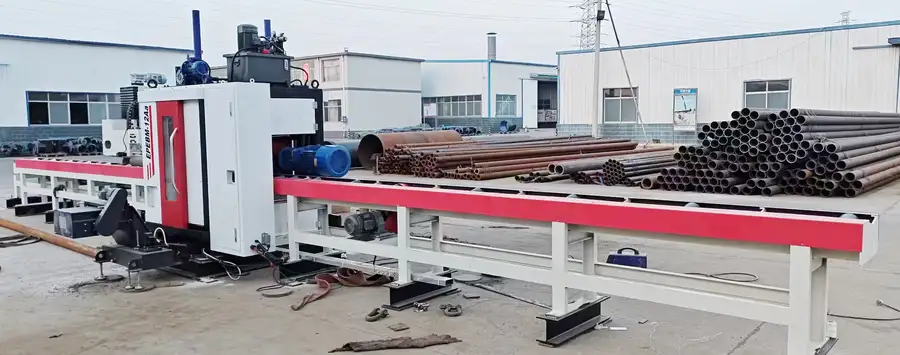

On-site Application Cases

FAQ

Q: What control system does the SML automated equipment adopt and what functions can it realize?

A: This SML CNC pipe cutting machine adopts an integrated PLC automatic control system with coordinated processes, enabling full-process automation from raw material feeding to finished product sorting and discharging.

Q: What are the process highlights for cutting and beveling?

A: Cutting and double-sided beveling can be completed in one clamping. It avoids positioning errors caused by re-clamping, delivers consistent bevel quality and reduces pre-welding preparation work.

Q: What functions do laser marking and short material sorting provide?

A: Automatic laser marking after machining facilitates material traceability. The system automatically sorts and rejects off-spec short materials without manual picking.

Q: What production scenarios is this equipment suitable for, and what benefits can it bring?

A: It is ideal for high-volume continuous processing of pipes and profiles. Changeover parameters can be recalled with one tap, cutting labor and human errors while boosting output and yield.

After-sales Service

Free Warranty Period: The warranty period for SML CNC pipe cutting machine shall be 12 months from the date of acceptance.

Services within Warranty: Free technical consultation and repair shall be provided for equipment failure or damage. Response to inquiries: telephone reply within 2 hours, written reply within 8 hours. If on-site service is required, experienced engineers will be dispatched within 24 hours for locations within 800 km, or within 48 hours for locations over 800 km. Engineers shall remain on-site until the fault is rectified and customer satisfaction is achieved.

Services after Warranty Expiry: Telephone response within 2 hours upon receipt of service request. If the fault cannot be resolved via telephone guidance, engineers will be dispatched within 24 hours (within 800 km) or 48 hours (over 800 km) to provide on-site repair assistance.

The company adheres to its service philosophy and operation-support service commitment to resolve after-sales issues promptly and efficiently.
