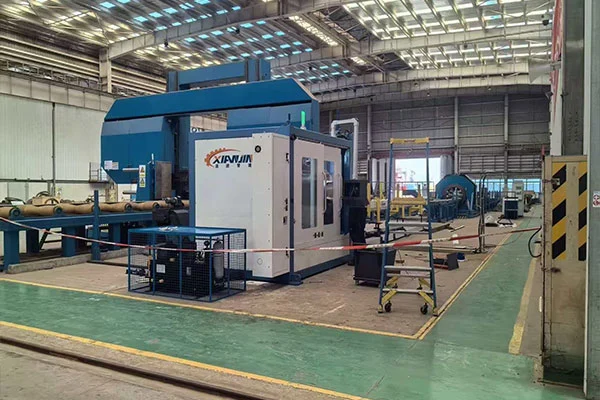

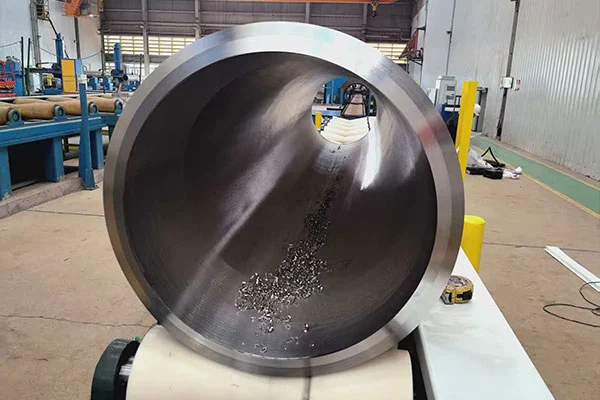

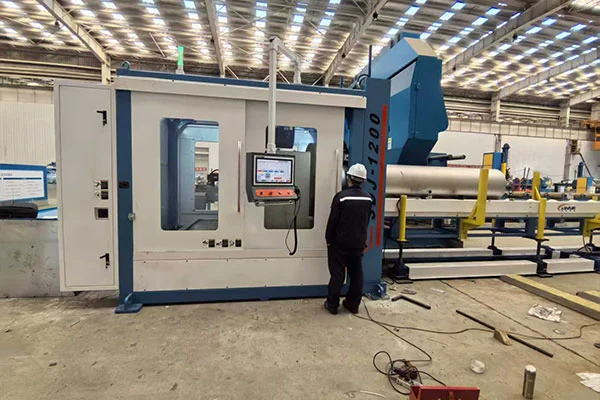

The CNC Elbow Beveling Machine is a high end intelligent upgrade of platform type bevelers. Purpose engineered for high precision special shaped pipe machining, it boasts four core merits: precise control, high efficiency intelligence, broad compatibility and robust safety. Delivering ±0.1°/0.1 mm accuracy, it realizes secure clamping and deformation free processing for Φ50 1500 mm (R=1.5Dr) elbows and 10 150 mm thin/thick wall workpieces.
The CNC Elbow Beveling Machine features a CNC system and high precision servo drives, delivering machining accuracy of ±0.1°/0.1 mm. Full digital parameter control eliminates human induced errors and ensures uniform precision in batch production. It produces premium bevel profiles that meet high grade welding requirements directly, with no secondary grinding and zero rework.
Built in dedicated CNC macro programs enable one click parameter recall and fast bevel transition with zero deviation tool paths. No repeated programming or debugging is needed. Its user friendly operation boosts throughput and yield for special shaped pipes, shortens lead times and fits high volume production.

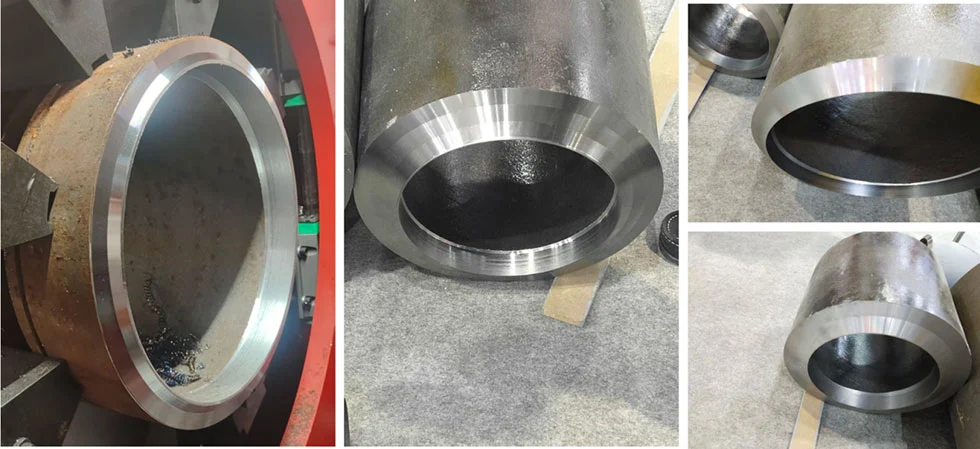

Supports V, double V, U, UV and I type bevels, covering inner bore, external bevel, flat surface and conical inner bore machining. Machining range: pipe diameter Φ50 1500 mm (R=1.5Dr), wall thickness 10 150 mm. Works with carbon steel, alloy steel, stainless steel, low temperature steel and more for versatile application across working conditions.

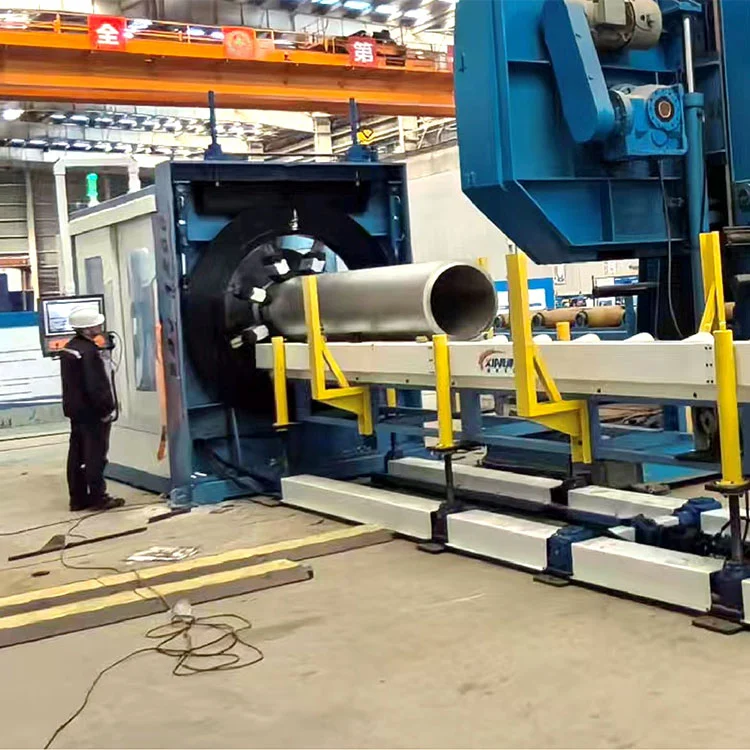

The monoblock high strength cast iron frame delivers robust rigidity and outstanding shock resistance. Standard chain clamping plus self adjusting V base ensures vibration free, deformation free heavy duty cutting. Complete frame protection and rear plate chain slag removal system support safe, stable long term heavy load mass production.

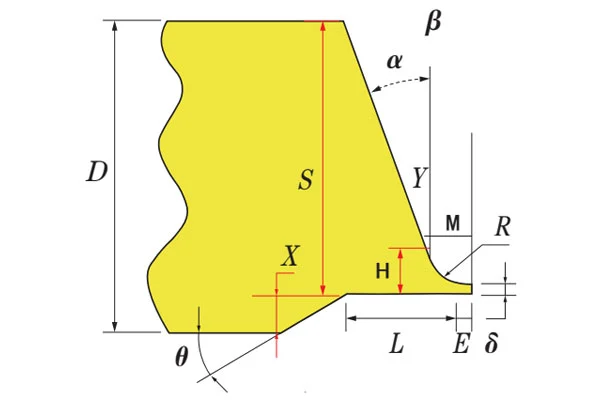

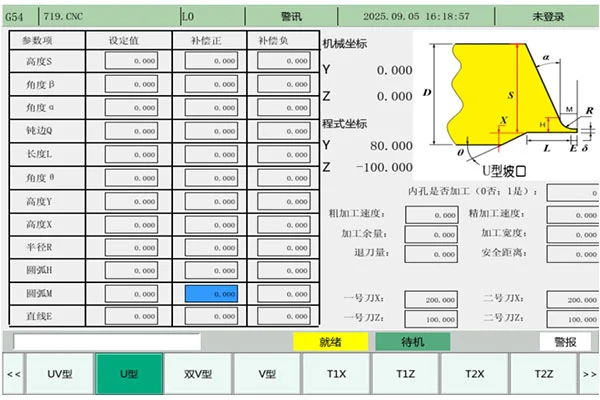

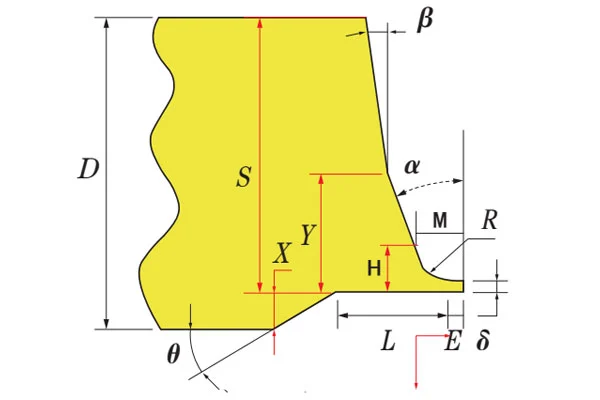

UV‑type bevel
U‑type bevel

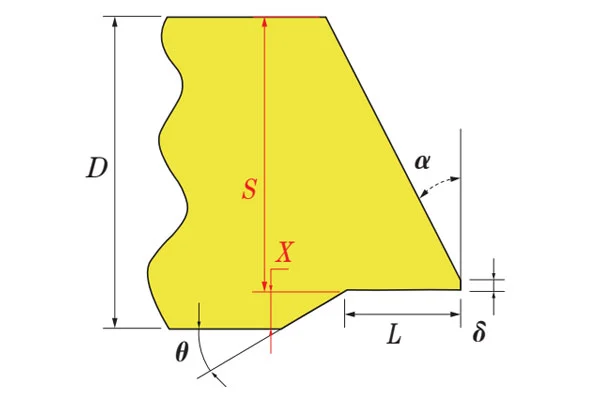

V‑type bevel

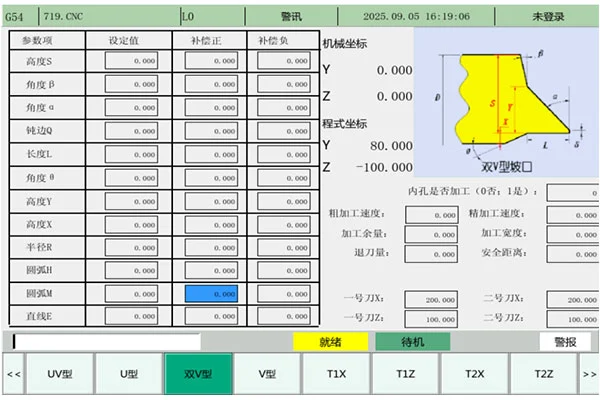

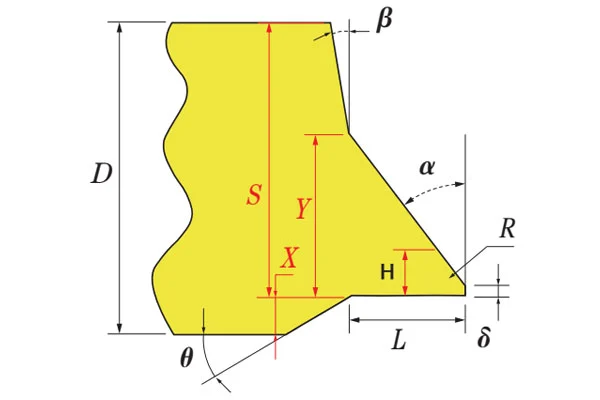

Double‑V bevel
Other bevel types can be customized upon request.

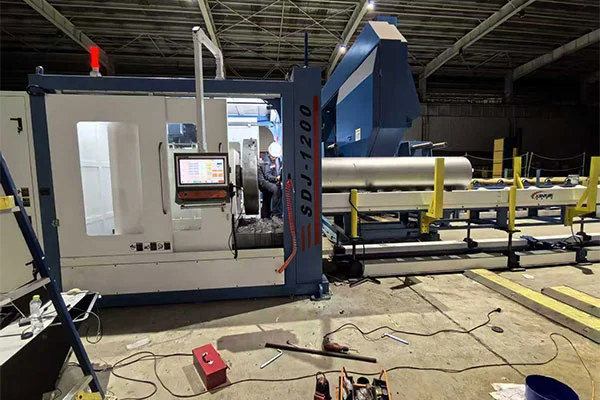

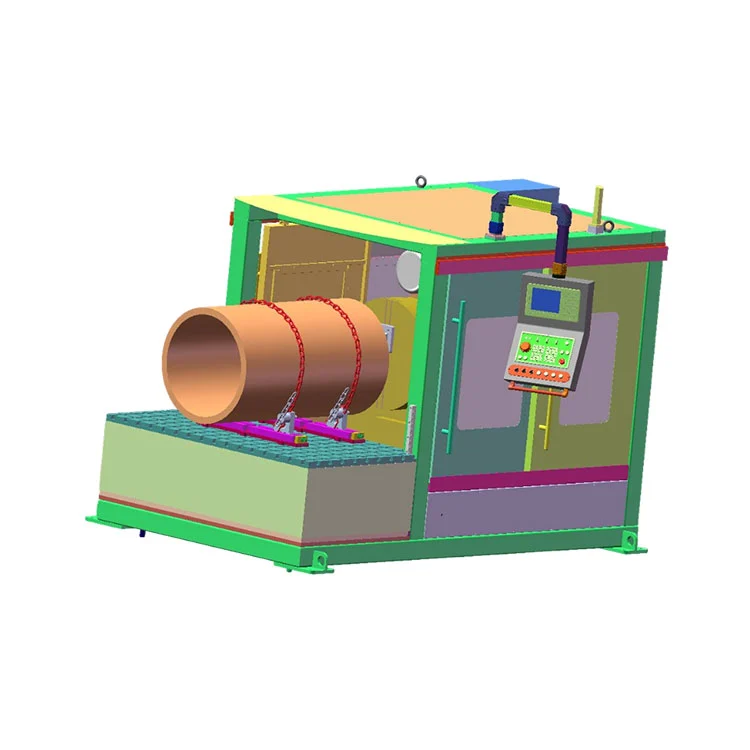

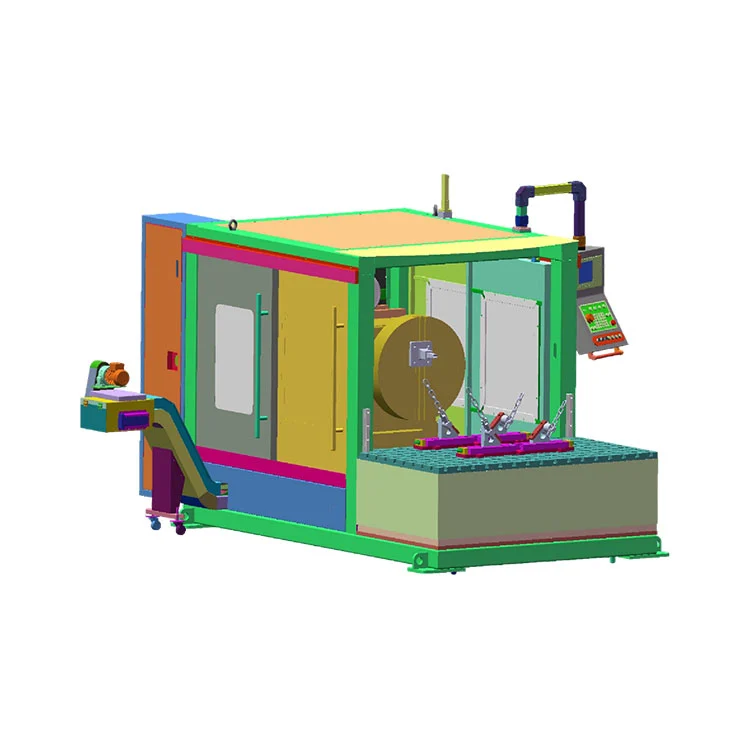

Product Introduction

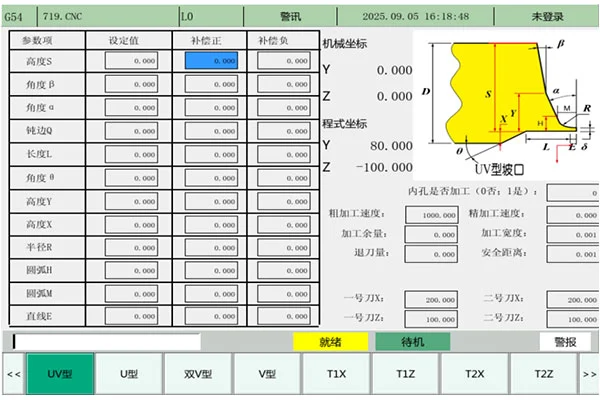

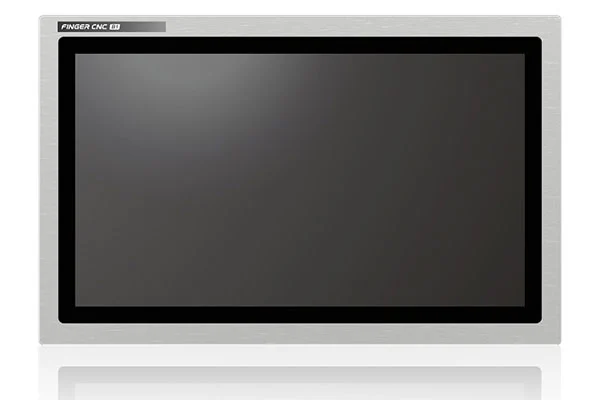

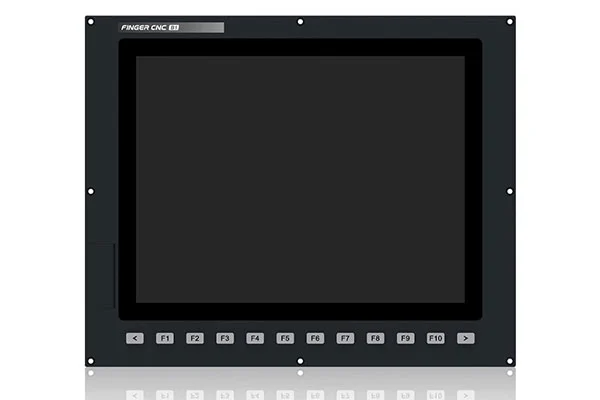

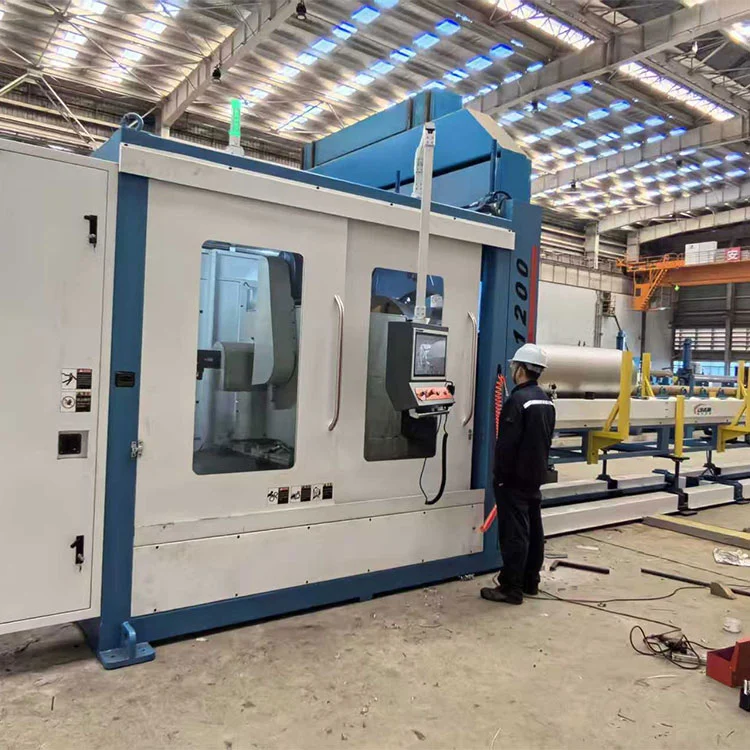

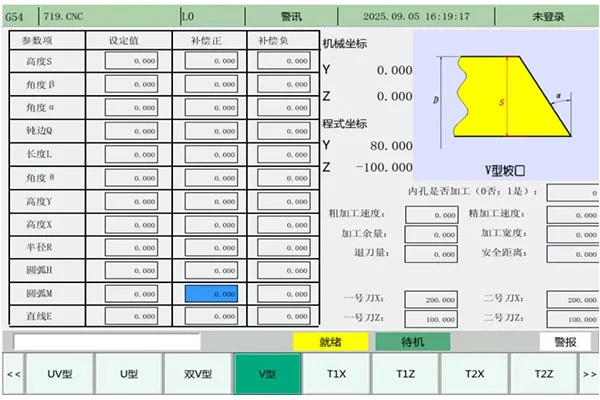

1. The CNC Elbow Beveling Machine equipped with high-definition LCD display screen
2. Set parameters to collect variable data, saved to system memory or SD card. Data can also be stored, analyzed and checked via Ethernet or USB.
3. EtherCAT / MIII bus control for superior real time performance and easy maintenance.
4. IoT enabled for real time processing data access and convenient management.
5. Expandable application software modules; add required plug in modules per customer needs.
6. 2GB RAM + 8GB storage for excellent execution speed.
7. Built around high precision, high efficiency and great flexibility, the product delivers outstanding performance for diverse applications.
Product Introduction
1. Input Interface: Receives signals from keypad, sensors, NC programs. Supports USB, serial port and Ethernet for multi device connection & data transmission.
2. Output Interface: Sends control signals to motors, solenoid valves, indicators to control machine movement and status. Signal format matches actuators for reliable execution.
3. Display Unit: LCD / touch screen for HMI, NC programs, parameters, machine status and alarm display for easy operation & monitoring.
4. Communication: Connects to host computer for remote monitoring, program transfer and system upgrade; supports multi device wired networking for collaboration & centralized management.
5. Advanced multi core CPU and super computing grade platform deliver ultra smooth operation.
6. 2GB storage ensures stable program execution for various tasks.
7. High anti interference design, passed 4.5KV EFT test and CE certification.
| Xianjin Pipeline | VS | Domestic Competitors |
| Adopt rear‑mount servo motor for feeding and retracting, delivering high processing efficiency 1‑2 times higher than competitors with more stable performance. | Feed Mechanism | Front‑mounted motor: slow tool retraction leads to low efficiency; rear slip rings suffer high failure rates. |
| The tool‑post feed mechanism adopts hard‑rail design, achieving precision of ±0.1. | Feed Mechanism | Some manufacturers adopt linear rail connections with accuracy ranging from 0.5‑2 mm. |
| Full‑enclosed machine protection for enhanced operational safety. | Safety Guard | Semi‑front‑end protection causes flying metal chips. |
| Gear shifting combined with spindle variable‑frequency speed control provides greater torque. | Spindle Housing | Only spindle variable‑frequency speed control is available, resulting in low torque for low‑speed machining. |
| High‑power 2.3 kW feed motor enables processing capacity twice that of peer products. | Feed Mechanism | Low‑power front‑mounted motor delivers low idle travel speed. |
| All gears inside the gear box are ground. | Spindle Housing | Some manufacturers use directly hobbed gears, generating heavy noise. |
| The main unit is of integral casting structure. Hard rails are adopted for the full series, ensuring excellent equipment rigidity. | Main Unit | Linear rails are used by certain competitors. |
In summary, the overall efficiency of the CNC Elbow Beveling Machine is 1 2x higher than comparable competitors, with its processing accuracy 5 10x superior.
| Model | SDN-400 | SDN-600 | SDN-800 | SDN-1200 | SDN-1500 | ||||
| Processing Range | Φ30-Φ457 | Φ80-Φ630 | Φ200-Φ830 | Φ300-Φ1200 | Φ500-Φ1500 | ||||
| Processing Wall Thickness | 3-100mm | 3-120mm | 3-150mm | 3-200mm | 3-200mm | ||||
| Bevel Type | V, Double‑V, U, UV, I types, etc. (Other bevel types are optional upon request) | ||||||||
| Clamping Mode | Standard chain clamping (2 adjustable support bases as standard configuration) | ||||||||
| Control System | Taiwan Yida (other control systems are optional) | ||||||||
| Suitable Processing Materials | Carbon steel, alloy steel, stainless steel, low‑temperature steel, etc. | ||||||||
| Main Motor Power | 4KW | 7.5KW | 7.5KW | 18.5KW | 4KW | ||||
| Feeding Speed | Servo‑controlled (adjustable) | ||||||||
| X‑Axis Servo Motor Power | 2.3KW | ||||||||
| Y‑Axis Servo Motor Power | 2.3KW | ||||||||
| Main Unit Protection Type | Integrated frame protection | ||||||||
| Chip Removal Type | Rear plate‑chain chip removal system (standard) | ||||||||
| Hydraulic Motor Power | 2.2 / 5 (optional) | ||||||||
| Up‑Down & Left‑Right Axis Locking Mode | Manual / Automatic (optional) | ||||||||
| Screen Size | 15‑inch, 19‑inch (optional) | ||||||||
| Main Unit Lighting | Available (RED lighting) | ||||||||
| X‑Axis Repositioning Accuracy | ±0.1 | ||||||||
| Y‑Axis Repositioning Accuracy | ±0.1 | ||||||||
| Main Motor Transmission Mode | Heavy‑duty V‑belt | ||||||||
| Boring Depth | ≤150 mm (standard tool holder: 100) | ||||||||
| Spindle & Cutter Head Speed |
20‑200 rpm (Stepless speed regulation, spindle variable‑frequency speed control) |
||||||||
| Tool Type | CNC standard inserts | ||||||||
| Tool Holder Type | Double‑head turning tool (one tool completes both outer and inner bevel machining) | ||||||||
| Platform Lifting Range | 0-250mm | 0-300mm | 0-350mm | 0-400mm | 0-400mm | ||||
| Fixed Platform Dimension |
1500X1000mm (High‑strength cast‑iron platform) |
1800X1000mm (High‑strength cast‑iron platform) |
2000X1000mm (High‑strength cast‑iron platform) |
2200X1000mm (High‑strength cast‑iron platform) |
2200X1000mm (High‑strength cast‑iron platform) |
||||
| Main Unit Type | Integrated casting | ||||||||
| Overall Dimension | |||||||||
| Equipment Weight | |||||||||
A: The CNC Elbow Beveling Machine covers pipe diameters of Φ50 1500 mm (R=1.5Dr) and wall thicknesses from 10 150 mm. It provides secure, deformation free clamping for elbows, thick wall and thin wall pipes.
A: It enables one click switching between V, double V and U type bevels. Our in house developed CNC macro programs allow quick parameter recall for smooth transitions and accurate tool paths. Capable of inner bore, external bevel and other multi process machining, it eliminates repetitive programming and debugging to deliver custom bevels for special shaped components.

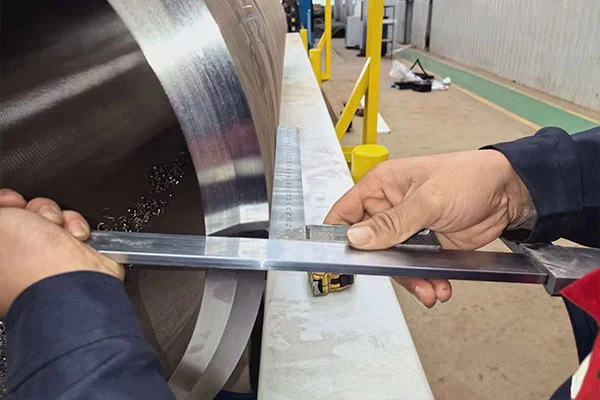

A: Machining accuracy reaches ±0.1°/0.1 mm. Digitally preset parameters for bevel angle, depth and cutting speed remove human operation errors and guarantee uniform, stable quality throughout batch production.

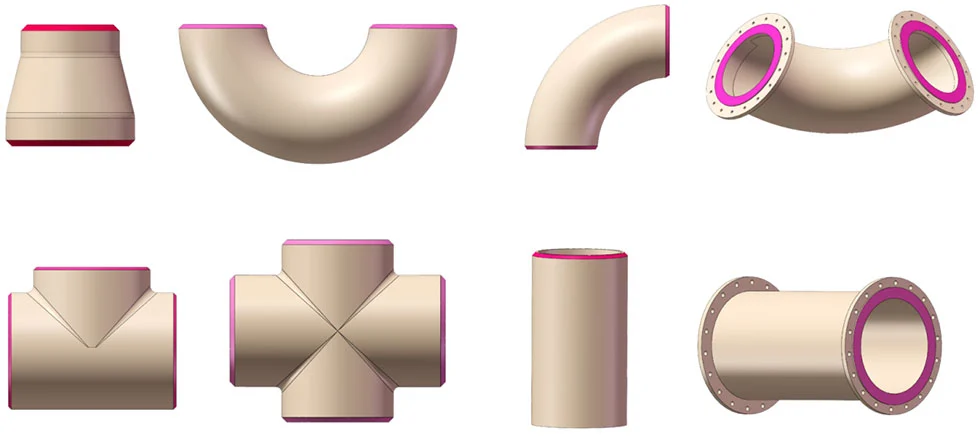

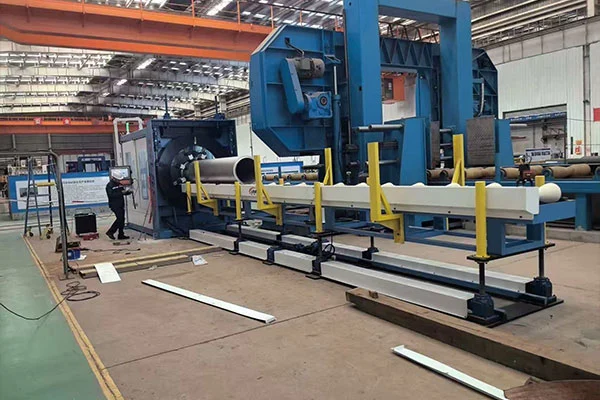

A: Built for high end pipeline projects including oil & gas, chemical and nuclear power sectors. It machines elbows, tees, reducers and crosses, combining heavy load cutting for thick wall workpieces, flexible adaptability for odd shaped parts and consistent batch production results.
• Free Warranty Period: 12 months from the date of equipment acceptance.
• Services within Warranty: Free technical consultation and repair shall be provided for equipment failure or damage. Response to inquiries: telephone reply within 2 hours, written reply within 8 hours. If on site service is required, experienced engineers will be dispatched within 24 hours for locations within 800 km, or within 48 hours for locations over 800 km. Engineers shall remain on site until the fault is rectified and customer satisfaction is achieved.
• Services after Warranty Expiry: Telephone response within 2 hours upon receipt of service request. If the fault cannot be resolved via telephone guidance, engineers will be dispatched within 24 hours (within 800 km) or 48 hours (over 800 km) to provide on site repair assistance.
• The company adheres to its service philosophy and operation support service commitment to resolve after sales issues promptly and efficiently.
