High-Speed Precision Cutting Bevel Machine

The high-speed precision cutting bevel machine is a high-precision pipe processing equipment independently developed by our company. It adopts a self-developed cam rotary clamping system and innovative rotary cutting process, paired with user-friendly control modules to deliver high efficiency. Equipped with a 380V variable frequency motor and stable feed mechanism, it can complete cutting and beveling simultaneously. Tool changes allow it to meet various beveling requirements. It is widely used for pipe cutting and beveling in petroleum, petrochemical, pharmaceutical, metallurgical and other industries.

Product Features

• The high-speed precision cutting bevel machine can produce standard bevels on pipe ends, and also perform cutting and beveling at intermediate positions of pipes.
• Workpieces are burr-free and deformation-free after machining, ready for direct welding.
• Adopting rotary cold cutting technology, the rotating blade cuts around the pipe circumference. It delivers superior cutting quality with perfectly perpendicular machined end faces.
• Suitable for various pipes including carbon steel, stainless steel and alloy steel.
• Multi-point circumferential clamping structure effectively prevents pipe deformation caused by clamping.

Main Functions

• Automatic multi-jaw single-side clamping

• Automatic feed & automatic retract

• Circulating water cooling

• Automatic lifting

• Variable frequency speed control for main unit

• Simultaneous cutting and beveling

• Cutting with single-side bevel

• Hydraulic clamping

Technical Parameter

Selection Parameters

Technical Parameters

Advantage Comparison

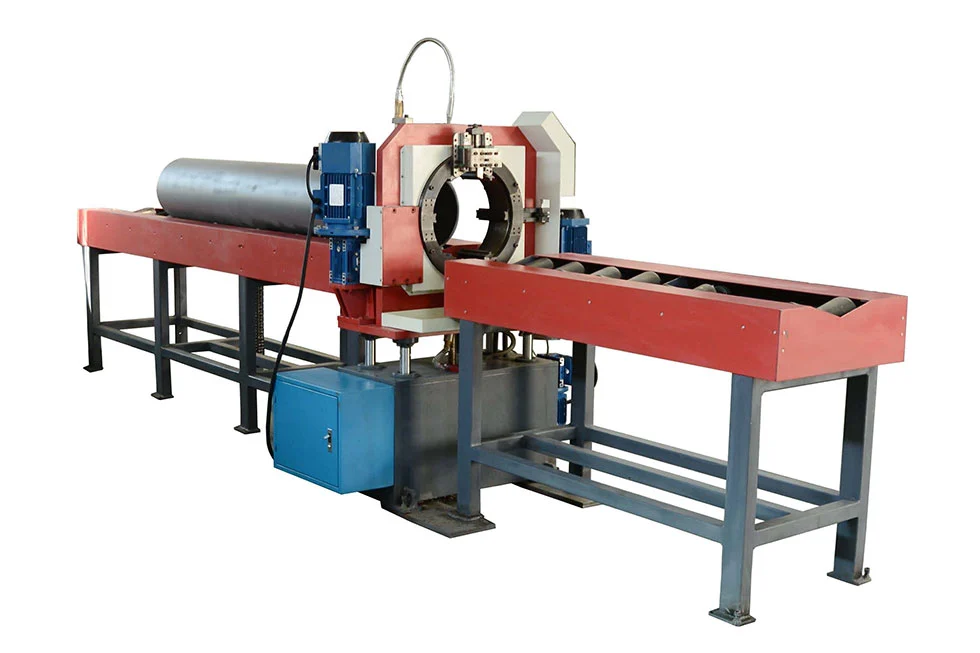

SME Full Line Layout

Guidelines for Material Rack Selection of high-speed precision cutting bevel machine

① Feed Length Option ② Discharge Length Option ③ Anti-Carbonization Treatment Option ④ Feeding Method Option ⑤ Fixed-Length Mode Option

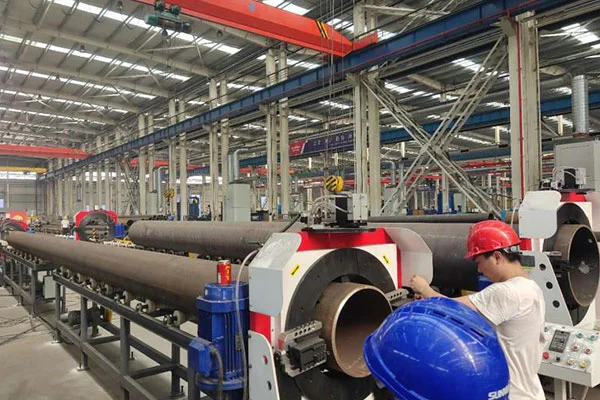

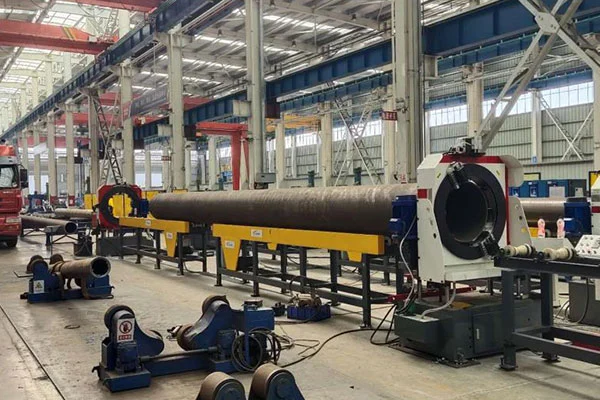

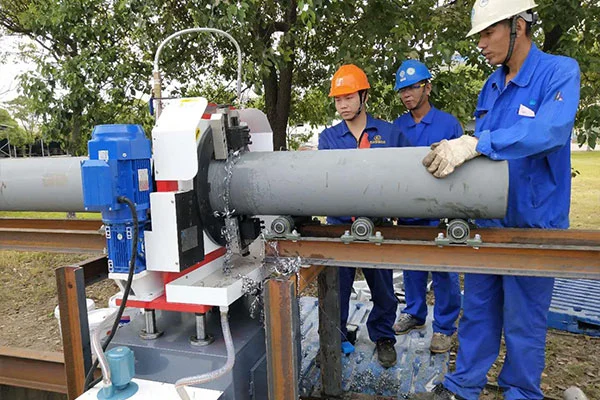

Field Application Cases

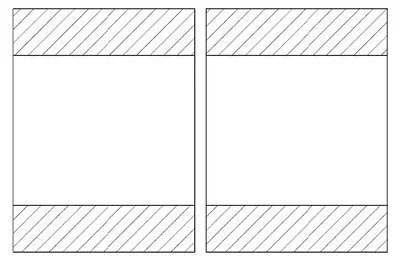

1. Cutting: Basic cutting of pipe raw materials;

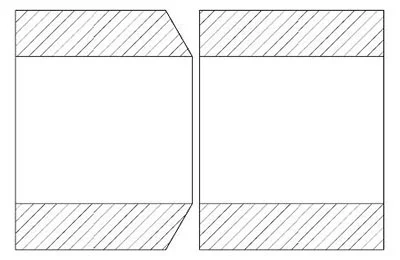

2. Cutting + Beveling: Complete bevel machining on the cut edge simultaneously with pipe cutting;

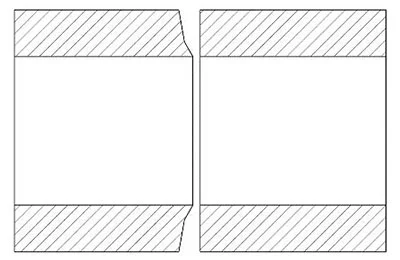

3. Cutting + Compound Beveling: Machine complex compound bevels while cutting;

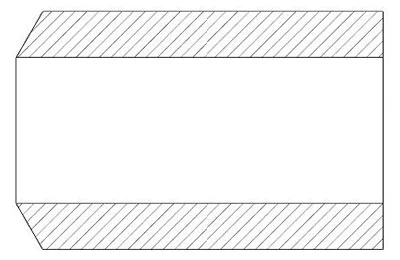

4. V-bevel: Process bevels with V-shaped cross-section;

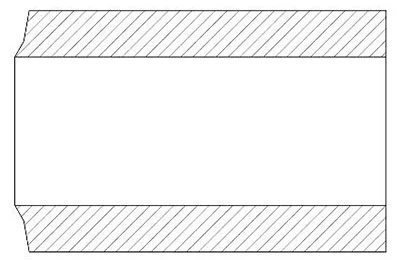

5. Compound Beveling: Independently machine various combined bevels.

FAQ

Q: What core system and process does this machine adopt?

A: The SME high-speed precision cutting bevel machine is equipped with our self-developed cam rotary clamping system, paired with a new rotary cutting process and a user-friendly control system, which greatly improves working efficiency.

Q: What advantages does this beveling machine have over similar equipment?

A: Compared with similar machines, the SME series beveling machine features high efficiency, energy saving and environmental protection. It is especially suitable for hard-to-machine materials such as stainless steel and high-strength steel. It effectively reduces labor intensity and costs, and meets low-carbon and low-energy environmental requirements.

Q: What is the pipe wall thickness processing range of this machine?

A: The SME series beveling machine can process pipes with wall thickness up to 40mm, and can perform cutting and beveling operations on such pipes.
