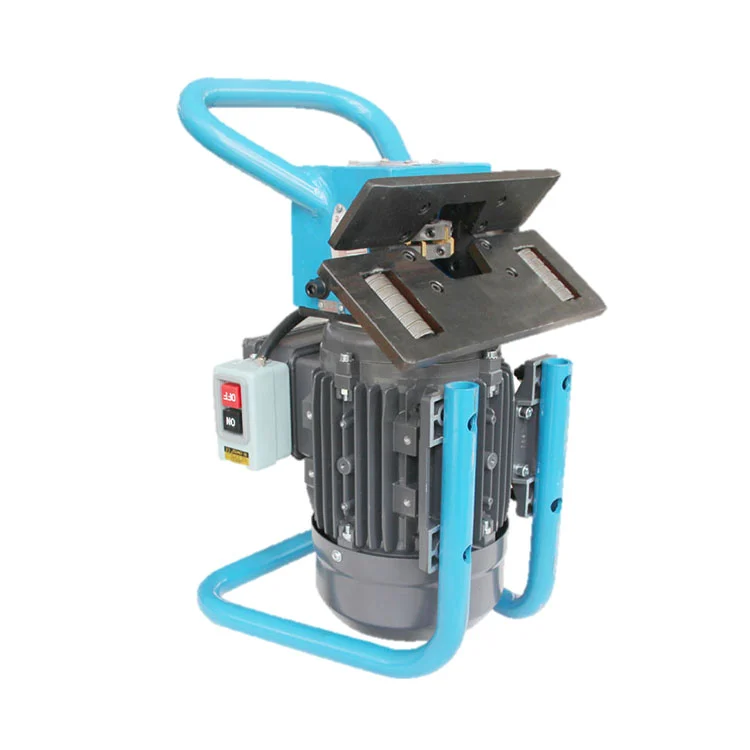

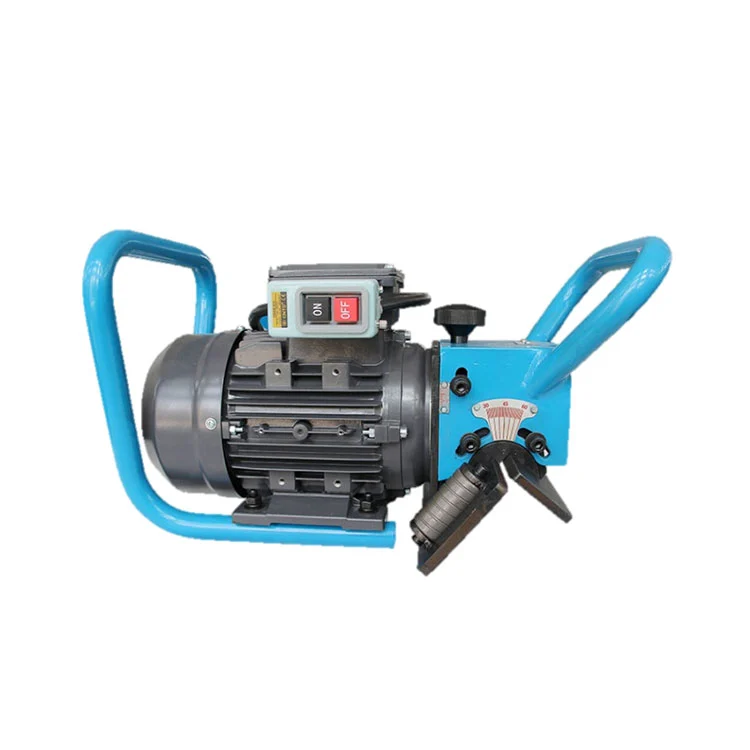

Steel Plate Beveling Machine

The Steel Plate Beveling Machine is designed for pre‑weld metal plate beveling, supporting K, V, X and Y‑type bevels. Fitted with guide rollers for smooth feeding and easy operation, it offers manual angle adjustment from 30°‑60° with bevel depth C0‑C15 mm. Ergonomic handles reduce operator effort.

Product Advantages

1. Powerful Machining

• Heavy‑duty manual feed, high‑speed multi‑cutter cutting
• The Steel Plate Beveling Machine supports K/V/X/Y bevels; works for steel, cast iron, aluminum, chrome steel, hard plastic

2. Accurate Bevel Setting

• Manual angle 30°‑60°, bevel width C0‑C15 mm
• Digital scale for high‑precision fine adjustment

3. Easy Site Operation

• Suitable for indoor, outdoor and confined‑space work

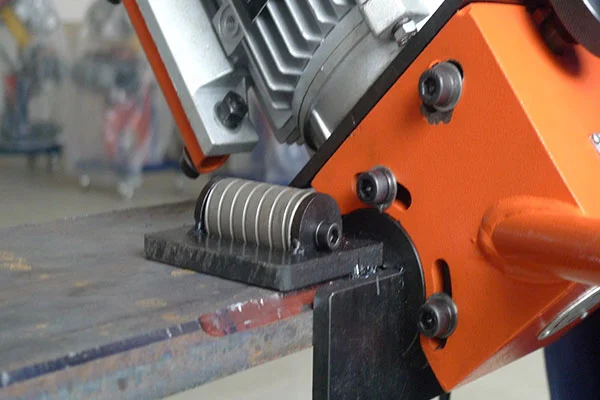

• Smooth feeding by guide rollers; labor‑saving ergonomic handle

4. Safe & Robust Setup

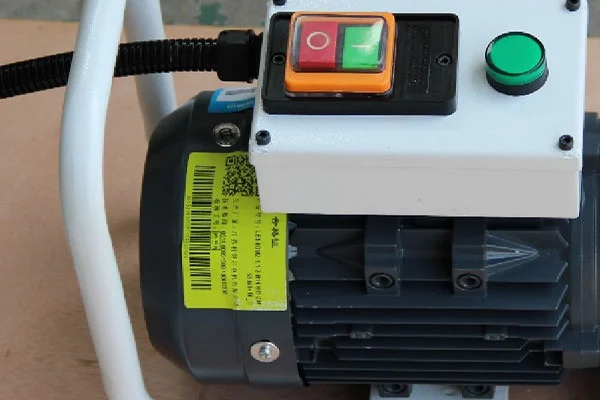

• One‑key soft start & automatic overload protection
• Double‑milling‑head butterfly cutter disc with 12 stacked indexable inserts

Technical Parameters

SKF Steel Plate Beveling Machine

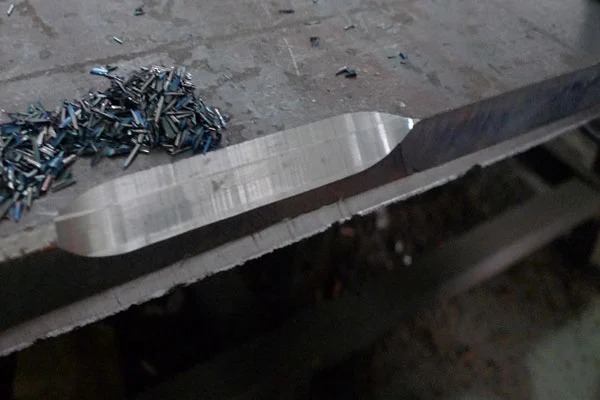

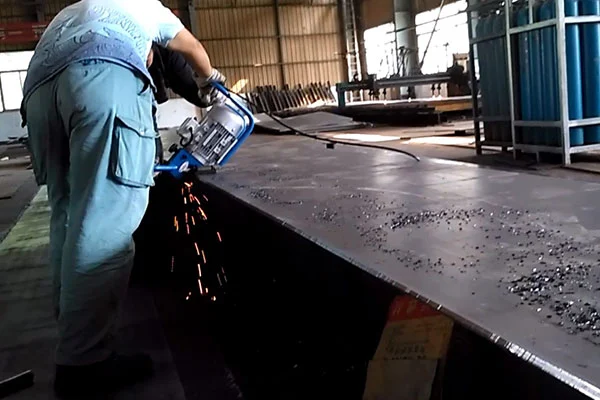

Onsite Application Cases

Why choose us?

1. Integrated Technical Strength

Integrates R&D, design, production, sales and after‑sales service. Supported by senior & intermediate technical staff, we continuously upgrade products and provide custom non‑standard solutions.

2. Comprehensive Product Portfolio

Full range of mechanical cold cutting & beveling machines for pipes and plates. High‑end servo‑driven models gain wide recognition. Products serve aerospace, nuclear power, chemical, pharmaceutical and other pipeline industries.

3. Reliable Supply Capacity

Located in Yangtze River Delta. Plant area around 1000 ㎡, annual output of hundreds‑units per model, sufficient spare‑parts stock.

4. Global Market & Onsite Service

Products sold nationwide and exported to Russia, Malaysia, Singapore, Kazakhstan etc. With rich experience in pipeline installation & maintenance, we undertake onsite pipe cutting and beveling projects.

5. Technical Innovation

Xianjin Pipeline pursues continuous R&D innovation to enhance the stability, efficiency and automation of the Steel Plate Beveling Machine. It streamlines operation, enables automation and human‑machine interaction, and eases operators’ heavy workload from conventional semi‑automatic modes.

FAQ

Q1: What types of bevels can this beveling machine process?

A: The Steel Plate Beveling Machine supports K, V, X and Y‑type bevel machining. It features convenient angle adjustment, high bevel forming accuracy and smooth finished surfaces to satisfy various welding bevel process requirements.

Q2: What is the angle adjustment range and bevel depth of the beveling machine?

A: Manual angle adjustment ranges from 30°‑60°, and the bevel depth covers C0‑C15 mm. Equipped with a digital scale, it enables precise fine‑tuning.

Q3: What are the specifications of the cutting inserts?

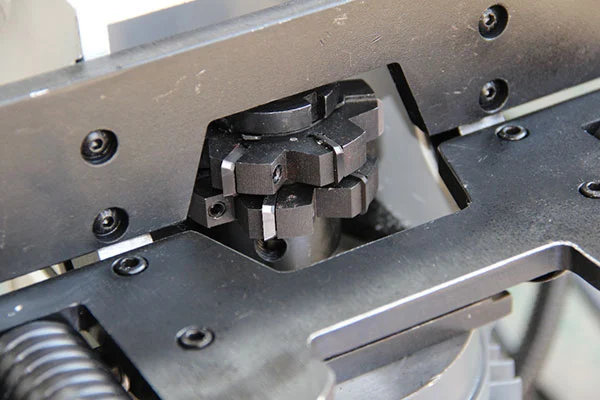

A: It adopts a double‑milling‑head butterfly‑shaped cutter disc fitted with 4‑edged indexable inserts. There are six inserts per set, with a total of 12 stacked inserts.

Q4: What operational advantages does the machine have?

A: Guide rollers ensure smooth and easy feeding. The ergonomic‑designed handles reduce operating effort for simple and convenient overall operation.

Operating Environment

This Steel Plate Beveling Machine is suitable for various conventional industrial working conditions and can operate stably. The equipment has clear requirements for power supply, altitude, temperature and humidity, and seismic resistance level to ensure processing performance and operational safety in different scenarios.

Power supply: 380V, 50Hz

Altitude: below 1000 m

Ambient temperature: 0‑45℃ (indoor operation)

Relative humidity: maximum daily average relative humidity 90%

Seismic intensity: not exceeding Grade Ⅶ
