The steel plate edge beveling machine is used for bevel preparation of metal plates prior to welding. Working on the milling principle, it mills steel plate edges at required angles to form welding‑ready bevels. Fitted with five milling cutters, it delivers high‑speed cutting on plate edges. It supports bevel processing within C1‑18 mm, and features one‑touch soft start and automatic overload protection.
Heavy‑duty auto‑feed beveling tool with adjustable feed speed. Equipped with five milling cutters for high‑speed plate cutting, it delivers bevel processing from C1‑18 mm and fits small flat plate beveling operations.
The steel plate edge beveling machine processes hard‑to‑machine materials such as steel, cast iron, hard plastics, aluminum, chrome steel, stainless steel and high‑strength steel. Cutters and blades can be replaced on demand to adapt to different workpieces.
It enables fast and convenient operation indoors, outdoors and in confined spaces. Built‑in one‑touch soft start and automatic overload protection. The high‑strength polyurethane structure automatically adjusts to uneven plate surfaces for stable machining.
Compared with similar equipment, it features high efficiency, energy‑saving and easy operation. It greatly reduces labor intensity and cuts labor costs, complying with the low‑carbon and low‑energy‑consumption environmental‑protection concepts.

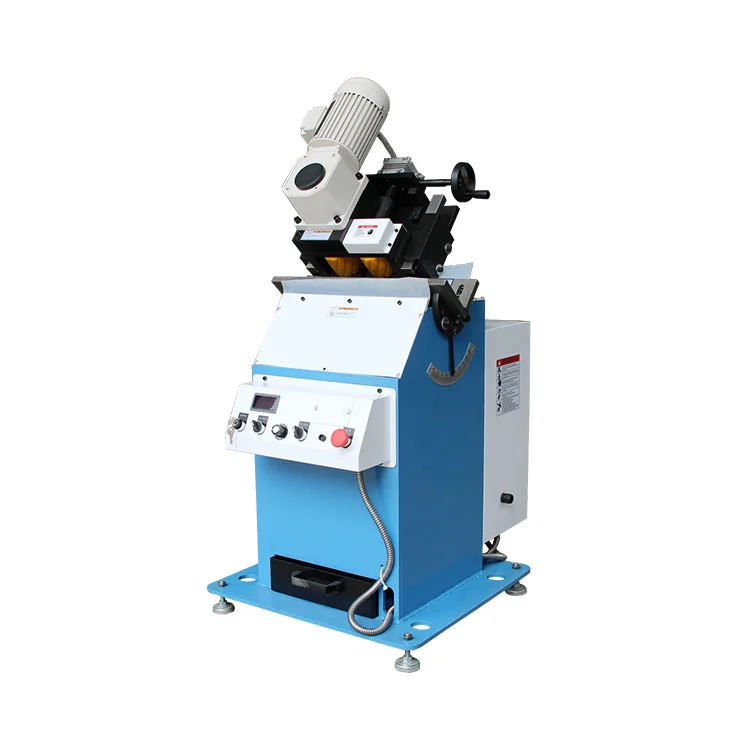

X‑15 steel plate edge beveling machine
| X‑15 steel plate edge beveling machine | |||||
|
Working Motor |
High‑efficiency EU‑standard IEC motor exported by Shanghai Electric Machinery Factory | ||||
| Voltage AC | Power | Frequency | Rated Cutter Head Speed | Power of feed motor | |
| 380V | 3KW | 50HZ/60HZ | 1450rpm/min | 450W | |
| Feeding Mode | Auto‑feed | ||||
| Bevel Angle | 30°‑ 60° | ||||
| Bevel Width | 0‑18 mm (12 mm in single pass) | ||||
| Cutter Head Type | Standard cutter milling type | ||||
| Machine Weight | 125kg | ||||
| Packing Dimension (L×W×H) | 600 × 600 × 650 mm | ||||
Founded in 2012, Shanghai Xianjin Pipeline Equipment Co., Ltd. is situated in the core Yangtze River Delta, integrating R&D, design, production, sales and service. Our products serve nationwide clients and are exported to Russia, Malaysia, Singapore, Kazakhstan and other overseas markets, earning high‑end user recognition worldwide.
We offer a full lineup of mechanical cold‑cutting beveling equipment for pipes and plates: precision CNC bevelers, split‑frame cutting‑beveling machines, internal‑expansion servo‑electric bevelers, planetary pipe cutters, portable stainless‑steel pipe facers, portable and self‑propelled steel‑plate beveling machines.
The steel plate edge beveling machine can customize non‑standard products according to working conditions, and high‑end servo series products have been highly recognized by customers.
Our 1000 ㎡ factory outputs hundreds of units per model annually with adequate spare‑parts stock. The technical team includes 3 senior engineers and 5 intermediate technicians. Continuous product upgrades cater to varied on‑site requirements.
Backed by years‑long pipeline installation & maintenance experience, we supply equipment and undertake on‑site pipe cutting & beveling projects. Committed to efficient, durable integrated pipeline cutting‑beveling solutions, our products cover aerospace, petroleum, chemical, power construction, nuclear power, pharmaceutical and food industries.
A: Developed for pre‑weld beveling of small steel plates, the steel plate edge beveling machine is widely used in shipbuilding, metallurgy, steel structure and other welding manufacturing industries, especially suitable for hard‑to‑machine materials such as stainless steel and high‑strength steel.
A: It delivers high processing efficiency with low operating cost. Simple operation greatly reduces labor intensity and labor expenses. Energy‑saving and eco‑friendly, it complies with low‑carbon production concepts.

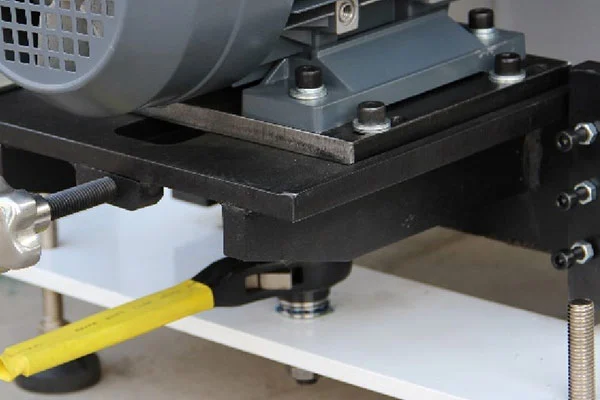

A: The spindle drives cutter disc and downfeed mechanism to adjust bevel size. The travel unit drives rubber wheels for uniform material feeding. High‑strength polyurethane components automatically adapt to uneven plate surfaces to ensure stable beveling.
A: Cutter discs and blades can be quickly replaced. Users may select proper tools according to workpiece materials to complete bevel cutting for diverse materials.
