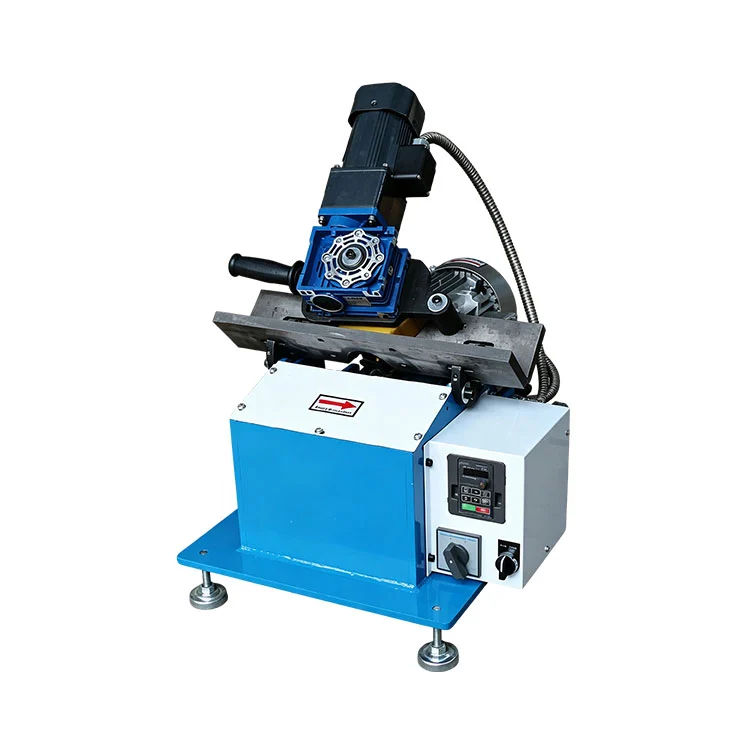

The Steel plate edge milling machine is a steel plate beveler developed by Xianjin Pipeline based on years of industry experience, specially designed for small‑size steel plate machining. Featuring high efficiency, easy operation and low running cost, it performs well on hard‑to‑machine materials such as stainless steel and high‑strength steel. It greatly reduces labor intensity and labor costs, and complies with the current low‑carbon and low‑energy‑consumption environmental‑protection trends.

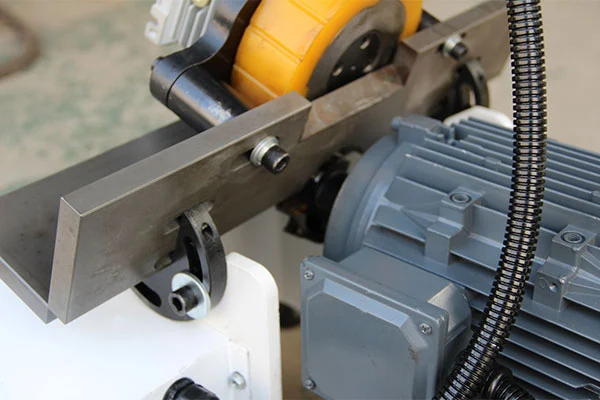

Heavy‑duty auto‑feed beveling tool with adjustable feed speed. Equipped with six milling cutters for high‑speed plate cutting, it supports bevel processing from C1 mm to 18 mm.
The Steel plate edge milling machine processes high‑strength materials including steel, cast iron, hard plastics, aluminum and chrome steel, and is suitable for small flat plate beveling.
Fast and easy‑to‑operate, it can be used indoors, outdoors and in confined spaces.
One‑touch soft start and built‑in automatic overload protection ensure stable and reliable equipment operation.
X‑10 Steel Plate Beveling Machine Technical Specifications
| Item | Parameter |

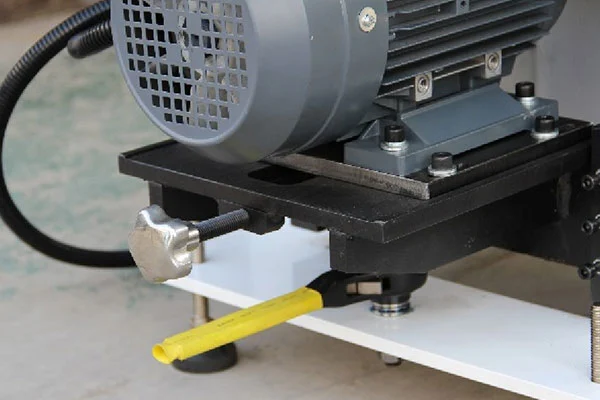

| Working Motor | High‑efficiency EU‑standard IEC motor exported by Shanghai Electric Machinery Factory |
| Voltage AC | 380V |
| Power | 1.5KW |
| Frequency | 50HZ/60HZ |
| Rated Cutter Head Speed | 2850rpm/min |
| Power of feed motor | 120W |
| Feeding Mode | Auto‑feed |
| Bevel Angle | 30°‑ 60° |
| Bevel Width | 0‑18 mm (10 mm in single pass) |
| Cutter Head Type | Standard cutter milling type |
| Machine Weight | 80kg |
| Packing Dimension (L×W×H) | 600 × 600 × 650 mm |
A: It can meet the beveling requirement of C1‑18 mm.
A: It is suitable for processing steel, cast iron, hard plastics, aluminum and high‑strength chromium steel.

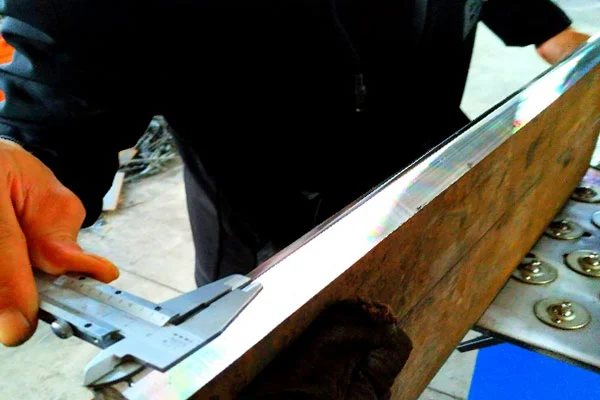

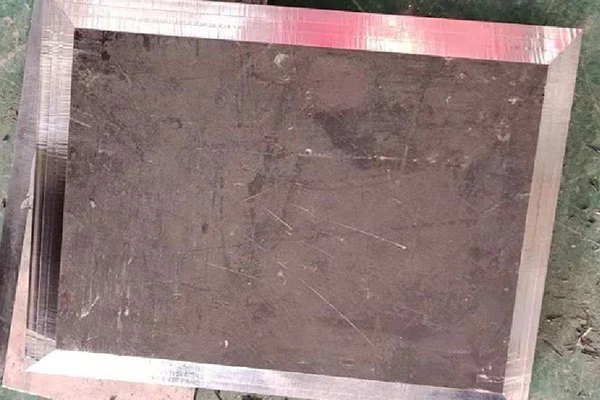

A: The steel plate edge milling machine is used for beveling of metal plates before welding. Adopting the milling principle, it mills the edge of steel plate at the required angle to produce the bevel for welding.
A: The steel plate edge milling machine can adapt to plate edges automatically. It features convenient angle adjustment, easy operation, high processing efficiency and environmental‑friendly performance. It delivers precise bevel angles and smooth machined surfaces, with particularly outstanding performance for stainless steel processing.
◆ The steel plate edge milling machine is covered by a 12‑month free warranty from the date of acceptance, implementing Xianjin Pipeline’s longstanding service philosophy and operation‑guarantee service commitment.
◆ In case of equipment failure within the warranty period, the Seller provides free technical consultation and maintenance services. Telephone reply shall be given within 2 hours for inquiries, and written reply within 8 hours. On‑site service personnel will be dispatched as required: arrive on‑site within 24 hours for distances under 800 km, and within 48 hours for distances over 800 km. Service staff will not leave the site until the fault is resolved and the customer is satisfied.
◆ After the warranty expires, telephone response will be made within 2 hours upon receipt of service notice. If the fault cannot be eliminated via telephone guidance, technicians will be dispatched to site for maintenance and troubleshooting in accordance with the above time limits.
