Edge Milling Machine for Steel Plate

The edge milling machine for steel plate is suitable for processing ferrous metals such as carbon steel and cast iron, as well as non-ferrous metals including stainless steel, titanium and composite materials. It features a bevel angle range of 0°-90° and variable-frequency adjustable travel speed from 0 to 1200mm/min. The beveling speed is inversely proportional to the cutting depth. The machine delivers easy operation and compact structure.

Product Features

Dual-Motor Power

The edge milling machine for steel plate features IEC-compliant dual 3000W 3-phase asynchronous AC main motors. Matched with an IEC-standard 400W high-torque low-speed right-angle reducer and variable-frequency travel drive. Its rigid frame enables vibration-free machining for consistent, powerful output.

Precision Beveling

Fine-tune bevel depth at 1.5mm per step; bevel angle adjustable 0°-90°. Cutter disc speed: 800RPM/min, travel speed: 0-1.2m/min. Clamping plate thickness: 5-80mm. Single-pass bevel: 0-20mm, max bevel: 45mm. Clamping height: 820-860mm. Labor-saving hand-crank wheel.

Intelligent Operation

Self-propelled design, no manual pushing or holding needed. Self-clamping mechanism avoids edge slipping. Built-in air-cylinder auto-lift, wear-resistant polyurethane rollers, and universal aluminum wheels suit diverse site conditions. Quick tool change, centralized chip collection, easy relocation and small footprint.

Safe & Smart Control

Enhanced-safety electrical cabinet with IP54 explosion-proof rating. Class-F cable insulation and Class-B temperature-rise protection. Industrial-grade components with overload protection. Equipped with aviation plugs, motor forward/reverse switch, one-touch start-stop knob and HMI visual panel for reliable multi-protection.

Main Bevel Mode

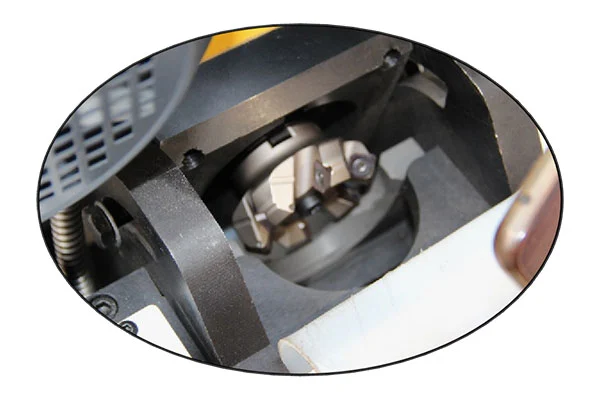

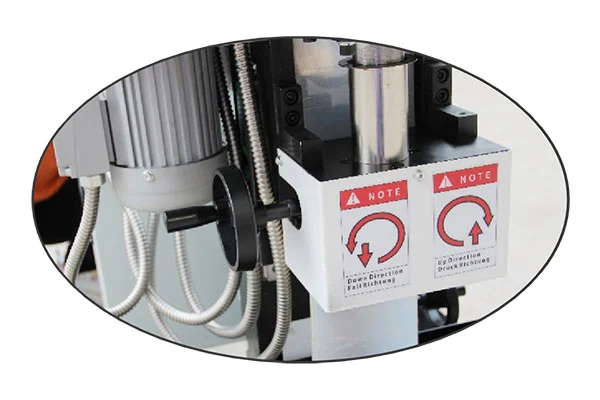

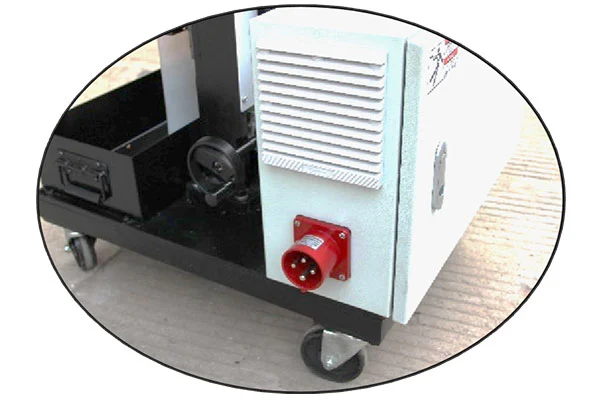

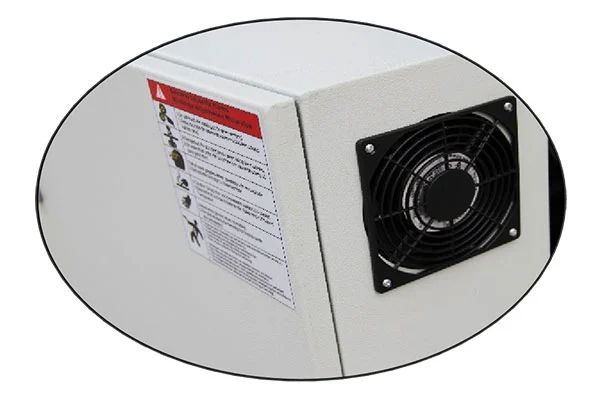

Detailed Views

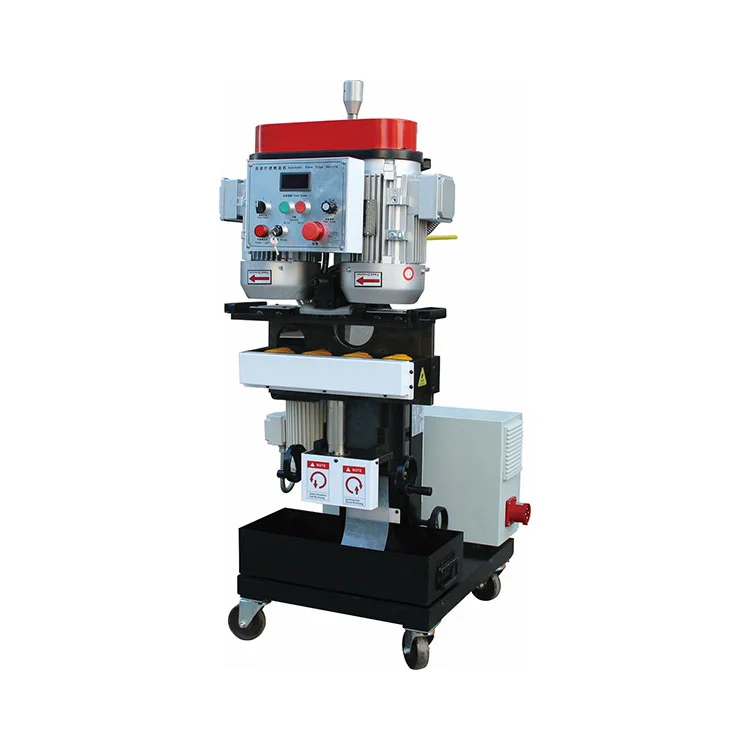

ZM-90 Edge Milling Machine for Steel Plate

Technical Specifications

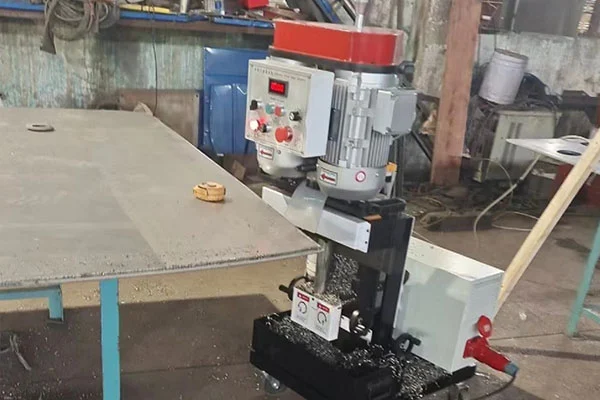

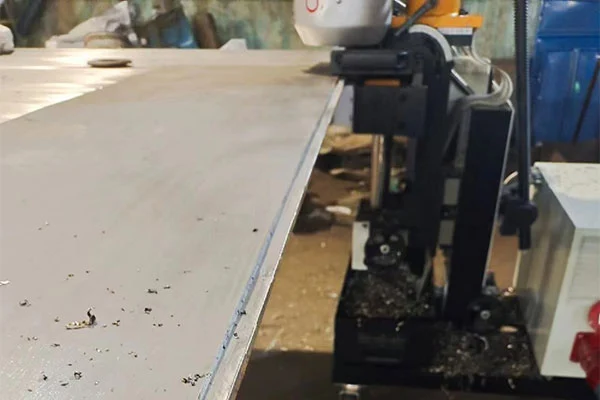

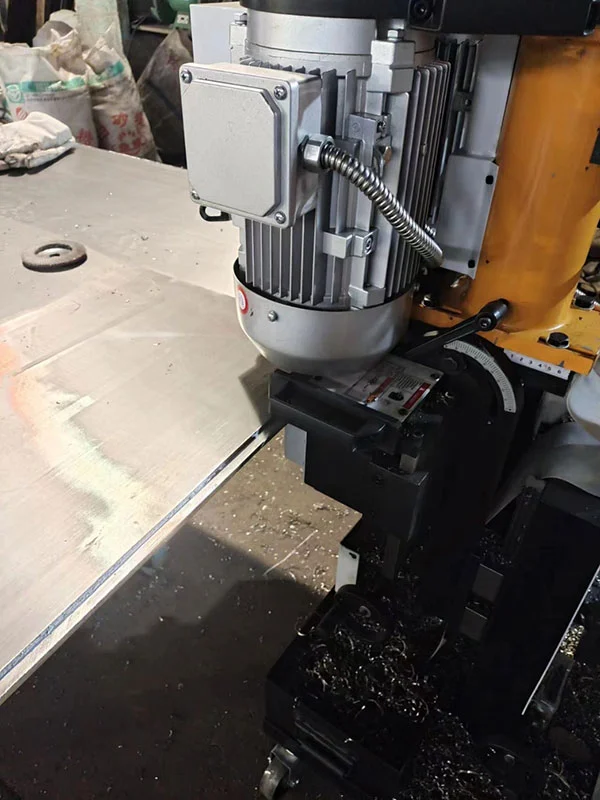

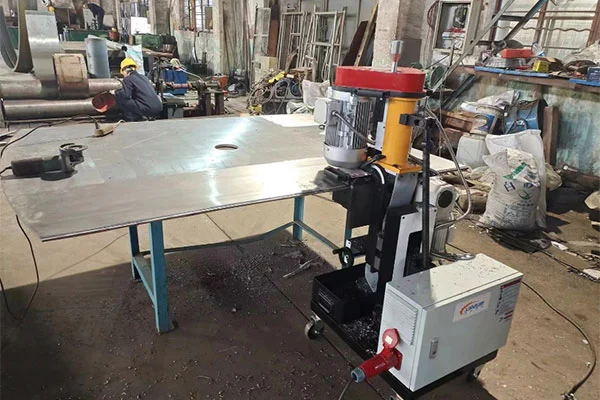

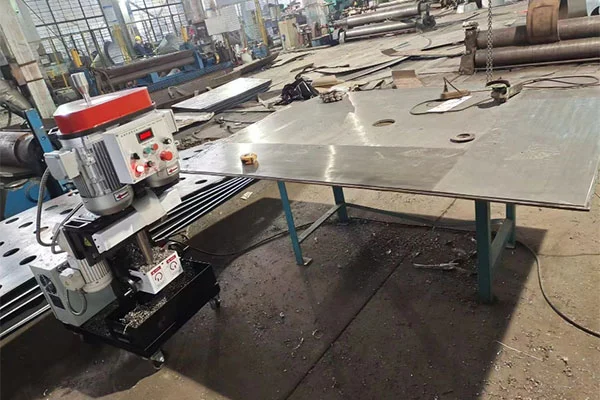

On-site Application Cases

Operation Steps

1. Preparation: Wear protective gear, inspect cutting blades and equipment rotation direction, lay steel plates flat, and clear the travel path.

2. Parameter Adjustment: Set and lock the bevel angle as required, configure cutting depth according to the parameter table, and calibrate the upper pressing roller to be flush with the plate surface.

3. Machining: Attach the guide plate closely to the steel-plate edge, electrically clamp the workpiece, start the main spindle and activate automatic travel. Monitor cutting conditions throughout operation; shut down the machine immediately if abnormal noise occurs.

4. Completion: Remove iron chips after machining, power off and retract cables, and stow the equipment properly.

FAQ

Q: What bevel types does the machine support and what are its operation features?

A: This edge milling machine for steel plate supports K-type, V-type, Y-type and front-side beveling, with automatic traveling and automatic feeding functions.

Q: What is the processing capacity for bevel face?

A: Quantitative tool advance and retract adjustment. Single-pass bevel face: C0-20 mm; multi-pass machining up to C56 mm.

Q: What about workpiece dimension and angle adjustment range?

A: Minimum workpiece size ≥200×80 mm (L×W), no upper size limit. Stepless bevel angle adjustment from α0° to α90°.

Q: What working modes are available for large and small workpieces?

A: For large plates, the edge milling machine for steel plate travels automatically along the plate edge for beveling with auto-clamping to prevent edge-slippage. For small plates, the machine stays stationary while the plate is fed automatically for bevel processing.
