The steel plate bevel milling machine is mainly used for pre-weld chamfering and beveling of various metal plates, ideal for carbon steel, stainless steel and other materials. It adopts dual synchronous travel motors for stable travel. The dual-spring mechanism improves operational stability. The lower-bevel follow-up unit simplifies operation. Its dual-spindle design enables simultaneous upper and lower beveling, doubling processing efficiency.
The steel plate bevel milling machine adopts dual IEC-standard 3-phase AC asynchronous main motors (3000W×2) and IEC orthogonal-axis gear reducers with dual 400W high-torque low-speed output. Rigid frame ensures vibration-free operation and simultaneous top-and-bottom beveling, delivering sufficient power for heavy-duty thick-plate milling.
Bevel fine adjustment: 1.5mm per step; bevel angle: 0°-60°; travel speed: 0-1.2m/min; cutter head speed: 800RPM. Clamping thickness: 5-80mm; single-pass bevel: C0-C20mm; max bevel: C60mm; clamping height: 820-860mm. Variable-frequency travel speed, flexible angle adjustment and labor-saving handwheel for precise dimension control.

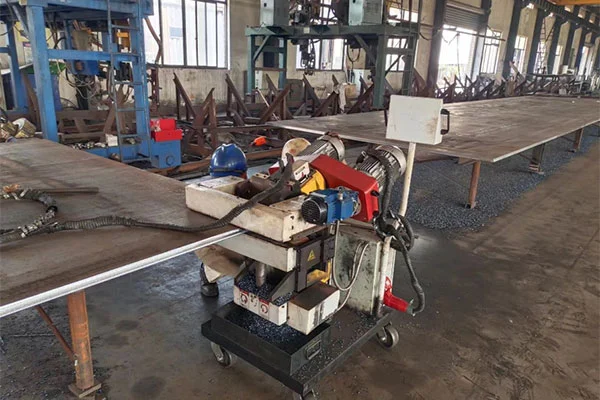

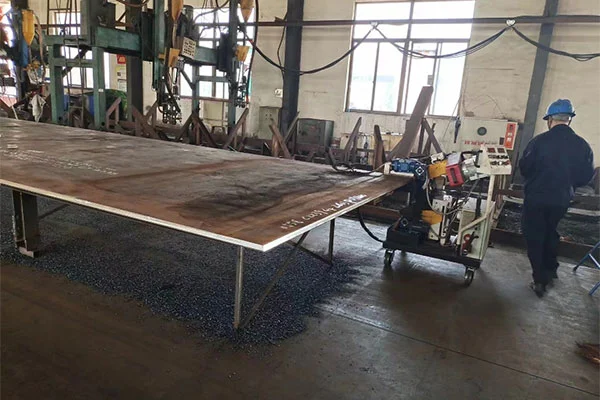

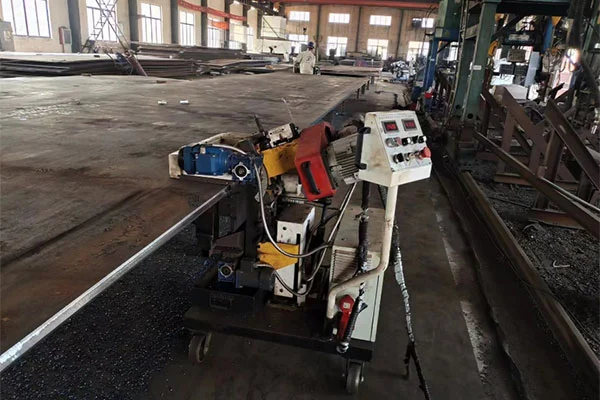

Self-propelled design, no manual pushing required. Self-tightening structure avoids edge slipping. Built-in spring auto-lift, wear-resistant polyester rollers and universal aluminum casters suit various site conditions. Compact size for easy moving. Fast tool change and centralized chip collection for convenient operation.

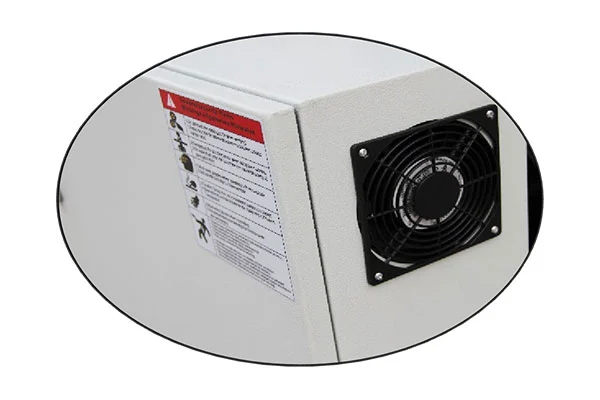

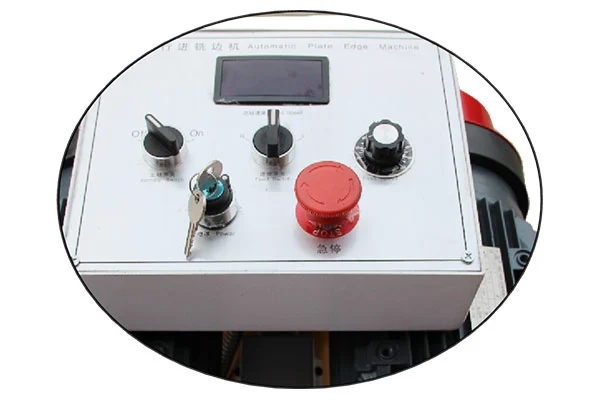

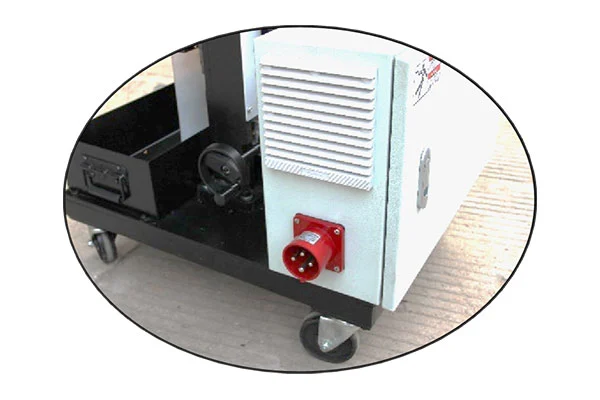

Enhanced increased-safety electrical cabinet, IP54 explosion-proof. Class-F cable insulation, Class-B temperature-rise protection. Industrial electrical components with overload protection. Equipped with aviation plugs, motor forward/reverse switch, one-touch start-stop knob and HMI panel for safe and durable performance.
Compared with other models, the ZM-100X steel plate bevel milling machine excels in processing efficiency, workpiece protection and structural design, boasting better adaptability and competitiveness for plate beveling.
Dual synchronous travel motors: Stable travelling
Dual-spring mechanism: Smooth operation
Lower-bevel follow-up unit: Easy operation

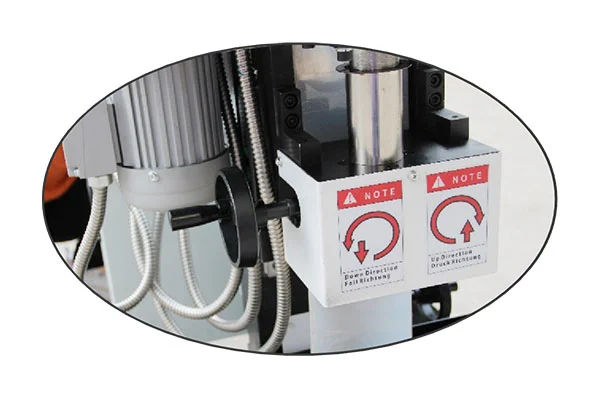

Dual-height adjustment for main body: Height-offset compensation
Driving rubber rollers: Less damage to workpieces
Dual-spindle structure: Simultaneous upper & lower beveling, doubled efficiency
K / X-bevel
V / Y-bevel
0°-bevel
U / J-bevel

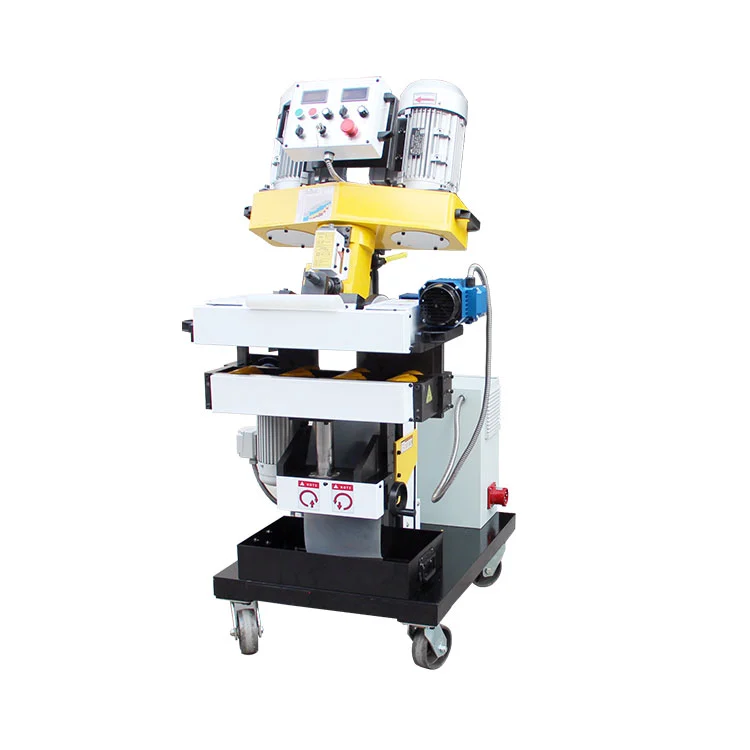

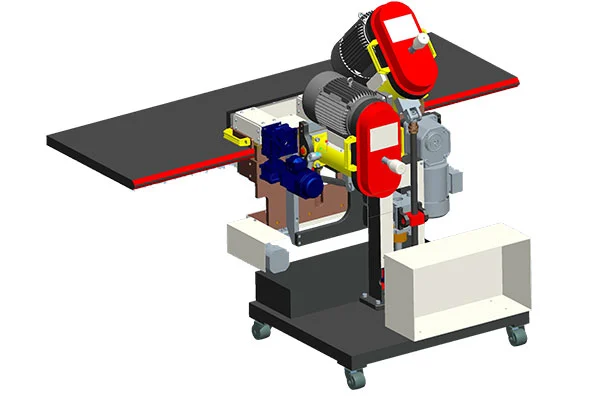

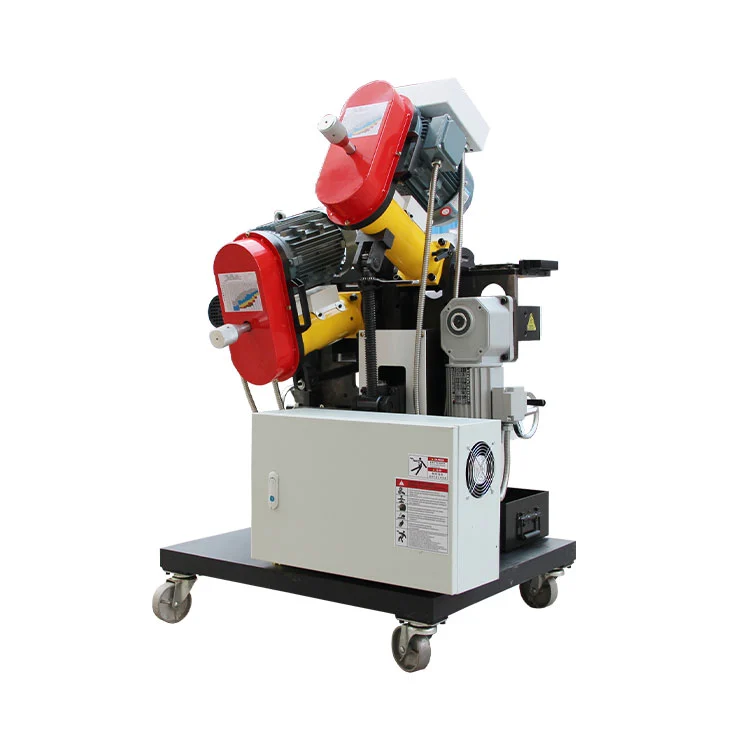

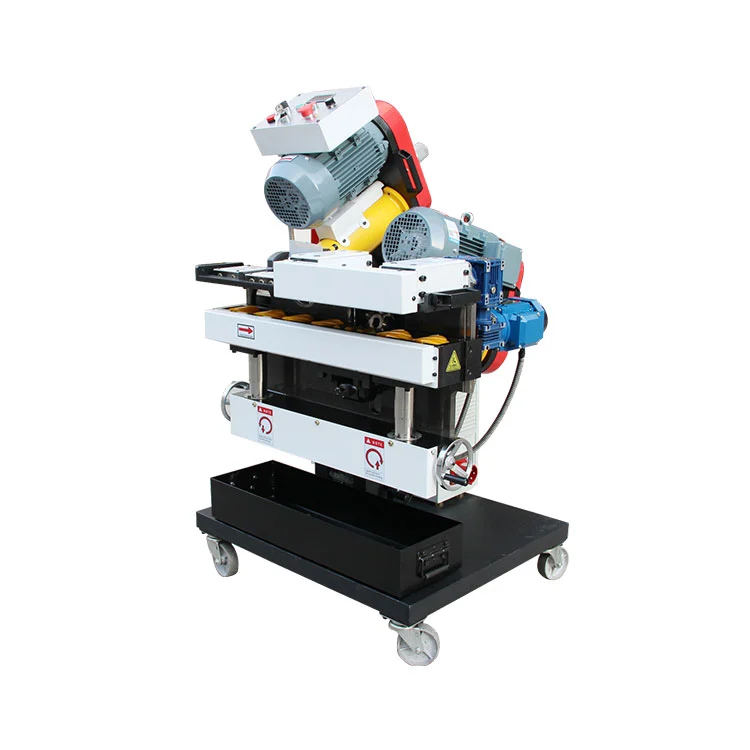

ZM-100X steel plate bevel milling machine
| Height | Machine stand height: 820-860 mm. Built-in springs enable automatic adaptation to ground and plate height variations. |
| Thickness | Side handwheel for plate thickness T5 mm-T80 mm |
| Surface roughness | ≤R3.2um |
| Cutter | Cartridge-type face milling cutter fitted with 6 coated carbide inserts. Low-cost consumables and easy replacement. |
| BOM | Service life per set of inserts: 600-800 m for carbon steel, 300-500 m for stainless steel. Universally compatible with market-standard parts for low operating costs. |
A: The steel plate bevel milling machine is fitted with 2 pcs Φ80mm cutter heads, 6 inserts per head. Adopting indexable disc milling cutters with coated carbide inserts, it features low-cost consumables and easy insert replacement.
A: The dual-spindle design completes upper and lower beveling in one pass. No workpiece flipping or re-clamping is required, which greatly cuts auxiliary time and doubles productivity. Upper bevel angle: 0°-60°, lower bevel angle: 0°-45°.
A: Built-in dual self-lifting springs support the 820-860mm work stand. It automatically compensates height differences between ground and workpieces, absorbs cutting vibration and reduces jitter. It delivers smooth running, simplifies setup and ensures consistent bevel quality.

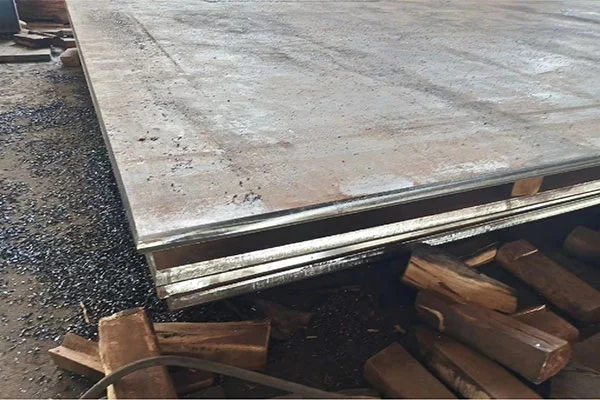

A: It delivers smooth milled bevel surfaces. Bevel angle, root face and bevel width are precisely controlled with uniform bevel profiles, meeting tight requirements of various welding processes.
● The steel plate bevel milling machine is covered by a 12-month free warranty from the date of acceptance, implementing Xianjin Pipeline's long-standing service philosophy and operation-guarantee service commitment.
● In case of equipment failure within the warranty period, the Seller provides free technical consultation and maintenance services. Telephone reply shall be given within 2 hours for inquiries, and written reply within 8 hours. On-site service personnel will be dispatched as required: arrive on-site within 24 hours for distances under 800km and within 48 hours for distances over 800km. Service staff will not leave the site until the fault is resolved and the customer is satisfied.
● After the warranty expires, telephone response will be made within 2 hours upon receipt of service notice. If the fault cannot be eliminated via telephone guidance, technicians will be dispatched to site for maintenance and troubleshooting in accordance with the above time limits.
