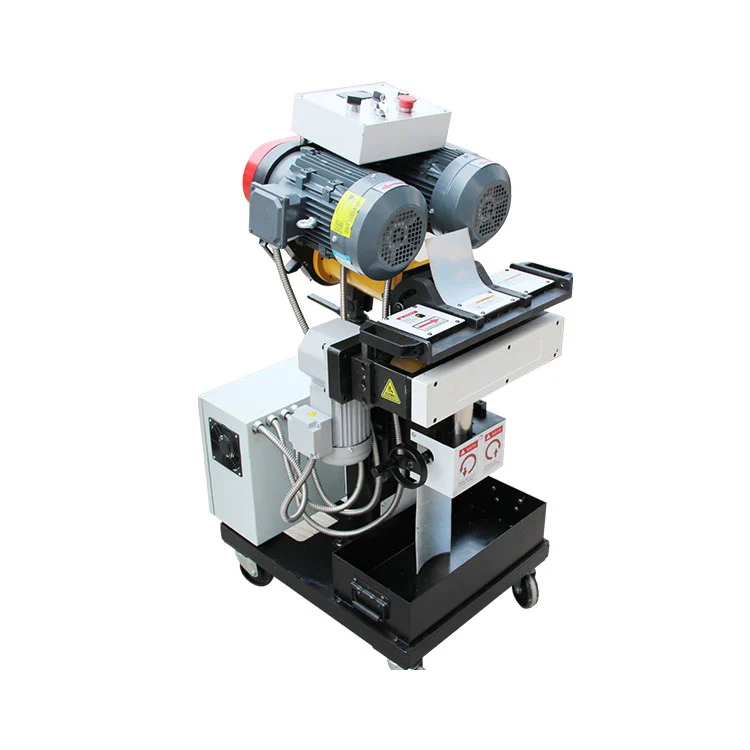

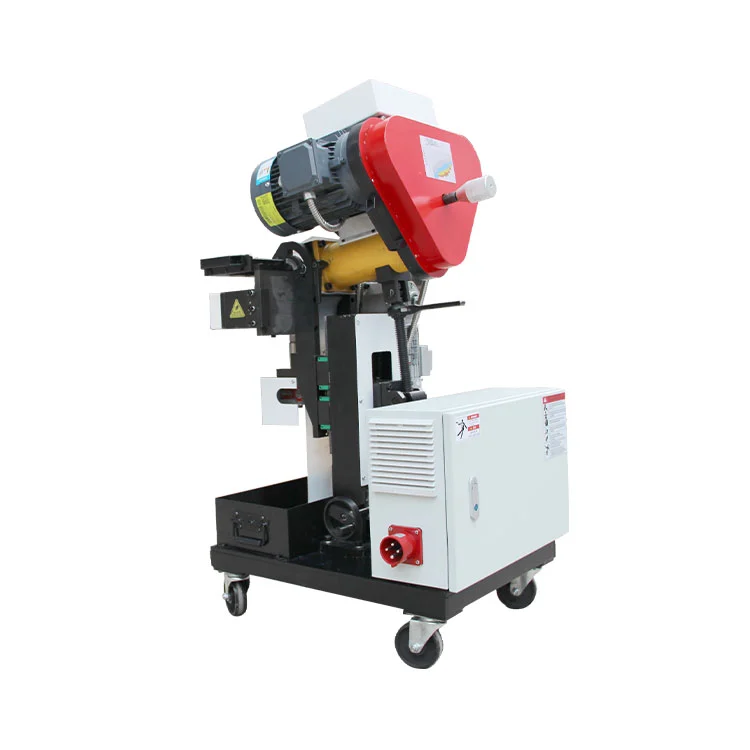

The automatic plate edge milling machine performs pre-weld beveling on metal plates with outstanding stainless-steel processing capability. It features 0°-60° bevel angle, 5-80 mm clamping plate thickness, single-pass bevel width C0-C20 mm and maximum C45 mm. Compatible with ferrous metals (carbon steel, cast iron) and non-ferrous materials (stainless steel, titanium, composites).
The automatic plate edge milling machine featuring IEC-compliant dual main motors; 3-phase asynchronous AC 3000*2W; IEC-standard orthogonal-axis reducer; 400W high-torque low-speed output. Robust machine body ensures stable power delivery.
Fine bevel depth adjustment at 1.5 mm per step; adjustable bevel angle: 0°-60°; cutter head speed: 800 RPM/Min; variable-frequency travel speed: 0-1.2 M/Min. Suitable for plate thickness 5-80 mm; single-pass bevel C0-C20 mm, maximum bevel C45 mm. Labor-saving operation with flexible adjustment.

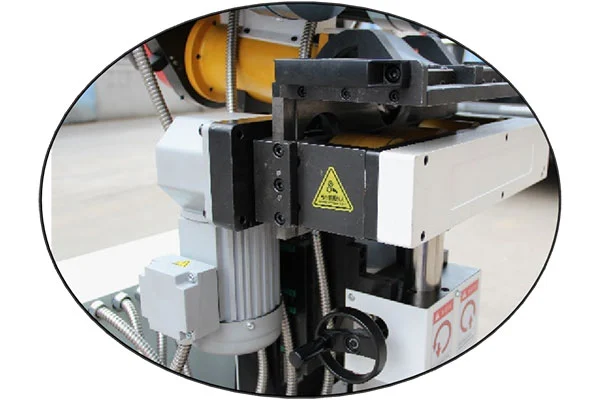

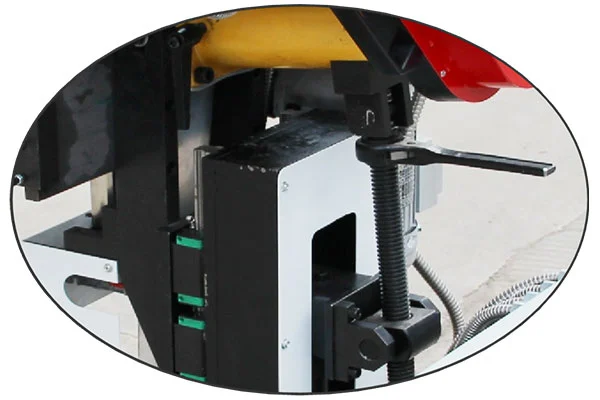

Self-propelled design, no manual holding required; self-clamping to prevent edge slipping. Built-in air cylinder for automatic lifting; clamping height 820-860 mm. Wear-resistant rollers adapt to various working conditions. Compact footprint, centralized chip collection, easy tool replacement.

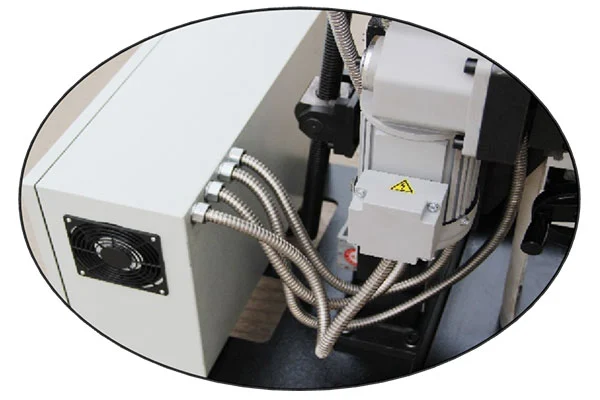

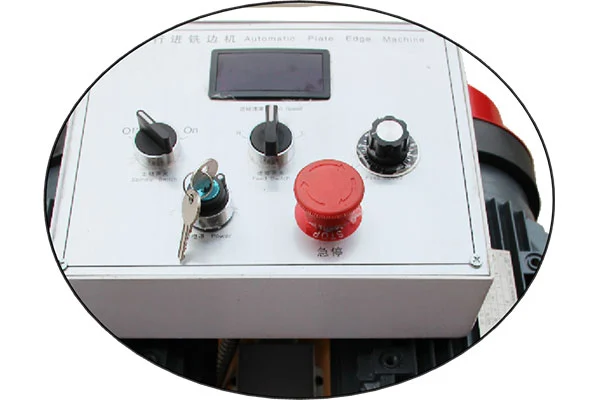

Enhanced-capacity increased-safety electrical cabinet; IP54 explosion-proof rating; Class-F cable insulation and Class-B temperature-rise protection with industrial-grade electrical components. Equipped with multi-safety devices for comprehensive safety guarantee.
K / X-bevel
V / Y-bevel
0°-bevel
U / J-bevel
| ZM-80 Automatic Plate Edge Milling Machine | ||||
| Working-motor | Shanghai Electric Works Export-grade High-efficiency Motors for EU Market, IEC European Standard | |||
| Voltage AC | Power | Frequency | Rated rotational speed of cutter disc | |
| 380/220V | 3000W (Dual-motor) | 50HZ/60HZ | 800rpm/min | |
| Feed-motor | ||||
| Taiwan-imported right-angle helical gear reducer, IEC European Standard | ||||
| Voltage AC | Power | Frequency | Traveling wheel speed | |
| 380/220V | 400W | 50/60HZ | 0-10Rpm/min | |
Integrates R&D, design, production, sales and after-sales service. Supported by senior & intermediate technical staff, we continuously upgrade products and provide custom non-standard solutions.
Full range of mechanical cold cutting & beveling machines for pipes and plates. High-end servo-driven models gain wide recognition. Products serve aerospace, nuclear power, chemical, pharmaceutical and other pipeline industries.
Located in Yangtze River Delta. Plant area around 1000m², annual output of hundreds-units per model, sufficient spare-parts stock.
Products sold nationwide and exported to Russia, Malaysia, Singapore, Kazakhstan etc. With rich experience in pipeline installation & maintenance, we undertake on-site pipe cutting and beveling projects.
Xianjin Pipeline pursues continuous R&D innovation to enhance the stability, efficiency and automation of the automatic plate edge milling machine. It streamlines operation, enables automation and human-machine interaction, and eases operators' heavy workload from conventional semi-automatic modes.
A: The automatic plate edge milling machine mainly processes K/X, V/Y, 0°, and U/J-type bevels.
A: The bevel angle adjustment ranges from 0°-60°.
A: It supports quantitative adjustment for tool advance and retraction. Single-pass bevel width is C0-20mm, and a maximum of C56mm can be obtained through multiple passes.
A: Both the motor and reducer comply with IEC European standards, delivering stable power output and suitable for EU-based projects.
