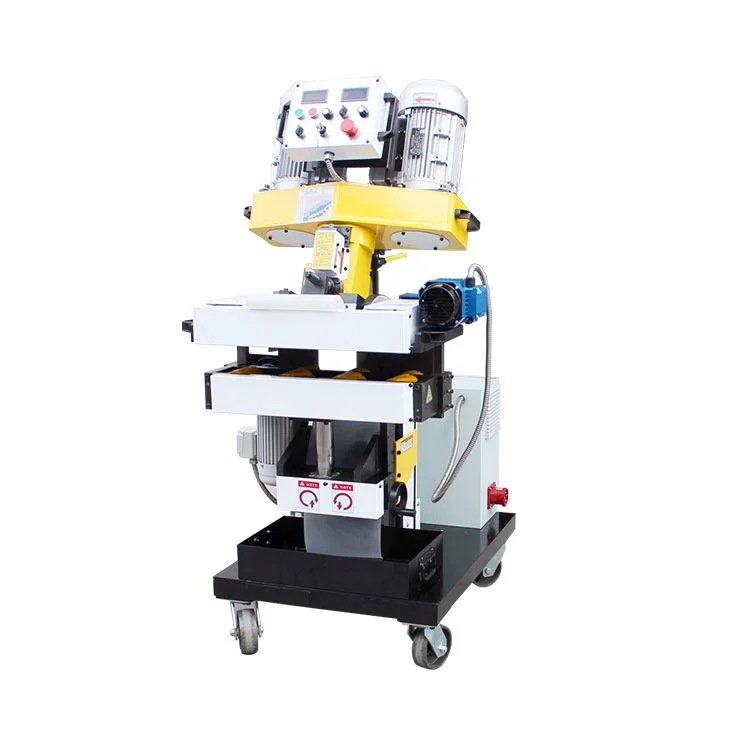

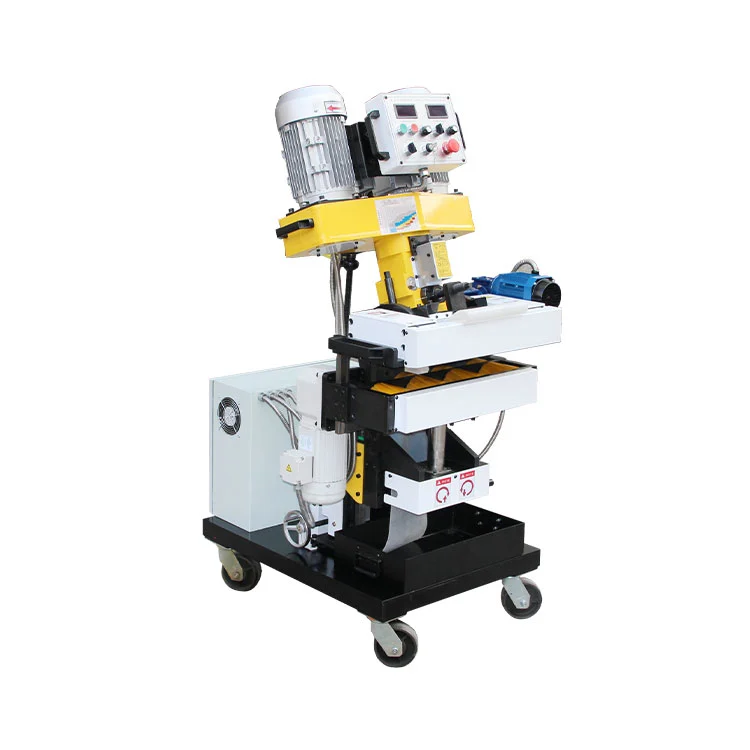

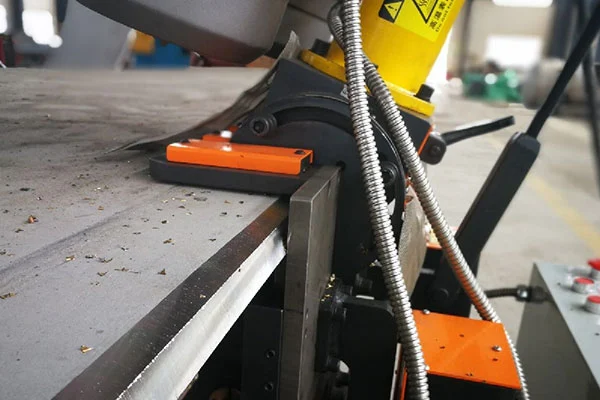

The automatic plate beveling machine is dedicated to pre-weld beveling of metal plates, with 0°-90° adjustable bevel angle. Single-pass bevel: 0-30mm, maximum 100mm via multi-pass cutting. It provides easy angle adjustment, eco-friendly operation, precise bevel geometry and smooth finished surface, excelling in stainless steel machining.
This automatic plate beveling machine adopts IEC-standard dual 3000W three-phase asynchronous AC motors, paired with IEC orthogonal-axis 800W high-torque low-speed reducer. Robust power and rigid frame ensure vibration-free stable cutting for thick plates.
1.5 mm incremental bevel depth adjustment, 0°-90° adjustable bevel angle. Travel speed: 0-1.2m/min, cutter head speed: 800RPM. Applicable plate thickness: 8-100mm; single-pass bevel 0-30mm, max bevel 100mm. Flexible angle setting & easy tool change.

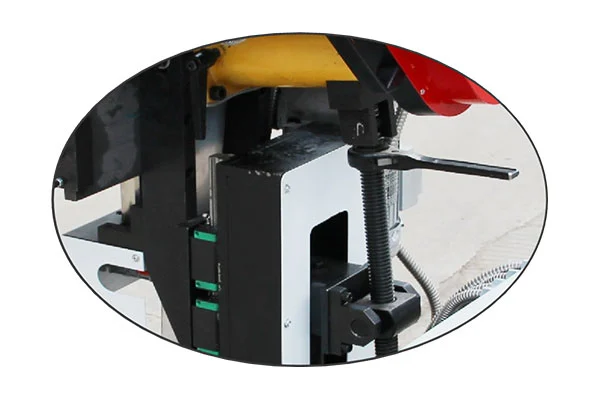

Variable-frequency self-propelled travel, no manual pushing required. Self-tightening clamping avoids edge slipping. Built-in cylinder for auto lifting, wear-resistant polyester rollers, universal aluminum wheels for diverse site conditions. Labor-saving handwheel, compact layout, centralized chip collection.

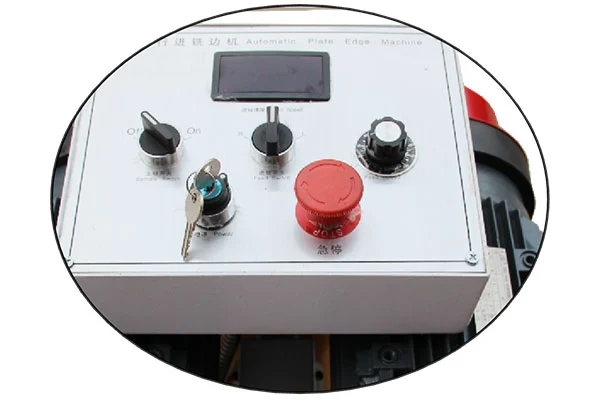

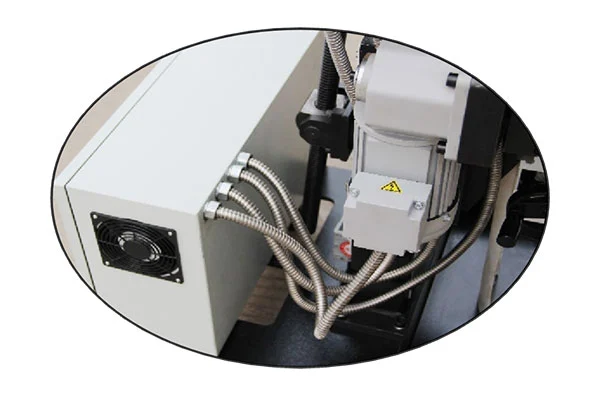

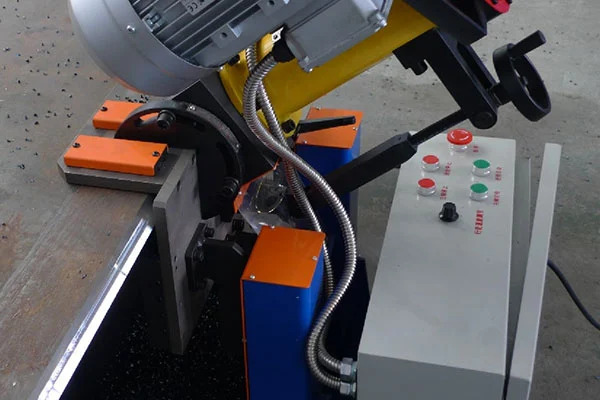

Reinforced electrical cabinet with IP54 explosion-proof protection, Class-F cable insulation and Class-B temperature-rise protection. Industrial components with overload protection, aviation connectors, forward/reverse switch, one-touch start-stop and visual HMI panel for full-range safety safeguards.
K / X-bevel
V / Y-bevel
0°-bevel
U / J-bevel
90°-bevel
| ZM-100 automatic plate beveling machine | ||||
| Working-motor | Shanghai Electric Machinery Works High-efficiency Motors for EU Export, IEC European Standard | |||
| Voltage AC | Power | Frequency | Rated cutter disc speed | |
| 380/220V | 3000W (Dual-motor) | 50HZ/60HZ | 0-800rpm/min | |
| Feed-motor | Right-angle shaft reducer imported from Taiwan, ICE European Standard | |||
| Voltage AC | Power | Frequency | Travel wheel speed | |
| 380/220V | 400W (Dual-motor drive) | 50/60HZ | 0-10Rpm/min | |
| Auto-feed | High-wear-resistant polyurethane runners, automatic edge trimming preventing machine drifting. | |||
| Ele-box | Ex-increased safety OMRON/CHINT electrical components, Class-F insulation, overload and explosion-proof protection, IP54 enclosure protection. | |||
| Size-Weight | 950mm*1180mm*130mm-480kg | |||
| Bevel Mode | K-type, V-type, Y-type bevels, front-side beveling, automatic traveling and automatic feeding. | |||
| Bevel Width | Quantitative adjustment for tool advance and retract; single-pass bevel machining range C0-30mm, multi-pass machining up to C100 mm. | |||
| Weld Edge | Quantitatively controllable, consistent root face retention. | |||
| Plate Size | Workpiece machinable dimension: ≥200×80mm (L×W), no upper-size limit. | |||
| Bevel Angle | Stepless adjustable bevel angle α0°-α90° | |||
| Feed speed | Travel speed V0-1200 mm/min, variable-frequency adjustable. Beveling speed is inversely proportional to bevel depth. | |||

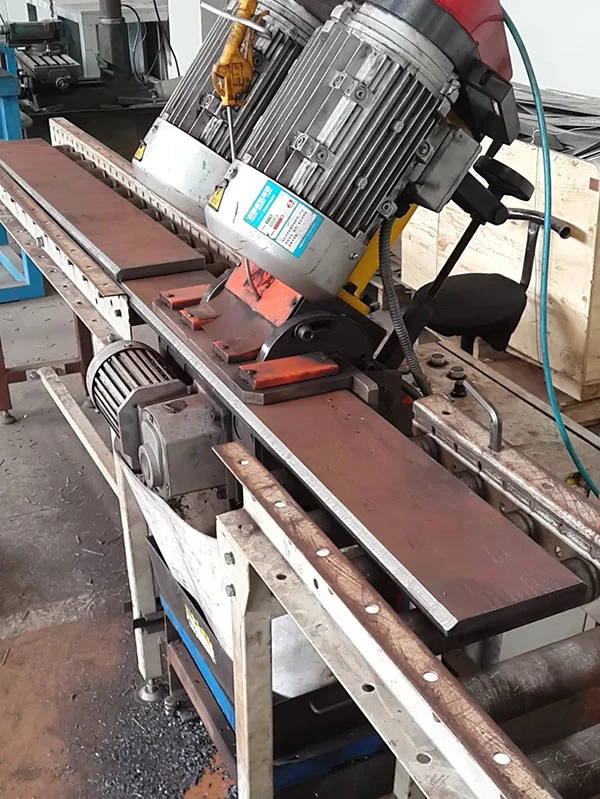

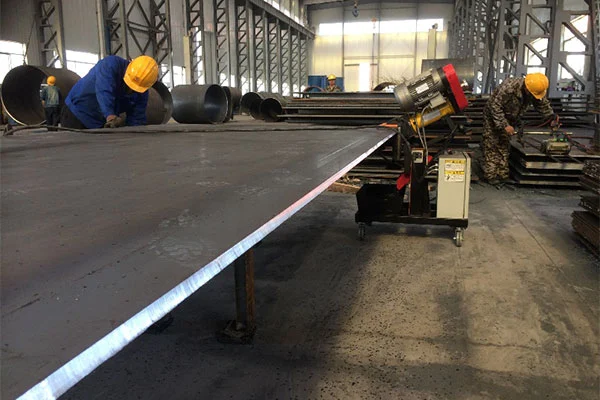

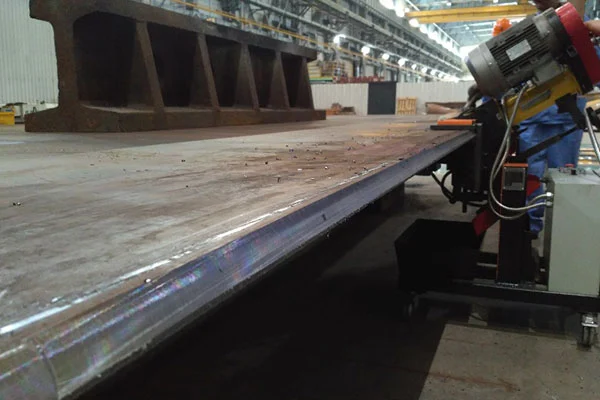

| Working mode | For large-size plates: the machine travels automatically along the plate edge for automatic beveling, with automatic tightening to prevent edge-off. For small-size plates: the machine stays stationary while the workpiece is automatically fed for bevel processing. | |||
| Height | Large-plate stand height: 820-860 mm. Built-in gas springs enable automatic adaptation to ground and plate height variations. | |||
| Thickness | Plate thickness T8 mm-T100 mm, manual clamping / automatic clamping (optional). | |||
| Surface roughness | ≤R3.2μm | |||
| Cutter | Indexable disc milling cutter, fitted with 7 coated carbide inserts, low-cost consumables and easy replacement. | |||
| BOM | Each set of inserts can machine 600-800 m for carbon steel and 300-500 m for stainless steel. Commercially compatible, low processing cost. | |||
For the automatic plate beveling machine (design, manufacturing) and its spare parts, in addition to the technical parameters and requirements specified in the specification, the latest editions of National Standards (GB), Industry Standards (JB, DL...), and International Standards (SI, ANSI, ASME, AWS, API, DIN, ISO) shall be followed. The standards applied for product design and manufacturing are listed below:
General Code for Construction and Acceptance of Mechanical Equipment Installation GB50231-98
Guidelines for Safety Design of Electrical Equipment GB4064-1983
Safety of Machinery — Electrical Equipment of Machines GB 5226.1-2002
Marking of Insulated Conductors GB4884-85
Code for Acceptance of Construction Quality of Steel Structures GB 50205-2002
Code for Design of Steel Structures GB 50017-2003
Manufacturing standard for process piping: ASTM B31.3
International Standards (SI, ANSI, AWS, API, DIN, ISO)
The automatic plate beveling machine features excellent environmental adaptability and can operate stably under various normal working conditions. It can withstand certain fluctuations in temperature and humidity as well as minor vibrations, ensuring that external factors will not impair its performance and service life under normal operating conditions. Meanwhile, its structural design, material selection and protection measures are compatible with on-site installation conditions to guarantee safe and reliable long-term operation.
Power Supply: 380V, 50Hz
Altitude: < 1000m
Ambient Temperature: 0-45°C (indoor operation)
Relative Humidity: Maximum daily average relative humidity 90%
Seismic Intensity: No higher than Grade VII
A: Single-pass bevel range: C0-C30mm for standard workpieces. Multi-pass machining achieves max C100 mm, offering high flexibility for diverse applications.
A: Equipped with indexable face mill and 7 standard coated carbide inserts. Long service life, low consumable cost. Inserts are quick-change for easy maintenance and high cost-efficiency.
A: Adopts cold milling cutting with automatic travel & feed for bevel/chamfer work. Designed for pre-weld beveling of various metal plates, with superior performance on stainless steel.
A: The automatic plate beveling machine produces precise, consistent bevels compliant with Class-II and above welding standards. Ensures uniform weld penetration and minimizes welding defects. Finished bevels pass all common NDT tests to satisfy inspection, acceptance and site construction demands.
