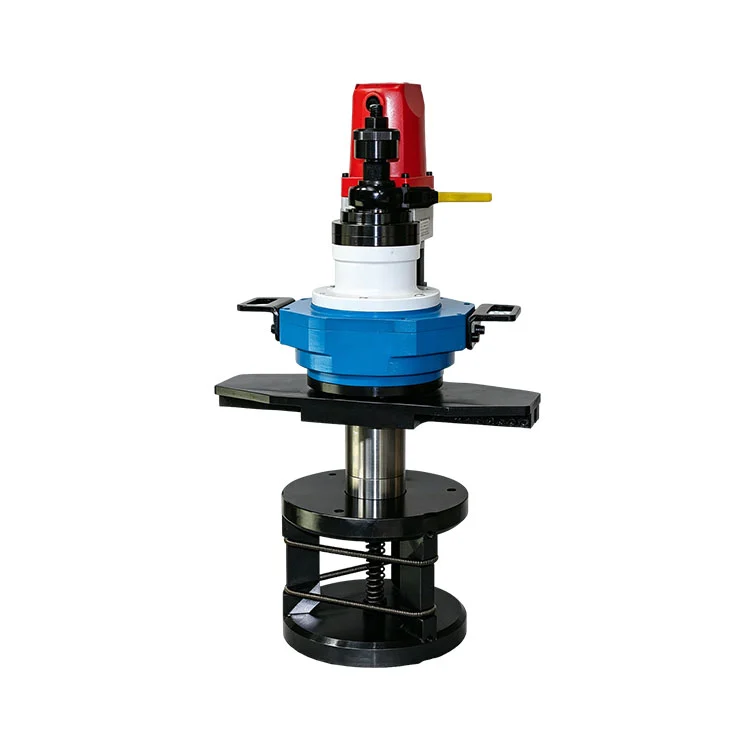

The internal pipe beveler suits 300-630mm large-bore pipes up to 15mm wall thickness. Internal-expansion quick-insert plus multi-point outer-wall clamping enables fast one-wrench setup. With pure cold-cutting, it produces smooth cuts and supports custom V/U/J bevels. Stationary-pipe rotating-tool design ensures stable operation. Dual-power options fit off-grid field work for multi-industry pipe installation, modification and emergency repair.
This internal pipe beveler is equipped with newly-upgraded reduction, locking and feed mechanisms for reliable operation. Light-weight design for on-site processing of 300-630mm large-diameter pipes. Internal-expansion quick-insert plus multi-point outer-wall clamping enables fast clamping at any pipe position. Adjustment by single wrench for quick assembly & disassembly.
Pure cold-cutting process protects base material without altering material properties. Precise ratchet manual feed guarantees uniform cutting, producing burr-free, distortion-free smooth cuts. Custom V-type, U-type and J-type bevels available with high forming accuracy for high-end welding.
Covers pipe diameter 300-630mm, max wall thickness 15mm. Processes carbon steel, stainless steel, titanium, copper, plastics for pipes, pressure vessels and steam generators. Dual-power options (electric motor / engine) suit off-grid field operations.
Stationary-pipe rotating-tool cutting for high operational safety. Easy-to-operate and robust unit, widely deployed in petrochemical, natural gas, nuclear power, pharmaceutical and infrastructure sectors for pipe installation, modification and emergency repair.
| Item | Specification |
| Applicable groove type | V-type, I-type, U-type |
| Processing pipe diameter range | 300mm - 630mm |
| Max processing wall thickness | ≤15mm |
| Motor power | 1.5KW |
| Equipment weight | 110KG |
| Cutterhead speed | 10R/min |
| Axial feed depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Optional tool angle | 30°, 37.5°, 60°, 0°, 15° inner slope |
The internal pipe beveler is packed in a reinforced wooden case with internal shock-proof, moisture-proof and anti-rust protection. The main unit, cutters, tool kit, manual and other accessories are packed in separate compartments. Moving components are locked and secured to avoid impact damage during transportation. Fumigation treatment is available for export-grade wooden crates. Stock orders enjoy short lead-time, supporting multiple logistics options including land and sea freight. Inspect the outer package upon arrival and check the main machine together with all accessories after unpacking.
A: The internal pipe beveler features a machining diameter range of 300-630 mm and a maximum machinable wall thickness of 15mm. The cutter head speed is 10R/min, the axial feed depth reaches 50mm, and the feed rate is adjustable within 0.07-0.1mm to meet beveling requirements for pipes of various sizes.
A: Compatible with carbon steel, stainless steel, titanium, copper, plastics and more. Pure cold-cutting process delivers burr-free, distortion-free cuts. Custom V-type, U-type and J-type bevels are available for high-end welding.
A: Equipped with internal-expansion quick-insert and multi-point outer-wall clamping. Fast clamping at any pipe position, adjustable with only one wrench, ideal for frequent relocation on job-sites.
A: Dual-power design: electric motor for powered sites, combustion engine for remote off-grid construction environments.
A: Cold machining preserves base-material integrity without thermal damage or material property change, ensuring consistent welding quality.
