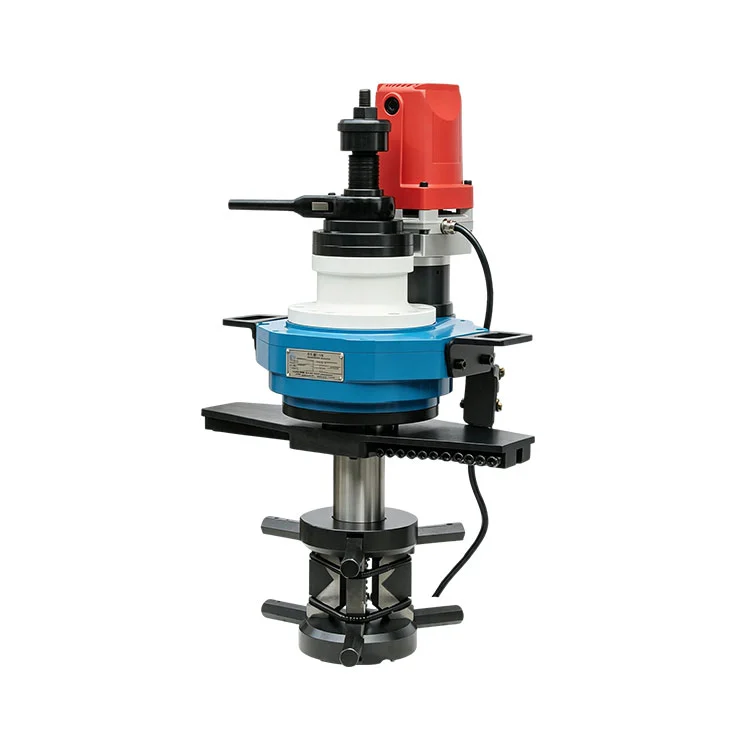

Independently designed and manufactured by Xianjin Pipeline, the cold cutting pipe beveler is a portable pipe beveling device compatible with a wide variety of materials: plastic, copper, brass, iron, carbon steel, aluminum, high-grade steel, stainless steel and titanium. Multiple power options are available, including multi-voltage motors or engine drive. It adapts to diverse site conditions and supports field operations without power supply.
Developed from extensive market research and user feedback, this series of cold cutting pipe beveler adopts new-type reduction, expansion-clamping and feed mechanisms. Stable and lightweight, it delivers remarkable performance for on-site large-diameter pipe machining.

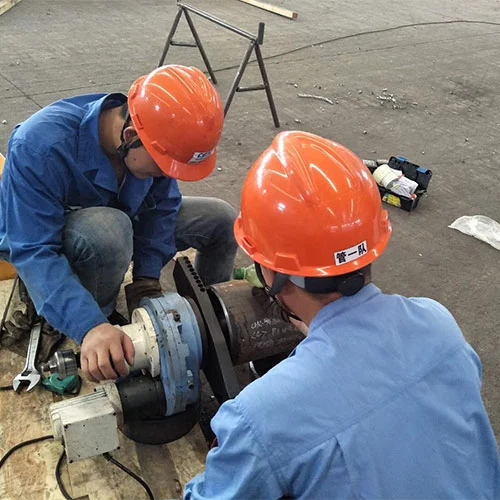

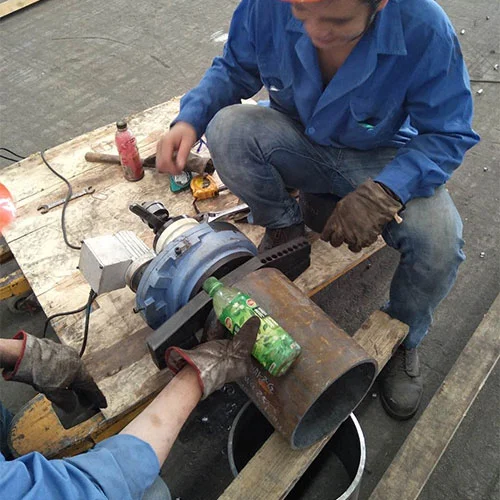

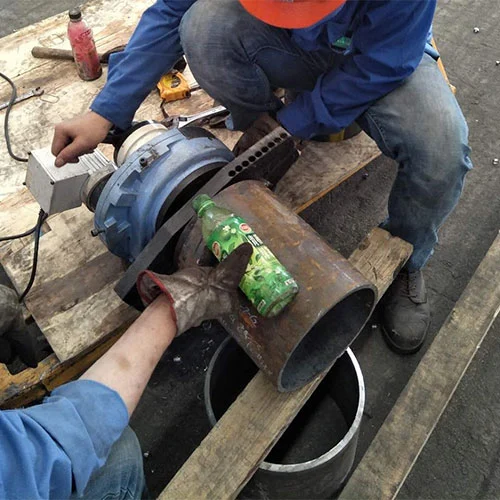

The internal-expansion system firmly holds workpieces. Adjustment of fastening components only requires one-size wrench. Machining is completed by rotating cutters while the pipe stays static, ensuring high operational safety.

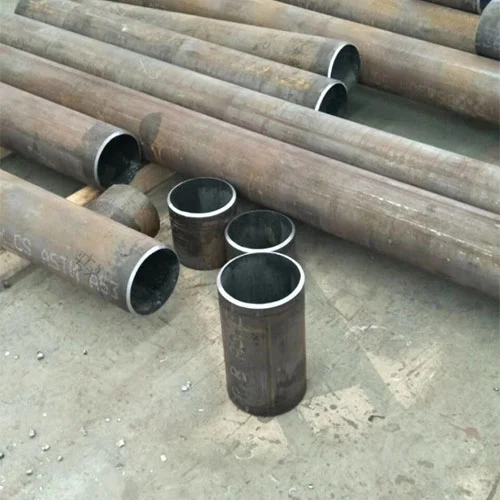

It produces deformation-free, burr-free and clean cuts, consistently suitable for scenarios with stringent high-quality welding requirements.
Compatible with plastic, copper, brass, iron, carbon steel, aluminum, high-grade steel, premium stainless steel and titanium. Multiple power options include multi-voltage motors or engine drive, supporting field operations without power supply under various complex conditions.
| Item | Specification |
| Applicable groove type | V-type, I-type, U-type |
| Processing pipe diameter range | 150mm - 300mm |
| Max processing wall thickness | ≤15mm |
| Motor power | 1.5KW |
| Equipment weight | 62KG |
| Cutterhead speed | 14R/min |
| Axial feed depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Optional tool angle | 30°, 37.5°, 60°, 0°, 15° inner slope |
Integrates R&D, design, production, sales and after-sales service. Supported by senior & intermediate technical staff, we continuously upgrade products and provide custom non-standard solutions.
Full range of mechanical cold cutting & beveling machines for pipes and plates. High-end servo-driven models gain wide recognition. Products serve aerospace, nuclear power, chemical, pharmaceutical and other pipeline industries.
Located in Yangtze River Delta. Plant area around 1000m², annual output of hundreds-units per model, sufficient spare-parts stock.
Products sold nationwide and exported to Russia, Malaysia, Singapore, Kazakhstan etc. With rich experience in pipeline installation & maintenance, we undertake on-site pipe cutting and beveling projects.
Xianjin Pipeline pursues continuous R&D innovation to enhance the stability, efficiency and automation of the cold cutting pipe beveler. It streamlines operation, enables automation and human-machine interaction, and eases operators' heavy workload from conventional semi-automatic modes.
A: This cold cutting pipe beveler boasts a broad machining range, covering pipe diameters from 150mm to 300mm. Flexible model selection is available according to different pipe diameter specifications to satisfy machining requirements under various working conditions.
A: Tailored to customers' individual requirements, the ND352 internal-expansion beveling machine can flexibly machine multiple bevel profiles including U-bevel, single-V bevel and J-bevel to adapt to diverse welding procedures and engineering standards.
A: It is widely used for processing pipes of various specifications, pressure vessels and steam generators. Safe and rapid cutting and beveling operations can be realized to effectively guarantee workpiece quality and operational efficiency.
A: This equipment adopts new-type reduction, expansion-clamping and feed mechanisms for enhanced structural stability and better portability. It features ratchet-type manual feed for high efficiency and superior machining quality, with maximum axial feed depth of 50mm and feed rate ranging from 0.07-0.1mm.
For the cold cutting pipe beveler (design, manufacturing) and its spare parts, in addition to the technical parameters and requirements specified in the specification, the latest editions of National Standards (GB), Industry Standards (JB, DL...), and International Standards (SI, ANSI, ASME, AWS, API, DIN, ISO) shall be followed. The standards applied for product design and manufacturing are listed below:
General Code for Construction and Acceptance of Mechanical Equipment Installation GB50231-98
Guidelines for Safety Design of Electrical Equipment GB4064-1983
Safety of Machinery — Electrical Equipment of Machines GB 5226.1-2002
Marking of Insulated Conductors GB4884-85
Code for Acceptance of Construction Quality of Steel Structures GB 50205-2002
Code for Design of Steel Structures GB 50017-2003
Manufacturing standard for process piping: ASTM B31.3
International Standards (SI, ANSI, AWS, API, DIN, ISO)
