Automatic Plate Edge Milling

The automatic plate edge milling adopt milling technology to cut steel plate edges as required for welding-bevel preparation. Featuring convenient angle adjustment, simple operation and high efficiency, the machine meets Grade-II and higher welding specifications. It delivers fine-tuning accuracy of 1.5mm per step for bevel depth, with an angle range of 0°-60°, and achieves excellent performance in stainless-steel processing.

Product Features

Powerful Performance

The automatic plate edge milling adopts IEC-standard dual 3000W×2 main motors and 400W high-torque right-angle reducer. Equipped with VFD speed regulation and industrial electrical parts for steady, sufficient power. Rigid body ensures vibration-free machining.

High Precision & Flexible Adjustment

Precise 1.5mm/step bevel adjustment, 0°-60° bevel angle. Features 0-1.2m/min travel speed and 800RPM cutter speed. Supports 5-80mm plate thickness, C0-C20mm single-pass bevel (max C45mm). 820-860mm working height with effortless handwheel angle adjustment.

Intelligent & Low Maintenance

Self-propelled design with automatic anti-slip and anti-offset edge control. Built-in pneumatic lifting cylinder and wear-resistant polyurethane rollers. Universal casters fit diverse working conditions. Flippable machine body eliminates workpiece turnover. It features centralized chip collection, easy tool replacement and compact size.

Safety Protection

IP54 protected enhanced safety electric cabinet with Class-F insulation, Class-B temperature resistance and overload protection. Equipped with industrial aviation plugs, one-button control, forward/reverse switch and visual HMI. Multi-protection system guarantees long-term stable operation.

Main Bevel Mode

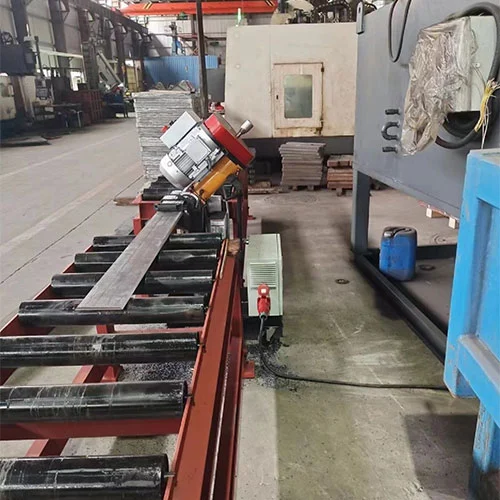

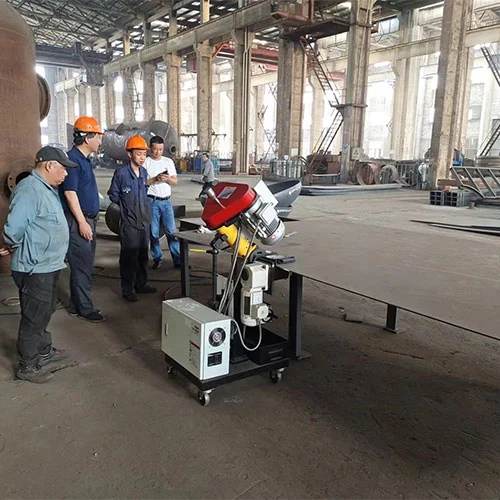

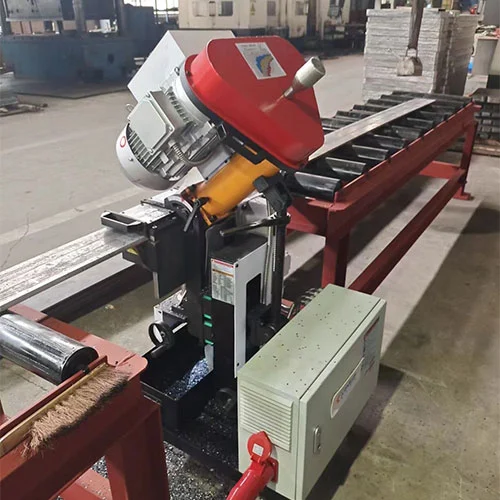

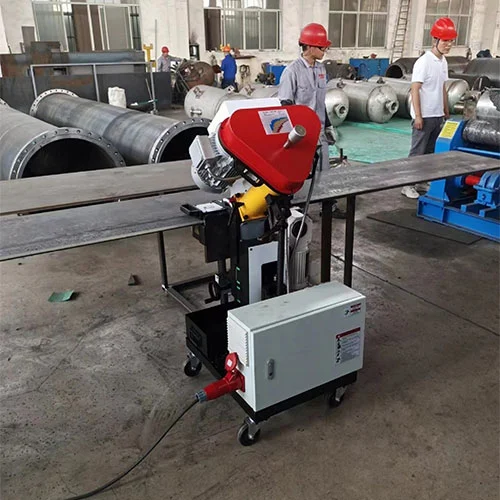

On-site Application Cases

Technical Specifications

FAQ

Q: Does this beveling machine require workpiece flipping for processing?

A: No. The automatic plate edge milling supports flipping function. There is no need to flip the workpiece. It saves labor and working hours, suits processing of various plates and pipes, and delivers higher working efficiency.

Q: What are the specifications for the main control box's protection and electrical components of this beveling machine?

A: The main control box adopts Omron / Chint electrical components. It features Class-F insulation, overload and explosion-proof protection, with an IP54 enclosure protection rating.

Q: What are the core processing parameters of this beveling machine?

A: The bevel angle adjustment ranges from 0° to 60°, applicable clamping plate thickness: 5-80mm. Bevel depth can be finely adjusted at 1.5mm per step. The robust machine body ensures vibration-free operation for guaranteed machining accuracy.

Q: What configuration standards are adopted for the working motors and feed reducer of the beveling machine?

A: The working motors are high-efficiency motors from Shanghai Electric Motor Factory for EU export, complying with IEC European standards. Dual-motor setup, 3000W per motor. The feed reducer is a Taiwan-imported right-angle reducer compliant with IEC European standards, offering stable and reliable transmission performance.

After-sales Service

● The automatic plate edge milling is covered by a 12-month free warranty from the date of acceptance, implementing Xianjin Pipeline's long-standing service philosophy and operation-guarantee service commitment.

● In case of equipment failure within the warranty period, the Seller provides free technical consultation and maintenance services. Telephone reply shall be given within 2 hours for inquiries, and written reply within 8 hours. On-site service personnel will be dispatched as required: arrive on-site within 24 hours for distances under 800 km, and within 48 hours for distances over 800 km. Service staff will not leave the site until the fault is resolved and the customer is satisfied.

● After the warranty expires, telephone response will be made within 2 hours upon receipt of service notice. If the fault cannot be eliminated via telephone guidance, technicians will be dispatched to site for maintenance and troubleshooting in accordance with the above time limits.
