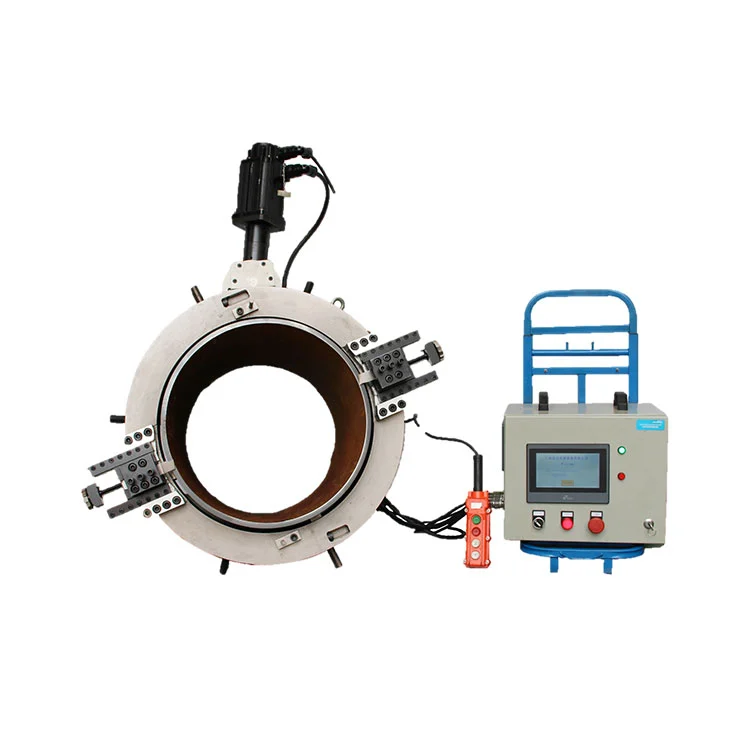

Servo-Driven External Clamp Cutting Chamfering Machine

Constructed from high-density and high-strength alloy, this servo-driven external clamp cutting chamfering machine integrates cutting and beveling functions. It connects to the servo motor via quick-connect couplings for plug-and-play and convenient assembly. The matched servo motor adopts increased-safety explosion-proof design. Multiple protective measures suppress sparks, electric arcs and hazardous high temperatures, enabling safe operation in Zone 2 explosive hazardous areas.

Product Advantages

Integrated One-Pass Machining

Built with high-density high-strength alloy, this servo-driven external clamp cutting chamfering machine supports servo drive for combined cutting and beveling. Automatic orbital tooling delivers high stock removal in one pass, producing burr-free, distortion-free pipe ends. Interchangeable cutters generate multiple bevel angles for immediate welding readiness.

Convenient On-Site Operation

Lightweight and portable, ideal for large-diameter field machining. Neck-loaded adjustable bearings paired with reinforced bottom race ensure stable performance. Rapid clamping with single-wrench adjustment. Stationary-pipe rotating-tool design improves operational safety.

Diverse Power Configurations

Multiple power options: multi-voltage motor or engine drive for off-site power-free conditions. Quick-connect servo couplings enable plug-and-play setup for fast reconfiguration across diverse site environments.

Broad Material & Application Compatibility

Works with plastic, copper, brass, iron, carbon steel, aluminum, high-grade steel, premium stainless steel and titanium. Non-standard sizes and special bevel profiles are customizable. Widely used for pre-weld pipe preparation in petroleum, petrochemical, food-beverage-dairy, pharmaceutical, metallurgy, water treatment, shipbuilding and power industries.

Technical Specifications

Introduction to Servo-Driven Motor

The servo motor for servo-driven external clamp cutting chamfering machine offers prominent advantages. The servo control system delivers high-precision closed-loop regulation, providing better dynamic response, positioning accuracy and stability during cutting compared with conventional drives. Energy-efficient and low-maintenance, it cuts operating costs, supports automated continuous production, and enhances equipment adaptability and reliability under harsh working conditions.

1. This motor features an increased-safety explosion-proof construction. A series of reliable measures are adopted to suppress sparks, electric arcs and hazardous high-temperature conditions, enabling safe operation in Zone 2 explosive hazardous areas.

2. It adopts brushless excitation, equipped with a rotating rectifier disc and static excitation cabinet for reliable excitation control system performance. Positive-polarity slip-dependent excitation switching is accurate without shock loads. The excitation system delivers dependable out-of-step protection and strong re-synchronization capability. Reasonable circuit design prevents abnormal heating of discharge resistors during operation, with a wide adjustment range for excitation current.

3. The synchronous main motor, AC exciter and rotating rectifier disc are coaxially arranged. The rectifier disc can be installed either between the main motor and exciter, or on the outer side of the bearing housing.

4. Enclosure protection rating: IP54.

5. Class-F insulation structure is applied; winding temperature rise is evaluated in accordance with Class-B criteria.

6. Fitted with an increased-safety anti-condensation heater, fixedly mounted inside the bottom motor cover to provide heating and moisture protection during shutdown.

7. High-grade raw materials are selected. Sufficient margins are reserved for both electrical and mechanical calculations to satisfy operational reliability and temperature-control requirements for increased-safety motors.

8. Comprehensive operational monitoring is implemented: increased-safety self-balancing current transformers for differential protection are fitted within the main terminal box. Working and spare Pt100 platinum thermal resistors are embedded in stator windings. Local temperature indicators and remote-signal terminals are provided for both end pedestal-type plain bearings.

Cutting Range Selection Table

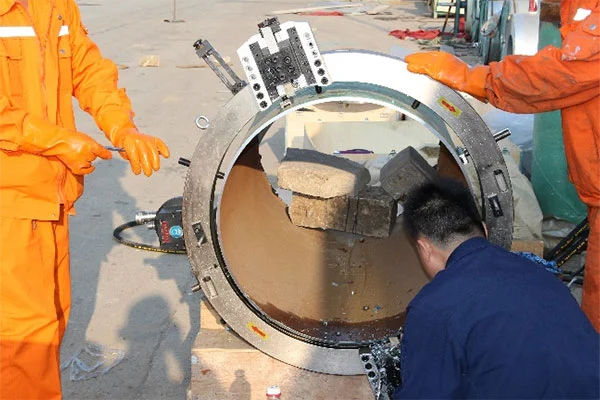

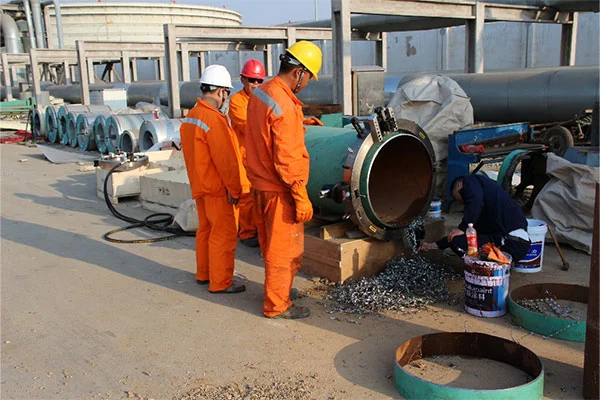

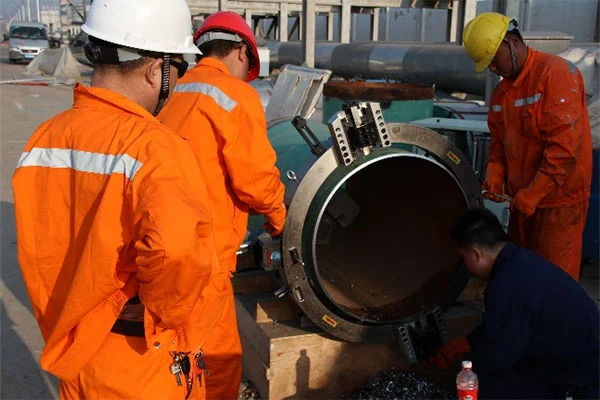

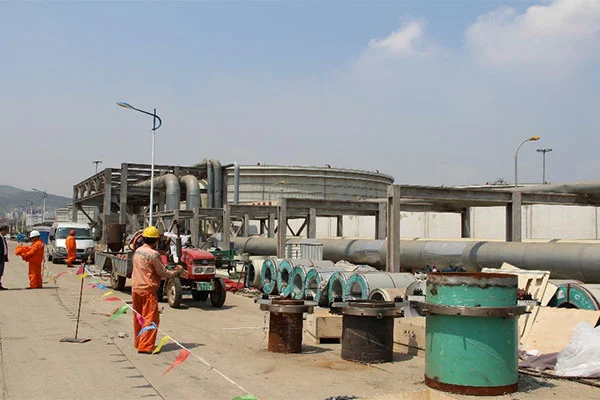

Engineering Case

FAQ

Q: What types of bevels does the machine support and what is its machining range?

A: The servo-driven external clamp cutting chamfering machine can produce custom-made bevels and covers a machining range up to 2500 mm with model selection available as required. Beyond pipes, it enables safe and efficient cutting and beveling for pressure vessels and steam generators.

Q: Does the servo motor feature explosion-proof performance?

A: It is fitted with an increased-safety explosion-proof servo motor. Multiple protective measures eliminate risks of sparks, electric arcs and high temperatures, allowing safe operation in Zone 2 explosive atmospheres. It features IP54 enclosure rating and Class-F insulation. Built-in anti-condensation heaters and Pt100 temperature sensors support local readout and remote signal transmission.

Q: What are its main application sectors?

A: Widely applied in petroleum, petrochemical, natural gas, shipbuilding & offshore, power generation, metallurgy, water treatment, pharmaceutical and food-processing industries. It meets requirements for on-site prefabrication, installation and emergency repair, and is particularly suitable for complex conditions such as off-grid field sites and hazardous explosive environments.

Q: Is power source interchangeable?

A: This product series supports interchangeable hydraulic, electric, pneumatic and servo power modules. Flexible power configurations allow selection of multi-voltage motors or engine drives according to regional and site conditions, making it applicable for off-grid field operations.

Q: About machining quality and custom-made services?

A: It delivers high stock removal and high efficiency with integrated cutting and beveling. The finished pipe ends are smooth, burr-free and distortion-free. Different bevel angles can be achieved by changing cutters. Custom non-standard sizes and special bevel profiles are available to meet special machining requirements.
