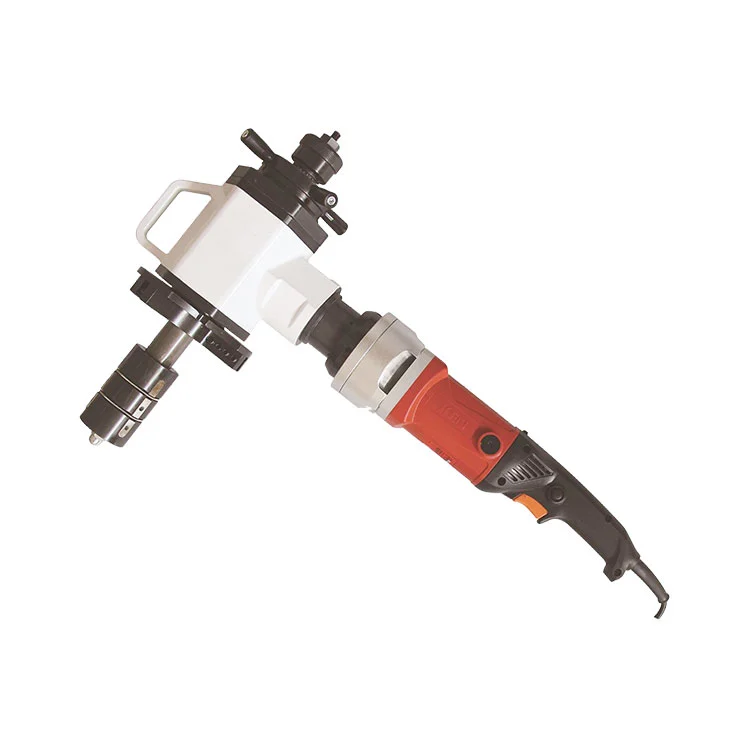

This ID mounted pipe end prep machine is developed and manufactured based on years of market research. Equipped with innovative reduction, expansion clamping and feed mechanisms, the unit features robust structure and excellent portability.It accommodates pipe diameters from 65 mm to 159 mm, with a maximum processable wall thickness of 15 mm. Widely applicable, the machine enables efficient cutting and beveling for metal pipes such as carbon steel, stainless steel and alloy steel.

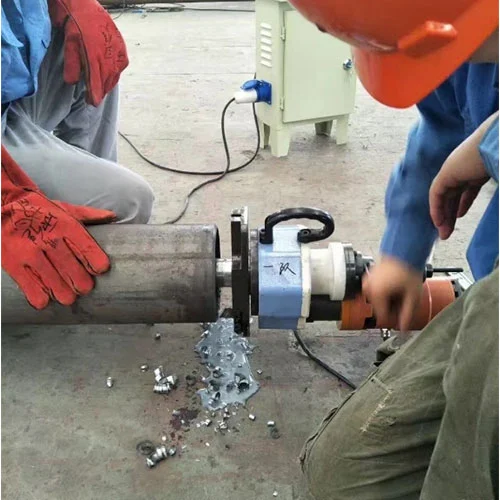

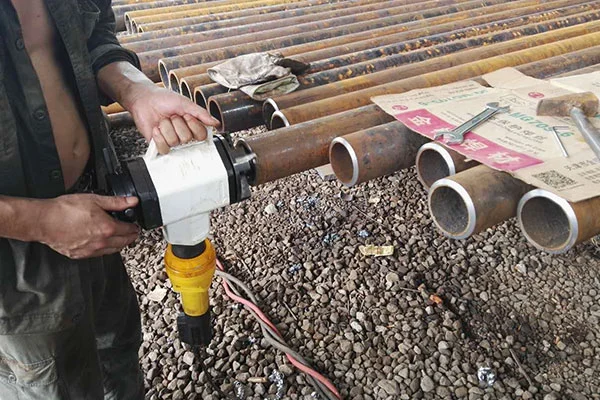

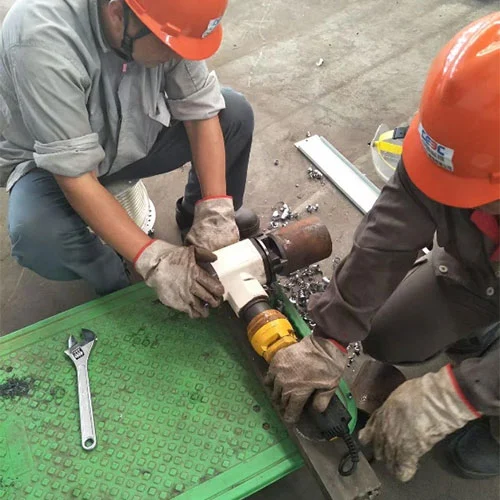

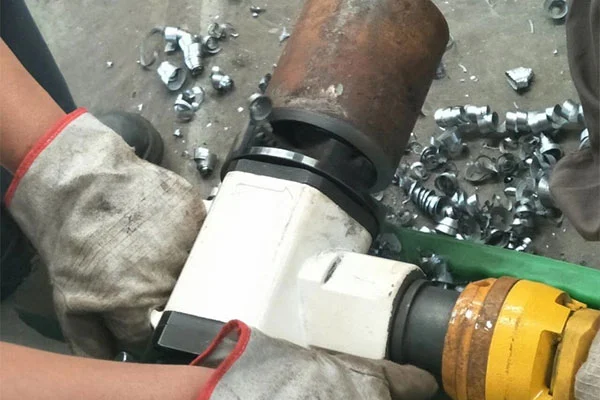

The ID mounted pipe end prep machine is designed to be lightweight, easy to transport and carry, and suitable for on-site operations of large diameter pipelines. The internal expansion clamping system secures workpieces effortlessly. Fast adjustment is achievable with only one size of wrench.
Pipe remains stationary while cutting tools rotate for beveling, ensuring high operational safety. Machined cuts are distortion free, burr free and consistently clean, perfectly suited for high grade welding requirements.
Multiple power options are available. Motor units with different voltages fit various regional conditions; engine driven versions support field operations without power supply.
Supports machining of diverse pipe materials: plastic, copper, brass, iron, carbon steel, aluminum, high grade steel, premium stainless steel and titanium.
| Item | Specification |
| Applicable groove type | V-type, I-type, U-type |
| Processing pipe diameter range | 65mm - 159mm |
| Max processing wall thickness | ≤15mm |
| Motor power | 1.5KW |
| Equipment weight | 25KG |
| Cutterhead speed | 35R/min |
| Axial feed depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Optional tool angle | 30°, 37.5°, 60°, 0°, 15° inner slope |
For the ID mounted pipe end prep machine (design, manufacturing) and its spare parts, in addition to the technical parameters and requirements specified in the specification, the latest editions of National Standards (GB), Industry Standards (JB, DL…), and International Standards (SI, ANSI, ASME, AWS, API, DIN, ISO) shall be followed. The standards applied for product design and manufacturing are listed below:
General Code for Construction and Acceptance of Mechanical Equipment Installation GB50231 98
Guidelines for Safety Design of Electrical Equipment GB4064 1983
Safety of Machinery — Electrical Equipment of Machines GB 5226.1 2002
Marking of Insulated Conductors GB4884 85
Code for Acceptance of Construction Quality of Steel Structures GB 50205 2002
Code for Design of Steel Structures GB 50017 2003
Manufacturing standard for process piping: ASTM B31.3
International Standards (SI, ANSI, AWS, API, DIN, ISO)
All supplied drawings and technical documents for the ID mounted pipe end prep machine shall conform to applicable international or national standards and specifications. SI (International System of Units) shall be used for all units in the machine’s equipment related software and drawings. All documentation shall be furnished in Chinese.
One hard copy set of complete documentation, together with one electronic copy.
Packing list (including spare parts and accessories supplied with the equipment)
Equipment operation manual, certificate of conformity, warranty certificate and operating procedures
Electrical schematics, terminal wiring diagrams, mechanical drawings, hydraulic schematics and foundation drawings of the equipment
Operation manuals and certificates of conformity for key outsourced components
A: This ID mounted pipe end prep machine can process multiple bevel forms such as V-type, I-type and U-type, which can fully meet the requirements of various welding processes and satisfy the beveling processing demands under different working conditions. The processing pipe diameter range of the equipment is 65-159mm, the maximum processing wall thickness can reach 15mm, and the rotating speed of the cutter head is 35R/min.
A: It adopts full cold working process without altering pipe material properties. Ratchet type manual feed delivers high efficiency and superior machining quality. The quick connect internal expansion structure enables fast mounting at any position along the pipeline.
A: It performs cutting and beveling on carbon steel, stainless steel, alloy steel and other metal pipes. It also enables safe and fast cutting for pipes, pressure vessels and steam generators of various specifications.
A: Widely used for pipe installation and emergency repair in oil, petrochemical, natural gas, food, boiler, pharmaceutical, nuclear power and venue construction industries. Lightweight and portable, it shows outstanding advantages for large diameter on site cutting.
