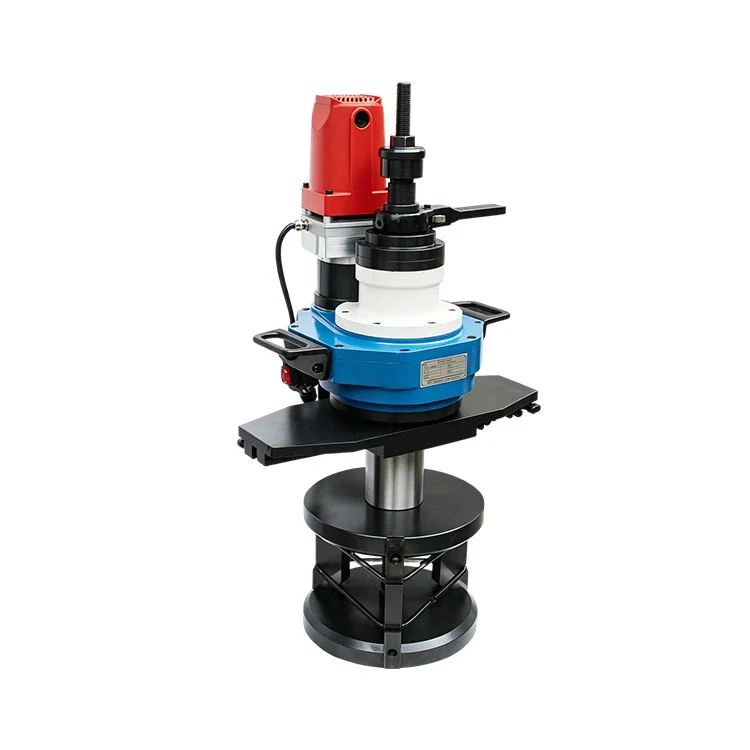

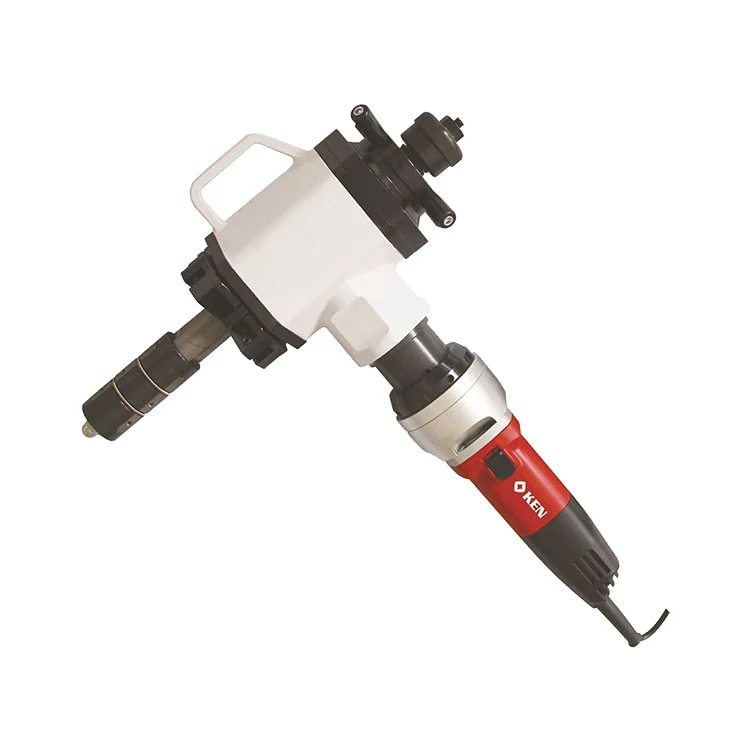

The ID mounted pipe beveler is a portable on-site processing device. It fits pipe diameters of 273-426 mm with wall thickness ≤15 mm. Featuring internal-expansion quick-insert plus outer-wall multi-point clamping, it enables fast clamping at any position on the pipeline with adjustment by a single wrench. Adopting ratchet-type manual feed and cold processing, it delivers deformation-free and burr-free cuts. It supports V/I/U-type bevels for pipe installation and emergency repair across multiple industries.

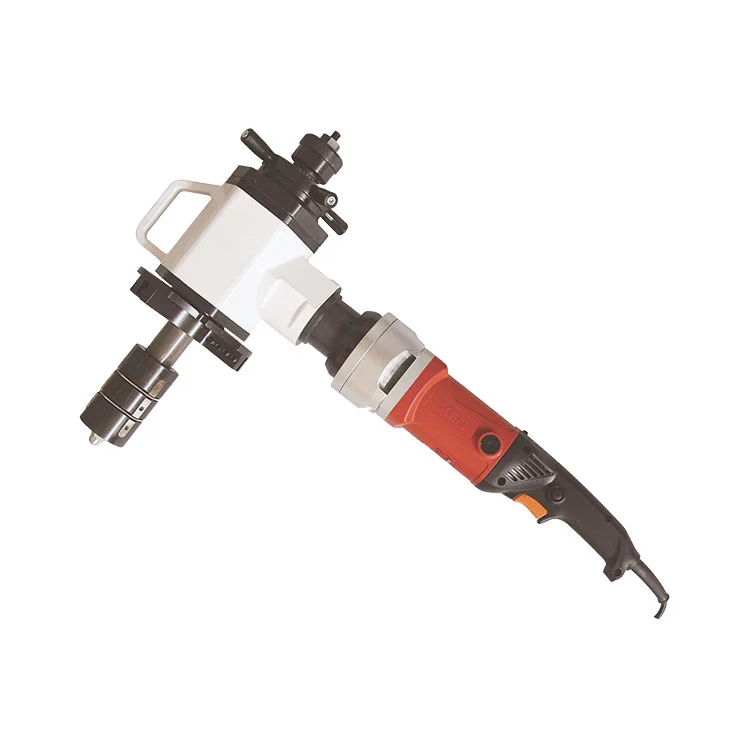

Featuring an internal-expansion quick-insert design combined with multi-point outer-wall clamping, the ID mounted pipe beveler enables rapid clamping at any position of the pipeline. Fastening components are easy to adjust with only one-size wrench required. Compact and lightweight, it delivers outstanding performance for on-site operations of large-diameter pipes.
Full cold processing keeps original pipe material properties. Ratchet-type manual feed delivers high-efficiency, high-quality results. Cutters rotate while pipe remains static for enhanced safety. It produces deformation-free, burr-free, clean cuts for high-grade welding. Custom bevels including U-bevel, single-V bevel and J-bevel are available. Machining range: 273-426 mm pipe diameter with flexible model selection.
Works with carbon steel, stainless steel, alloy steel, plastic, copper, brass, aluminum, titanium and more. It realizes safe and fast beveling for pipes, pressure vessels and steam generators. Multiple power options: multi-voltage motor or engine drive, supporting off-grid field operations.
Widely applied in petroleum, petrochemical, natural gas, food, boiler, pharmaceutical, nuclear power and venue-construction sectors for pipe installation and emergency repair projects.
| Item | Specification |
| Applicable groove type | V-type, I-type, U-type |
| Processing pipe diameter range | 273mm - 426mm |
| Max processing wall thickness | ≤15mm |
| Motor power | 1.8KW |
| Equipment weight | 75KG |
| Cutterhead speed | 14R/min |
| Axial feed depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Optional tool angle | 30°, 37.5°, 60°, 0°, 15° inner slope |
A: The ID mounted pipe beveler offers comprehensive bevel preparation capacity. It supports V-bevel, I-bevel and U-bevel to meet diverse welding-process requirements. It handles pipe diameters from 273mm to 426mm with a maximum wall thickness of ≤15mm. Designed for medium-diameter pipes, it delivers stable and precise cutting under normal wall-thickness conditions. Capable of beveling various pipes and workpieces, it features wide adaptability and reliable performance, providing an efficient and convenient beveling solution.
A: Equipped with ratchet-type manual feed with a controllable feed rate of 0.07-0.1mm and a stable clamping mechanism, the machine achieves high-precision cold processing. The finished cuts are deformation-free and burr-free with well-formed bevels and consistent dimensions, satisfying high-standard welding accuracy requirements for petroleum, nuclear power, pharmaceutical and other industries.

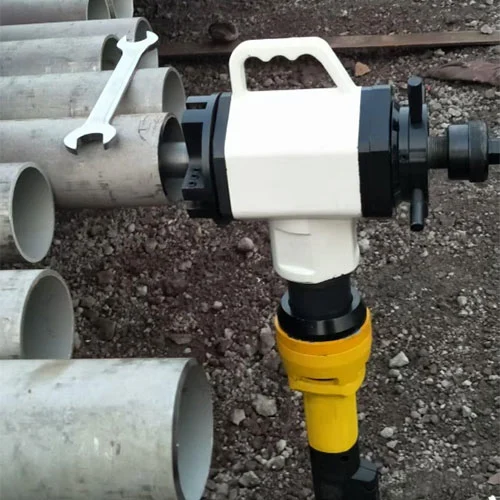

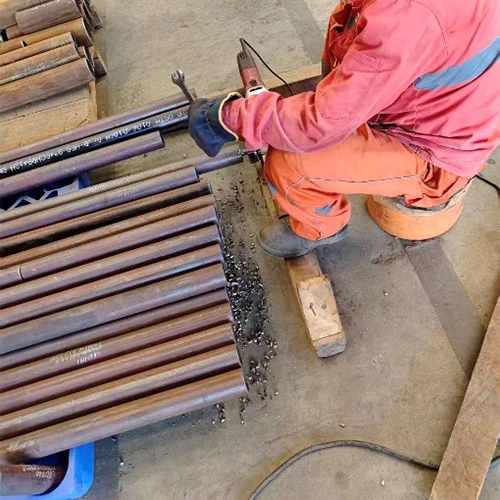

A: The unit mounts on the outer pipe wall with multi-point clamping. Fitted with an internal-expansion quick-insert structure, it can be installed at any position along the pipeline for quick and easy setup and removal.
A: Clear metal chips and debris after each use. Regularly apply grease to sliding, ratchet and internal-expansion components. Replace worn cutters promptly. Check tightness of bolts and clamping blocks before operation. Store the machine in a dry and well-ventilated place for rust protection. Do not operate beyond rated specifications or apply rough force.
1. Clean pipe end to remove welding slag, burrs and debris. Verify pipe diameter and wall thickness are within machine rated range.

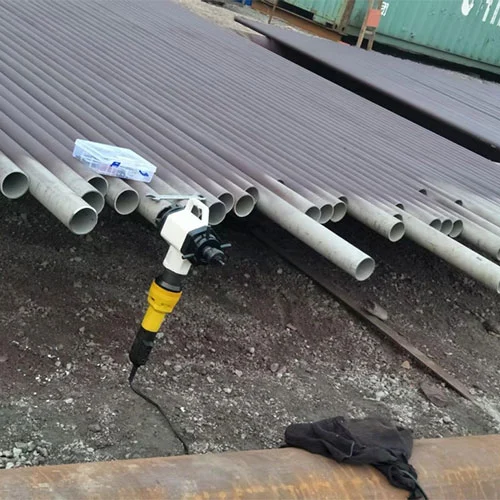

2. Place the ID mounted pipe beveler on pipe outer wall and position with internal-expansion quick-insert structure, then activate multi-point outer-wall clamping.
3. Tighten fasteners with supplied wrench to ensure firm clamping without play.
4. Retract ratchet feed unit to keep cutters away from pipe end face.
5. Switch on power for idle test run, check for abnormal noise or jamming.

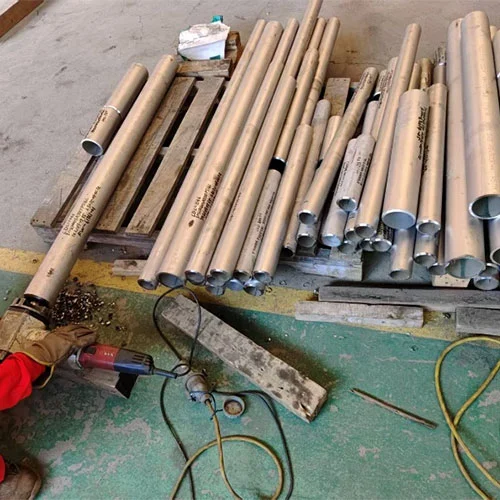

1. Keep pipe firmly secured; stay clear of rotating cutter disc during operation.
2. Apply ratchet-type manual feed with light cuts per pass, controllable feed rate: 0.07-0.1 mm.
3. Stop feeding once target bevel dimension is reached, then retract cutters from workpiece.
4. Cut off power source. After cutters stop completely, release clamping and remove machine.
1. The ID mounted pipe beveler adopts cold-processing principle: cutters rotate while pipe stays static. Reverse rotation is forbidden.
2. Never operate beyond rated diameter and wall thickness.
3. Remove metal chips after work and perform regular lubrication & maintenance.
