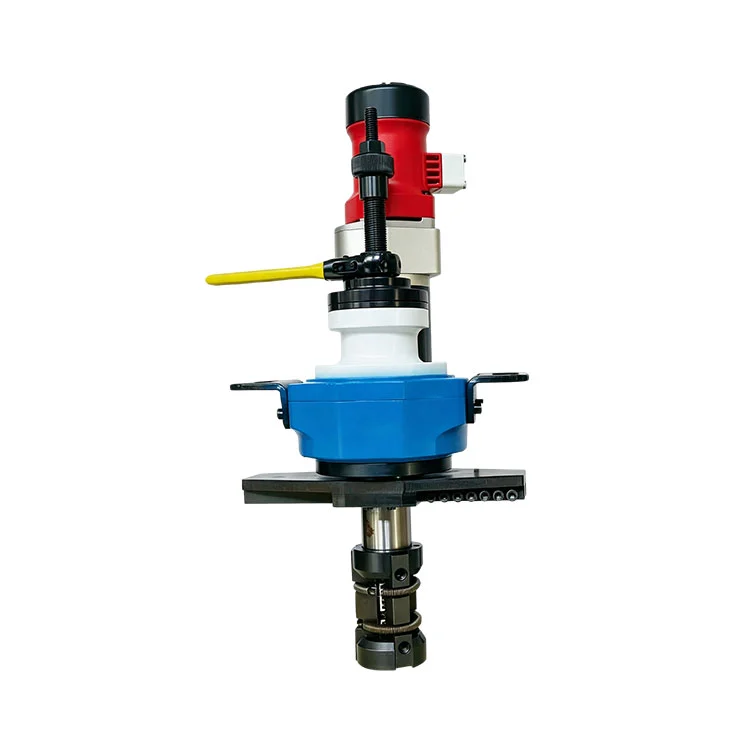

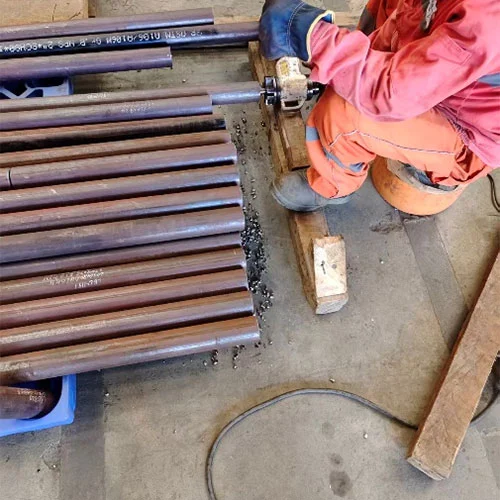

Developed from years of market insights and user feedback, this pipe end preparation machine internal clamp is compact and lightweight, ideal for on-site large-diameter pipe work. Machining range: 80-252 mm pipe diameter, with customizable options. Internal-expansion quick-insert design allows installation anywhere on pipeline; multi-point outer-wall clamping enables fast, easy operation.
Mounted with multi-point clamping on pipe outer wall. Full cold-working preserves original pipe material properties. Ratchet manual feed ensures high-efficiency and premium machining quality.

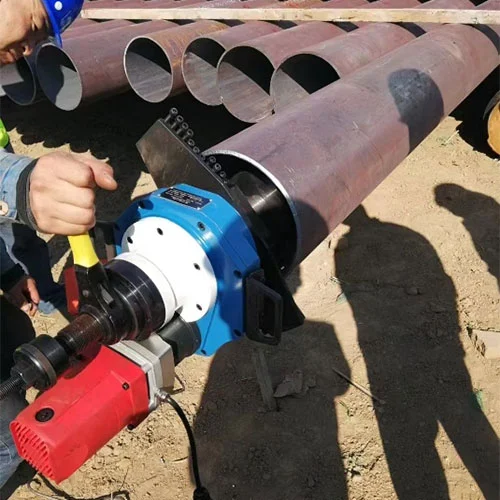

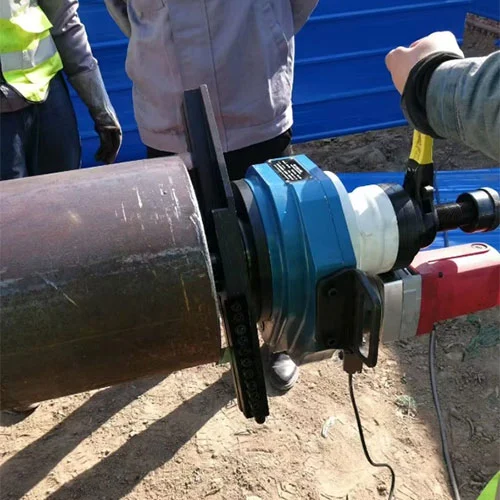

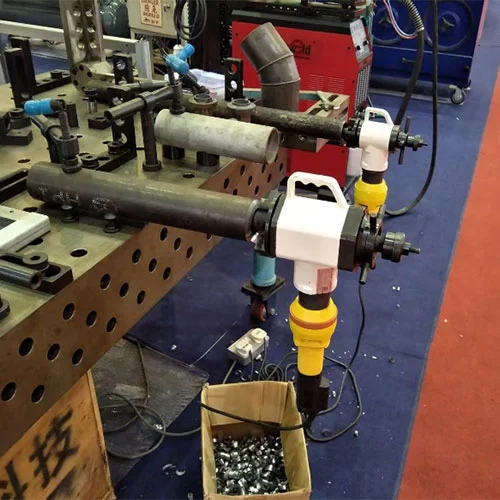

Quick-fit internal-expansion structure enables fast installation at any position along pipelines. This pipe end preparation machine internal clamp enables custom fabrication of multiple weld bevel profiles, including U-bevel, single-V bevel and J-bevel, catering to diverse customer machining specifications.
Covers pipe diameters from 80mm to 252mm with flexible model selection. It performs safe and rapid cutting & beveling for pipes, pressure vessels and steam generators of various specifications.
Compatible with carbon steel, stainless steel, alloy steel and other metal pipes. Widely deployed for pipe installation and emergency repair in petroleum, nuclear power, pharmaceutical, venue-construction and other sectors.
| Item | Specification |
| Applicable groove type | V-type, I-type, U-type |
| Processing pipe diameter range | 80mm - 252mm |
| Max processing wall thickness | ≤15mm |
| Motor power | 1.5KW |
| Equipment weight | 36KG |
| Cutterhead speed | 16R/min |
| Axial feed depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Optional tool angle | 30°, 37.5°, 60°, 0°, 15° inner slope |
1. The compressed air supplied to the pipe end preparation machine internal clamp must be dehydrated and filtered to prevent corrosion of machine components.
2. After each use, inject a small quantity of lubricant or anti-rust agent into the air inlet fitting and blow it into the machine with compressed air.
3. When inserting the beveling machine into the pipe for internal-expansion positioning, avoid collision between the cutting edge and the pipe to prevent blade damage.
4. When loosening the expansion handwheel to remove or reposition the machine inside the pipe, prevent the machine from sliding further into the pipe, which may cause blade-to-pipe impact and blade damage.
5. Rotate the feed handwheel slowly. Watch the contact condition between the cutting edge and uneven pipe surfaces to avoid tool damage caused by excessive feeding speed.
6. If the cutter head stalls during machining due to fast feeding or insufficient air pressure, shut off the air valve. Reverse the cutter head and feed handwheel to retract the cutting edge before resuming processing.
7. After 80 working hours of operation, apply lubricant and perform comprehensive inspection and adjustment of the machine.
A: This pipe end preparation machine internal clamp can process multiple bevel forms such as V-type, I-type and U-type, which can fully meet the requirements of various welding processes and satisfy the beveling processing demands under different working conditions. The processing pipe diameter range of the equipment is 80-252mm, the maximum processing wall thickness can reach 15mm, and the rotating speed of the cutter head is 16R/min.
A: Internal-expansion system clamps pipes firmly. Fastener adjustment only requires one size of wrench. High safety is achieved by rotating cutting tools against stationary pipes. Distortion-free, burr-free and clean cuts perfectly meet high-standard welding requirements. Multiple power options are available: variable-voltage motors or engine drive for field sites without power supply.
A: Suitable for plastic pipe, copper, brass, iron, carbon steel, aluminum, high-grade steel, premium stainless steel, titanium and more.
A: Lightweight and easy to carry, it shows outstanding performance for large-diameter on-site cutting. Multiple power solutions are available: different-voltage motors for various regions, or engine drive for off-grid outdoor sites. It is widely deployed in petroleum, petrochemical, natural gas, boiler, pharmaceutical, nuclear power and venue-construction industries for pipe installation and emergency maintenance.
● The pipe end preparation machine internal clamp is covered by a 12-month free warranty from the date of acceptance, implementing Xianjin Pipeline's long-standing service philosophy and operation-guarantee service commitment.
● In case of equipment failure within the warranty period, the Seller provides free technical consultation and maintenance services. Telephone reply shall be given within 2 hours for inquiries, and written reply within 8 hours. On-site service personnel will be dispatched as required: arrive on-site within 24 hours for distances under 800km, and within 48 hours for distances over 800km. Service staff will not leave the site until the fault is resolved and the customer is satisfied.
● After the warranty expires, telephone response will be made within 2 hours upon receipt of service notice. If the fault cannot be eliminated via telephone guidance, technicians will be dispatched to site for maintenance and troubleshooting in accordance with the above time limits.
