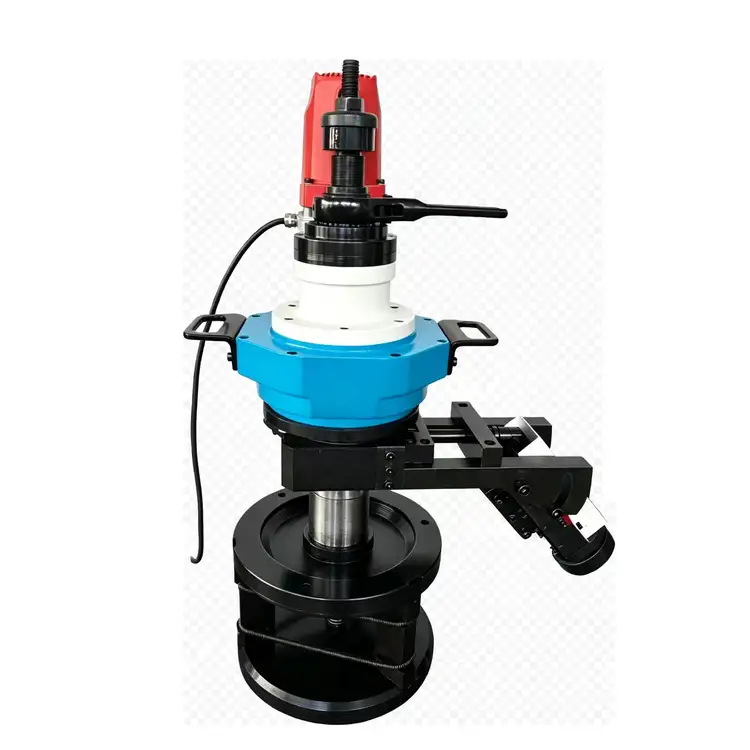

This internal accounting type beveling machine features a lightweight, portable design and offers unique advantages for on-site machining of large-diameter pipes. It supports V, I and U bevel profiles with a machining range of 300–600 mm and a cutter head speed of 10 rpm. Multiple power options are available: motors with suitable voltages for different regions and environments, or engine drive, to meet field operation requirements where mains power is unavailable.
Portable & Easy to Operate, Ideal for Various On-site Conditions

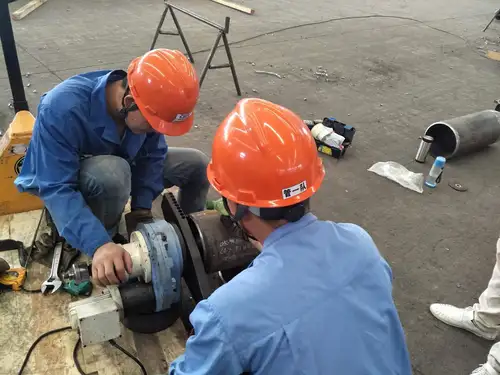

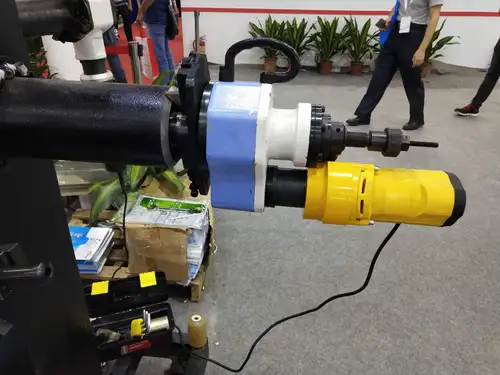

Lightweight and portable, this internal accounting type beveling machine delivers outstanding performance for on-site machining of large-diameter pipes. Featuring an internal expanding clamping mechanism, it can be adjusted and secured with a single wrench. Simple to operate, it is ideal for flexible on-site construction.

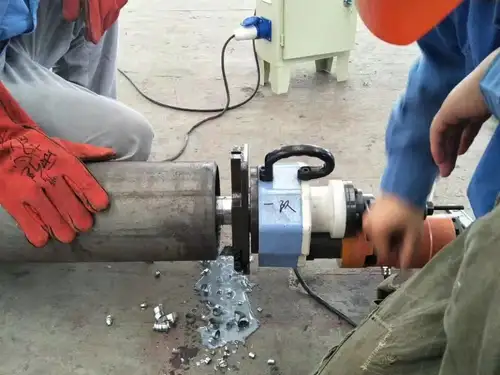

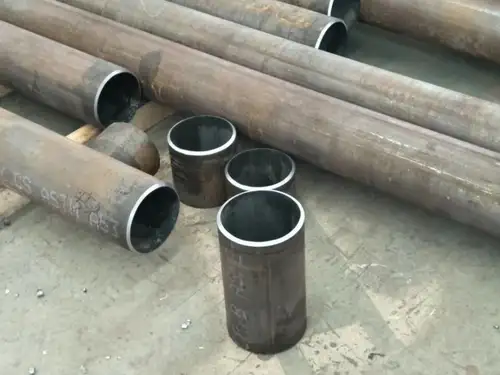

The cutter rotates while the pipe stays stationary, ensuring high operational safety. The bevel surface is deformation-free, burr-free and clean, suitable for working conditions requiring high-quality welding.
Diverse Power Options, Free from Power Supply Restrictions
A wide selection of power configurations is available. Motors of different voltages or engine-driven versions can be selected as required. It works reliably at field sites without electricity and adapts to various construction environments worldwide.
Wide Machining Range, Customizable Materials & Bevel Profiles
Compatible with plastic, copper, carbon steel, aluminum, stainless steel, titanium and other pipe materials. Supports custom V / I / U bevel profiles, covering pipe diameters from 300 mm to 600 mm for flexible model selection.
| Item | Specification |
| Applicable Bevel Type | V / I / U |
| Machining Range | 300-600mm |
| Max processing wall thickness | ≤75mm |
| Motor power | 1.8KW |
| Machine weight | 110KG |
| Packing Dimension | 850×650×320mm |
| Gross Packing Weight | 140KG |
| Cutter Head Speed | 10R/min |
| Axial Feed Depth | 50mm |
| Feed rate | 0.07-0.1mm |
| Bevel Angle | 0-45° |
Integrates R&D, design, production, sales and after-sales service. Supported by senior & intermediate technical staff, we continuously upgrade products and provide custom non-standard solutions.
Full range of mechanical cold cutting & beveling machines for pipes and plates. High-end servo-driven models gain wide recognition. Products serve aerospace, nuclear power, chemical, pharmaceutical and other pipeline industries.
Located in Yangtze River Delta. Plant area around 1000 ㎡, annual output of hundreds-units per model, sufficient spare-parts stock.
Products sold nationwide and exported to Russia, Malaysia, Singapore, Kazakhstan etc. With rich experience in pipeline installation & maintenance, we undertake on-site pipe cutting and beveling projects.
Xianjin Pipeline pursues continuous R&D innovation to enhance the stability, efficiency and automation of the Steel Plate Beveling Machine. It streamlines operation, enables automation and human-machine interaction, and eases operators’ heavy workload from conventional semi-automatic modes.
A: This internal accounting type beveling machine is suitable for pipes with an inner diameter of 300–600 mm and wall thickness ≤75 mm. Optimized for various pipe diameter conditions, it firmly locks the inner wall of the pipe by adjusting the expanding mechanism to guarantee stable machining for pipes of different sizes.
A: The machine is lightweight and portable. It can be locked by internal expansion inside the pipe. Adjustment of fastening components is simple, requiring only one wrench. It offers unique advantages for on-site machining of large-diameter pipes.
A: The pipe remains stationary during machining while the cutter rotates, ensuring high safety. The cut surface is non-deformable, burr-free and clean, which is ideal for applications requiring high welding quality.
A: Multiple power options are available. Motors with different voltages can be configured for different regions and working conditions, or an engine drive can be adopted. It can work normally at field sites without power supply.
Free Warranty Period: The internal accounting type beveling machine shall be 12 months from the date of acceptance.
Services within Warranty: Free technical consultation and repair shall be provided for equipment failure or damage. Response to inquiries: telephone reply within 2 hours, written reply within 8 hours. If on-site service is required, experienced engineers will be dispatched within 24 hours for locations within 800 km, or within 48 hours for locations over 800 km. Engineers shall remain on-site until the fault is rectified and customer satisfaction is achieved.
Services after Warranty Expiry: Telephone response within 2 hours upon receipt of service request. If the fault cannot be resolved via telephone guidance, engineers will be dispatched within 24 hours (within 800 km) or 48 hours (over 800 km) to provide on-site repair assistance.
The company adheres to its service philosophy and operation-support service commitment to resolve after-sales issues promptly and efficiently.
