Is the High Precision Bevel Cutting Machine the New Industry Benchmark for Fast, Zero-Commissioning Pipe Processing in Tight-Schedule Large-Scale Projects

For pipeline construction teams and heavy industry processing workshops that take on large-scale petrochemical, energy power and pharmaceutical engineering projects, long installation cycles of traditional pipe processing equipment, unstable feed accuracy and low processing efficiency have long been the main factors that delay the overall project delivery timeline. Conventional pipe beveling equipment often takes several days to weeks to complete on-site installation and professional commissioning, which cannot keep up with the fast-paced progress requirements of modern tight-schedule projects. As a leading professional pipe cutting and beveling equipment manufacturer in China, Xianjin Pipeline, together with China National Chemical Engineering No.16 Construction Co., Ltd. (CNCEC 16), have jointly developed the industry-leading High Precision Bevel Cutting Machine, a benchmark product that integrates more than 10 years of industry experience and massive customer feedback big data. This blog will comprehensively introduce the innovative design highlights, full technical parameters, strict performance advantages over domestic peer products, practical on-site construction conveniences and complete selection guidance of this equipment, showing how it can help construction teams reduce on-site construction time by 70% while achieving ±0.07mm ultra-high feed accuracy. You can access the full official product details page via the dedicated anchor link High Precision Bevel Cutting Machine to get more exclusive custom quotation and technical support information.

Table of Contents

• What Exactly Is the Xianjin High Precision Bevel Cutting Machine?
• 5 Standout Core Product Advantages of This Benchmark Pipe Processing Equipment
• Complete SME-II Series Model Selection and Technical Specification Reference
• 3 Key Innovative Structure Designs That Dramatically Improve On-Site Operation Convenience
• Performance Comparison: Xianjin High Precision Bevel Cutting Machine vs Domestic Peer Products
• Frequently Asked Questions

What Exactly Is the Xianjin High Precision Bevel Cutting Machine?

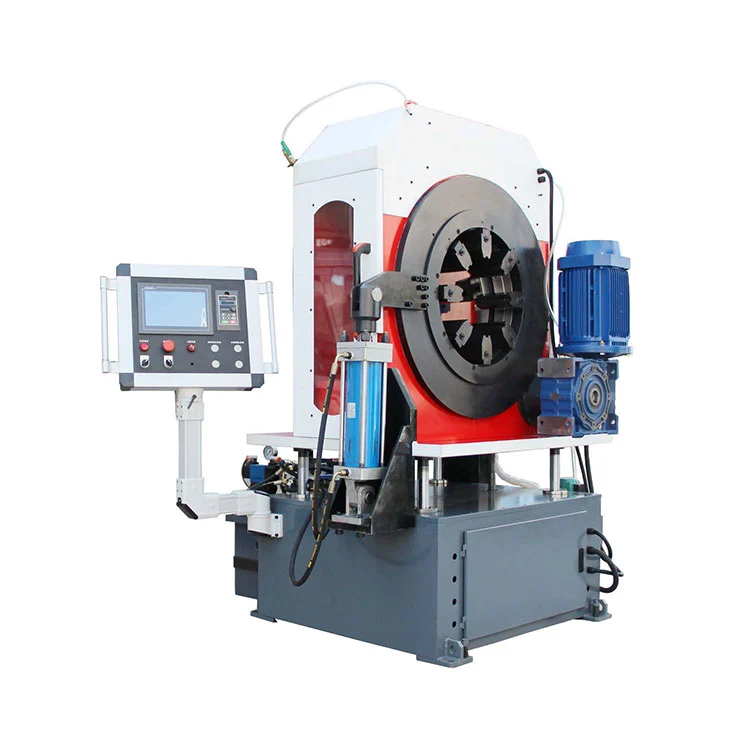

The SME-II series High Precision Bevel Cutting Machine jointly developed by Xianjin Pipeline and CNCEC 16 adopts an innovative integrated skid-mounted design and optimized frame structure, with all core components arranged in a highly compact layout. Different from traditional pipe processing equipment that requires several days to weeks of on-site installation and precise professional commissioning, this product has completed all high-precision assembly and calibration work at the factory before delivery, so general operators can complete on-site fast connection and commissioning within 1 hour. Equipped with 380V high-performance variable-frequency motor and precision CNC feed mechanism, the feed accuracy is controlled up to ±0.07mm, which can complete one-step cutting and beveling forming for medium and heavy wall pipes, and is widely applicable to more than ten industries including petrochemical, food & beverage, biomedicine and energy power. The series covers 7 different models, which can handle pipe diameters ranging from 30mm small bore to 914mm large diameter, with maximum machinable wall thickness up to 50mm, fully meeting the diverse pipe processing demands of almost all regular large-scale engineering projects.

5 Standout Core Product Advantages of This Benchmark Pipe Processing Equipment

Every design detail of this High Precision Bevel Cutting Machine is fully optimized based on 10+ years of actual project operation experience, forming unmatched core advantages that traditional pipe processing equipment cannot match:

• Integrated Skid Design, Safe & Efficient: The fully pre-assembled skid-mounted compact core layout supports 1-hour on-site fast assembly, perfectly fitting tight-cycle large projects. The ultra-low center of gravity design eliminates vibration and displacement, and the self-developed cam clamping system paired with intelligent control guarantees highly efficient machining.
• High Precision & High Speed, One-step Forming: Driven by 380V variable-frequency motor and precision CNC feed system, it achieves ±0.07mm ultra-high feeding accuracy. It only takes 3-5 minutes to process DN300 pipe, with a maximum processing capacity of 20 pieces per hour, which is 3 times faster than traditional machines. One-step cutting and beveling can obtain Ra12.5um burr-free surface, and the one-time processing qualification rate exceeds 99%.
• Wide Compatibility, Wear Resistant & Productive: Supported by constant-torque cutting technology, it can effortlessly process 304/316 stainless steel and alloy steel materials. It reduces tool wear by 30%, completely removes the need for subsequent manual polishing procedures, and improves single-shift productivity by 50% compared with traditional solutions.
• Energy Saving, Cost Reduction & Easy Operation: The variable-frequency speed regulation system reduces energy consumption by over 25% to realize low-carbon production. The intelligent touch panel with built-in preset processing parameters is extremely user-friendly, new operators can work fully independently after only 30 minutes of training, significantly reducing labor cost and operation threshold.
• Rich Integrated Practical Functions: The equipment is equipped with multiple practical built-in functions including automatic multi-jaw double-side clamping, automatic feed and retract, circulating water cooling, main unit automatic lifting, main unit variable frequency speed regulation, simultaneous cutting and beveling, hydraulic clamping, double-side viewable safety door, laser tool setting and pneumatic automatic material tilting, all of which greatly improve the automation level of pipe processing.

Complete SME-II Series Model Selection and Technical Specification Reference

Xianjin has designed 7 different standard models of the High Precision Bevel Cutting Machine, which can freely cover all regular pipe diameter processing ranges in common engineering projects, and the detailed reference parameters are shown in the table below:

3 Key Innovative Structure Designs That Dramatically Improve On-Site Operation Convenience

The three original structure patents on this High Precision Bevel Cutting Machine completely overturn the pain points of traditional equipment in complex site construction scenarios, bringing unprecedented safety and efficiency improvement for field teams:

1. Suspended Low-center Design: The pipe passing center height remains in a standardized fixed range, even for pipes from 30mm to 630mm different diameters, the center height will not change during processing, completely eliminating the height shift problem that plagues traditional machines. This design raises the pipe handling efficiency by 70%, and the machine's center of gravity is 40% lower than traditional equipment, reducing the overturning risk caused by uneven ground or eccentric pipe loads by 60%.
2. 4-Post Slider Stabilization System: Symmetric four-post slider structure paired with high-precision linear guides makes the lateral swing of the equipment during operation ≤0.2mm. The overall stability is 60% higher than that of conventional two-post designs. Even when processing large-diameter thick-walled pipes, the bevel accuracy can still reach ±1°, effectively suppressing the impact of vibration on pipes and guaranteeing safe site operation.
3. Zero-Collision Transport Safety Architecture: The uniform ultra-low center height completely removes the need for height adjustment for different pipe sizes, operators can use forklifts and overhead cranes to move equipment and materials along fixed paths, avoiding pipe collision and falling risks caused by height differences, preventing struck-by accidents and maximizing the protection of on-site personnel and equipment safety.

Performance Comparison: Xianjin High Precision Bevel Cutting Machine vs Domestic Peer Products

Compared with other common similar products on the domestic market, Xianjin's High Precision Bevel Cutting Machine has full-scene leading performance in almost all key dimensions: For the feed mode, Xianjin adopts fully pneumatic automatic feed and retract, while peer products mostly use automatic feed with manual retract which has cumbersome operation and low efficiency. For the clamping system, Xianjin uses cam synchronous clamping which is not easily jammed by iron chips, while peers use wire disc synchronous clamping that often jams. For tool mounting system, Xianjin uses quick-shift tool post that can change different diameter pipes without disassembly, while peer products need to reinstall the whole tool post assembly when changing pipe diameter, which is very troublesome. For surface coating, Xianjin uses full sheet metal parts with powder coating that is more durable, while peers usually adopt ordinary spray paint that is easy to peel off after long-term use.

Frequently Asked Questions

We have collected and sorted out the most common questions from global pipeline engineering clients about the High Precision Bevel Cutting Machine, to help you solve all possible doubts before purchase and deployment:

Q1: How does the integrated skid-mounted design reduce construction time on site?
A: All modules including main machine, piping and control system are fully assembled and precisely calibrated at the factory. After delivery, you only need to fix the skid base and connect external pipelines, no complex leveling or professional commissioning work is needed, cutting total construction time by 70% and improving accuracy by 90%.

Q2: How long will it take to train a new operator to use this machine independently?
A: The equipment is equipped with an intelligent touch panel with pre-set standard processing parameters, new operators can master full operation skills and work fully independently only after 30 minutes of training, without needing long-term professional technical learning.

Q3: What is the maximum processing thickness that this series of machines can support?
A: All 7 models of the SME-II series can support a maximum machinable wall thickness up to 50mm, which can meet the heavy wall pipe processing demands of most regular industrial projects.

Q4: What kind of pipe bevel profiles can this equipment finish forming?
A: The machine supports multiple bevel profiles including V, I, U, Single V (30°V as standard), Double V, meeting the diverse bevel processing requirements of different welding process specifications on site.
